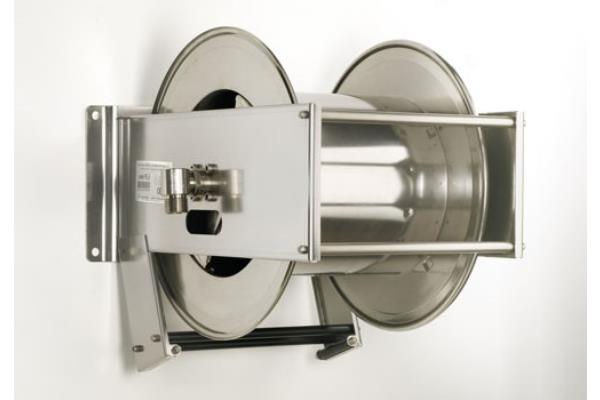

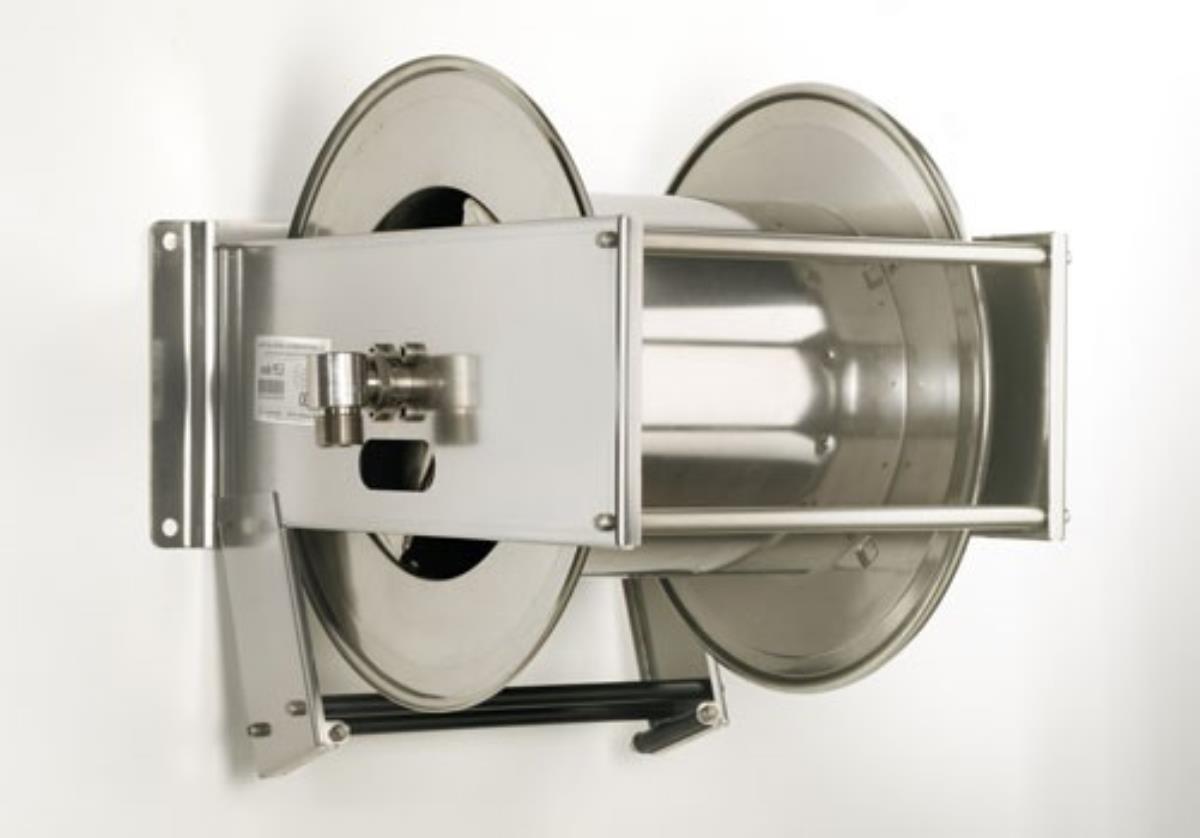

Heavy series automatic hose reel in stainless steel



Download sheet in pdf format
Heavy series AISI 304 stainless steel hose reel
suitable for use at distances of up to 30m with 3/4" hose,
or 25m hose reel with 1" hose.

This version is supplied with a double tension spring system.

The hose reel is supplied as standard without a hose.
Passage fluids: for oil, antifreeze, diesel, air and water at low and high pressure.

On request version with brake-spring kit.













Pressure
maximum
Cafe
IN-OUT connections Useful joint hole diameter
tube
Maximum
tube length
3/4"-1"
Weight
Width band
Dimensions
(LPH)
Cafe inch mm inch meters Kg mm mm
100 M1"-F1" 20 1" 12 - 8 21 150 295x530x450
100 M1"-F1" 20 1" 6pm - 3pm 24 300 440x530x450
100 M1"-F1" 20 1" 30 - 25 36 400 540x530x450
