STEAM HOSE - 7 bar
ONLINE CATALOGUE › HOSES › Steam hoses
Download sheet in pdf format

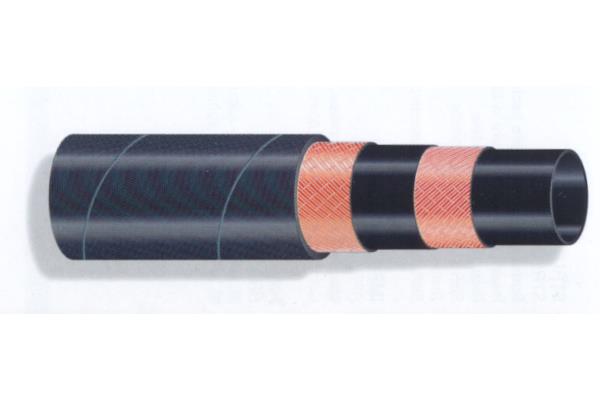

Black rubber hose for the passage of saturated steam up to 7 bar operation.
Structure: heat-resistant EPDM synthetic rubber, synthetic textile reinforcements resistant to aging and atmospheric agents.
Appearance: smooth black exterior with canvas impression, smooth black interior.
Hose suitable for the passage of saturated steam, for industrial cleaning.
Operating temperature: -40° +170° C continuous.
Pressure: 7 bar operating, burst 70 bar.
Structure: heat-resistant EPDM synthetic rubber, synthetic textile reinforcements resistant to aging and atmospheric agents.
Appearance: smooth black exterior with canvas impression, smooth black interior.
Hose suitable for the passage of saturated steam, for industrial cleaning.
Operating temperature: -40° +170° C continuous.
Pressure: 7 bar operating, burst 70 bar.
| Code | Dimensions mm |
|---|---|
| 09GVAP006/018 T | 6x18 |
| 09GVAP010/021 T | 10x21 |
| 09GVAP012/023 T | 12x23 |
| 09GVAP015/026 T | 15x26 |
| 09GVAP016/028 T | 16x28 |
| 09GVAP019/031 T | 19x31 |
| 09GVAP020/034 T | 20x34 |
| 09GVAP025/037 T | 25x37 |
| 09GVAP030/045 T | 30x45 |
| 09GVAP032/047 T | 32x47 |
| 09GVAP035/050 T | 35x50 |
| 09GVAP038/052 T | 38x52 |
| 09GVAP040/056 T | 40x54 |
| 09GVAP045/064 T | 45x64 |
| 09GVAP050/067 T | 50x67 |
| 09GVAP060/082 T | 60x82 |
| 09GVAP090/114 T | 90x114 |
