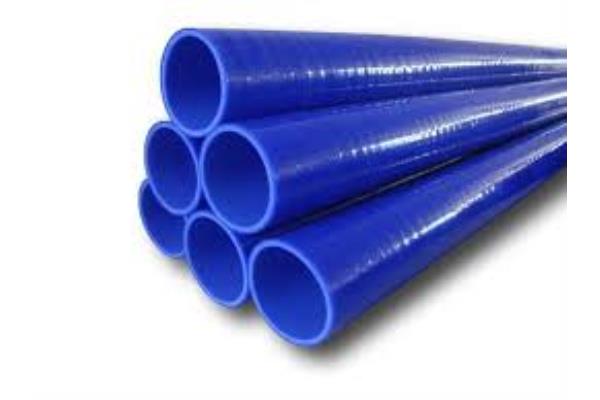

STANDARD SILICONE HOSE 180 C blue



Download sheet in pdf format
STANDARD blue silicone hoses (other colors on request) with multiple textile braids incorporated - standard length 1 metre.

APPLICATION
:

linear tubes usable in pressurized air conditioning systems for civil and industrial vehicles, cogeneration units, marine engines, transport of high temperature fluids. It can be used both in vehicles and in the industrial sector, its use is indicated in cooling and heating systems on buses, trucks and industrial vehicles, refrigeration systems of cogeneration units and marine engines.

PROPERTIES :
Ideal for use at high temperatures between -60° and 180°C (peaks of 200ºC for short periods of time).

- Resistance to antifreezes and antirusts.
- High resistance to ozone.
- High resistance to hardening with excellent compression characteristics.
- Excellent flexibility during the assembly process.
- Excellent resistance to thermal aging and oxidizing agents (oxygen, ozone, UV rays).

CONSTRUCTION :
The construction material is VMQ (Vinyl-Methyl-Quality) silicone rubber, STANDARD BLUE color, other colors on request.
-This product is made with three or four polyester reinforcements.
-The standard production length is 1 or 4 m (13.12"), but other lengths are also available upon customer request.

LIMITATIONS:
compliance with the declared values, not suitable for the continuous passage and storage of hydrocarbons (even if resistant to traces of oil and diesel). It is not suitable for use at high depression, nor for the transport of abrasive powders. This type of hose is not suitable for negative pressure (vacuum) applications. The operating pressure and breaking load were determined through pressure tests in accordance with ISO 1402/2009.


CERTIFICATES (to be requested during the offer phase)
- Meets or exceeds operating requirements of SAE J20 R1 Class A.
- Silicone rubber used is in accordance with EU Directive 2002/95/ECC for Restriction of the use of hazardous substances (RoHS).
- The silicone for this hose is classified as M1 according to UNE 23.727-90 standard and as F2 according to NF F 16-101.
- The burning, smoke and dripping class of this reference is S-3, SR-2 and ST-2 accoding to DIN 54837:2007 test standard and DIN 5510-2:2009 classification standard - DIN 5510-2 'Fire tests for railway components'.

AVAILABLE DIAMETERS: from Ø 6 to Ø 152 (1/4" -6")
AVAILABLE PACKAGES: in 1 meter or 4 meter bars

10SILISHL0006 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 6
10SILISHL0008 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 8
10SILISHL0010 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 10
10SILISHL0012 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 12
10SILISHL0013 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 13
10SILISHL0016 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 16
10SILISHL0019 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 19
10SILISHL0020 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 20
10SILISHL0022 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 22
10SILISHL0025 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 25
10SILISHL0028 SILICONE HOSE 180°C blue - 1m - 3 plies Ø 28
10SILISHL0030 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 30
10SILISHL0032 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 32
10SILISHL0035 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 35
10SILISHL0038 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 38
10SILISHL0040 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 40
10SILISHL0042 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 42
10SILISHL0045 SILICONE HOSE 180°C blue - 1m - 3 wires Ø 45
10SILISHL0048 SILICONE HOSE 180°C blue - 1m - 4 sheets Ø 48
10SILISHL0051 SILICONE HOSE 180°C blue - 1m - 4 wires Ø 51
10SILISHL0055 SILICONE HOSE 180°C blue - 1m - 4 sheets Ø 55
10SILISHL0057 SILICONE HOSE 180°C blue - 1m - 4 wires Ø 57
10SILISHL0060 SILICONE HOSE 180°C blue - 1m - 4 sheets Ø 60
10SILISHL0063 SILICONE HOSE 180°C blue - 1m - 4 wires Ø 63
10SILISHL0065 SILICONE HOSE 180°C blue - 1m - 4 sheets Ø 65
10SILISHL0070 SILICONE HOSE 180°C blue - 1m - 4 sheets Ø 70
10SILISHL0075 SILICONE HOSE 180°C blue - 1m - 4 wires Ø 75
10SILISHL0080 SILICONE HOSE 180°C blue - 1m - 4 sheets Ø 80
10SILISHL0083 SILICONE HOSE 180°C blue - 1m - 4 wires Ø 83
10SILISHL0090 SILICONE HOSE 180°C blue - 1m - 4 sheets Ø 90
10SILISHL0100 SILICONE HOSE 180°C blue - 1m - 4 sheets Ø 100
10SILISHL0114 SILICONE HOSE 180°C blue - 1m - 4 wires Ø 114
10SILISHL0127 SILICONE HOSE 180°C blue - 1m - 4 wires Ø 127
10SILISHL0152 SILICONE HOSE 180°C blue - 1m - 4 sheets Ø 152
