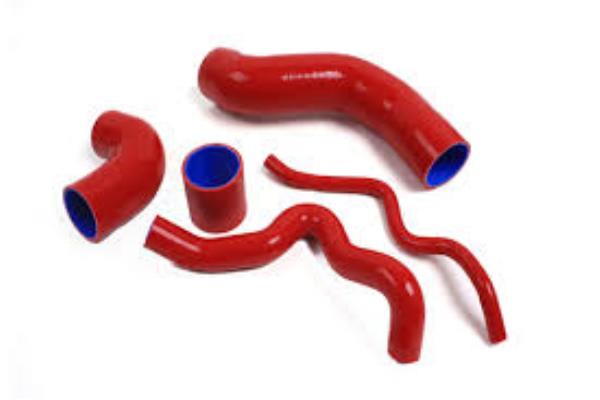

SILTURBO PIPE FVMQ-NMX 200 C red
ONLINE CATALOGUE › HOSES › Specific flexible hoses for engine test rooms
Download sheet in pdf format
APPLICATION :
linear or curved pipes usable in civil and industrial vehicle air conditioning systems, cogeneration units, marine engines, transport of high temperature fluids
PROPERTIES :
smooth in appearance externally and internally, not corruptible by antifreeze liquids or rust. Excellent resistance to pressure, thermal aging and oxidizing agents (oxygen, ozone and UV rays). Resistant to hardening the tube is resistant to compressive forces. Ideal for use at high temperatures between -60° and 200°C, it can reach temperatures up to 220°C for short periods of time.
CONSTRUCTION :
-EXTERNAL material of VMQ (Vinyl-Methyl-Quality) silicone rubber construction compliant with EU directive 2002/95/ECC for the limitation of the use of dangerous substances (RoHS).
-INNER internal material of F VMQ (Fluor-Vinyl-Metilic-Quality) silicone rubber construction
-structure reinforced with triple or quadruple layer of ARAMID fiber fabric (NOMEX type)
- production standard is 4 meters but it can be produced both with shorter lengths (3,2,1 metre) and in shaped form in curves and curved or reduced sleeves.
-BRICK RED COLOR
-Wall thickness 3.70mm - tolerance +1/-0.5mm.
LIMITATIONS:
Respect for the declared values!
The pipes, although resistant to traces of oil and diesel, are not suitable for the continuous transfer or storage of hydrocarbons.
They are not suitable for use at high vacuum or for the transport of abrasive powders.
linear or curved pipes usable in civil and industrial vehicle air conditioning systems, cogeneration units, marine engines, transport of high temperature fluids
PROPERTIES :
smooth in appearance externally and internally, not corruptible by antifreeze liquids or rust. Excellent resistance to pressure, thermal aging and oxidizing agents (oxygen, ozone and UV rays). Resistant to hardening the tube is resistant to compressive forces. Ideal for use at high temperatures between -60° and 200°C, it can reach temperatures up to 220°C for short periods of time.
CONSTRUCTION :
-EXTERNAL material of VMQ (Vinyl-Methyl-Quality) silicone rubber construction compliant with EU directive 2002/95/ECC for the limitation of the use of dangerous substances (RoHS).
-INNER internal material of F VMQ (Fluor-Vinyl-Metilic-Quality) silicone rubber construction
-structure reinforced with triple or quadruple layer of ARAMID fiber fabric (NOMEX type)
- production standard is 4 meters but it can be produced both with shorter lengths (3,2,1 metre) and in shaped form in curves and curved or reduced sleeves.
-BRICK RED COLOR
-Wall thickness 3.70mm - tolerance +1/-0.5mm.
LIMITATIONS:
Respect for the declared values!
The pipes, although resistant to traces of oil and diesel, are not suitable for the continuous transfer or storage of hydrocarbons.
They are not suitable for use at high vacuum or for the transport of abrasive powders.
| CODE | DESCRIPTION |
| 10SILITRB000006-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 6 |
| 10SILITRB000008 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 8 |
| 10SILITRB000008-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 8 |
| 10SILITRB000010 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 10 |
| 10SILITRB000010-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 10 |
| 10SILITRB000013 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 13 |
| 10SILITRB000013-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 13 |
| 10SILITRB000016 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 16 |
| 10SILITRB000016-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 16 |
| 10SILITRB000018 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 18 |
| 10SILITRB000018-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 18 |
| 10SILITRB000022 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 22 |
| 10SILITRB000022-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 22 |
| 10SILITRB000025 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 25 |
| 10SILITRB000025-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 25 |
| 10SILITRB000028 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 28 |
| 10SILITRB000028-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 28 |
| 10SILITRB000030 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 30 |
| 10SILITRB000030-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 30 |
| 10SILITRB000032 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 32 |
| 10SILITRB000032-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 32 |
| 10SILITRB000035 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 35 |
| 10SILITRB000035-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 35 |
| 10SILITRB000038 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 38 |
| 10SILITRB000038-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 38 |
| 10SILITRB000040 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 40 |
| 10SILITRB000040-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 40 |
| 10SILITRB000042 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 42 |
| 10SILITRB000042-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 42 |
| 10SILITRB000045 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 45 |
| 10SILITRB000045-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 45 |
| 10SILITRB000048 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 48 |
| 10SILITRB000048-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 48 |
| 10SILITRB000050 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 50 |
| 10SILITRB000050-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 50 |
| 10SILITRB000055 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 55 |
| 10SILITRB000055-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 55 |
| 10SILITRB000057 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 57 |
| 10SILITRB000057-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 57 |
| 10SILITRB000060 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 60 |
| 10SILITRB000060-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 60 |
| 10SILITRB000063 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 63 |
| 10SILITRB000063-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 63 |
| 10SILITRB000065 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 65 |
| 10SILITRB000065-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 65 |
| 10SILITRB000070 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 70 |
| 10SILITRB000070-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 70 |
| 10SILITRB000075 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 75 |
| 10SILITRB000075-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 75 |
| 10SILITRB000080 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 80 |
| 10SILITRB000080-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 80 |
| 10SILITRB000085 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 85 |
| 10SILITRB000085-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 85 |
| 10SILITRB000090 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 90 |
| 10SILITRB000090-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 90 |
| 10SILITRB000095 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 95 |
| 10SILITRB000095-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 95 |
| 10SILITRB000100 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 100 |
| 10SILITRB000100-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 100 |
| 10SILITRB000110 | SILTURBO HOSE FVMQ/NMX 200°C red - 3 TELE - 1m - Ø 110 |
| 10SILITRB000110-4 | SILTURBO HOSE FVMQ/NMX 200°C red - 4 TELE - 1m - Ø 110 |
