SILICONE SLEEVES FOR MARINE ENGINE EXHAUST 500



Download sheet in pdf format
Code: 500

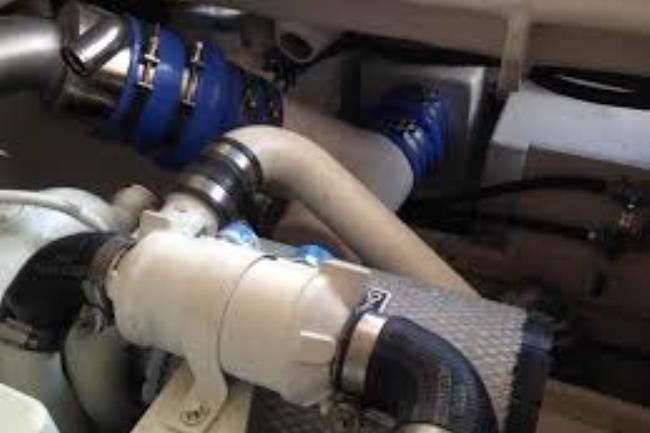

Silicone sleeves recommended for marine use as an anti-vibration connection of COMBUSTED AND WET gas exhaust systems FOR VESSELS OVER 24 METERS from the engine exhaust manifold to the hull or to marine exhaust fittings.

Construction: VMQ Silicone

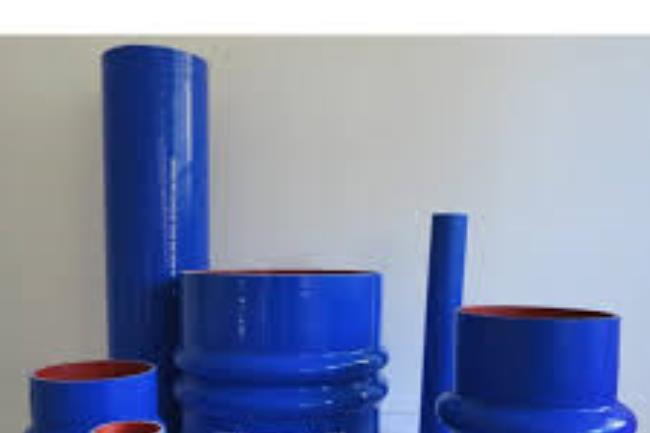

External appearance: Smooth blue color or with one or more corrugations on request.
Reinforcement: several layers of polyester fabric. Steel spiral (for type R2 tubes).

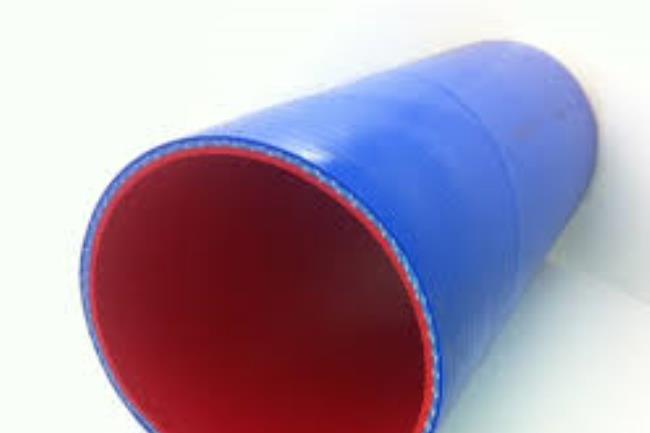

Internal appearance: smooth and red.
Operating temperature: -55° +180°C
Length: proportional to the diameter or upon customer request

Certifications upon prior request during the offer phase. This product can have on request the type approval certificate (TAC) number 12/00066 issued by Lloyd's Register which certifies compliance with SAE J2006 for the three styles R1, R2 and R3 classification in SAE J2006-ISO 13363 for silicone parts used in the marine wet waste system.

R1 refers to tubes with textile reinforcement only
R2 refers to hoses with textile reinforcement and steel spiral
R3 refers to custom pipes such as bends, reductions or special shapes with reinforcements

STRAIGHT PIPES L.1000mm
Internal diameter Wall thickness
mm mm
127 8
152 7
168 8
205 8
220 8
254 8
256 8
270 8
305 8
323 8
355 8
406 8

SLEEVES WITH SINGLE WAVE
Øi int.xLength. extermity Wall thickness
mm mm mm
48x130 46 5
51x152 60 6
54x150 70 6
76x180 70 6
89x200 70 6
102x200 70 7
108x200 70 7
114x200 70 8
128x200 70 8
133x200 75 8
140x200 95 8
152x200 115 8
168x200 115 8
205x250 115 8
220x300 115 8
254x300 115 8
270x300 115 8
305x300 115 8
325x300 115 8
355x300 115 8
406x400 165 8

SLEEVES WITH
DOUBLE WAVE
Ø internal
x Length
smooth ends Thickness
wall
mm mm mm
152x355 125 8
205x355 125 8
220x355 125 8
254x355 125 8
305x355 125 8
355x355 125 8
406x355 125 8
508x300 97.5 8
508X350 122.5 8
508X470 182.5 8
