SILICONE SLEEVE SIL FR - V0 FIREPROOF 200 C
ONLINE CATALOGUE › HOSES › Specific flexible hoses for engine test rooms
Download sheet in pdf format
Fireproof silicone hose according to UL-94
applications
This reference is recommended for its use in cooling and heating systems of any type of diesel or electric vehicles (buses, trucks, trains ...). It is also recommended for cooling systems in any type of engine or any electrical and electronic device. This reference is made with Aramid fabric reinforcements. The silicone rubber compound is a special formulation that remains stable and immobile when fire is applied; it does not drip and does not emit fumes.
Property
- Not affected by anti-freeze or anti-rust liquids.
- Highly resistant to hardening with excellent compression characteristics.
- Excellent flexibility during the assembly process.

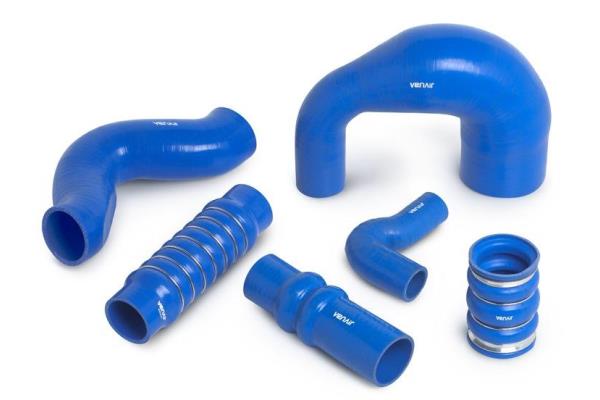

- Smooth internal and external appearance and blue color. Upon request, it can also be supplied in other colors (red, green, black...).
- Excellent resistance to thermal aging and oxidizing agents (oxygen, ozone, UV).
- Operating temperature range -60°C (-75 F) to +200°C (392 F), can
reach up to 220°C (428F) during short periods of time.
- The standard production length is 4 meters (13.12 ft), even if it is
Available in shorter lengths if required.
- Manufactured with internal diameters between 6 mm and 100 mm, in straight lengths from 1 to 4 m (13.12 ft), elbows or any special shape required.
Construction
This reference is produced with three, four or five aramid fabric reinforcements.
limitations
Respects work pressure stability values. Diesel and oil stains do not damage hoses, but they should not be used to transport fuel or oil, nor be immersed in these liquids. This type of tube is not recommended
for negative pressure (vacuum) applications. This product is not recommended for transporting abrasive particles.
legislation
- This reference is classified as V0 by the UL-94 flammability specification (flame retardant and self-extinguishing).
- The silicone rubber used is in compliance with the EU Directive 2002/95 / ECC for the restriction of the use of hazardous substances (RoHS).
Technical specifications
Straight tubes with 3 aramid reinforcements (Vena® Sil 200):
Straight tubes with 4 aramid reinforcements (Vena® Sil 200):
applications
This reference is recommended for its use in cooling and heating systems of any type of diesel or electric vehicles (buses, trucks, trains ...). It is also recommended for cooling systems in any type of engine or any electrical and electronic device. This reference is made with Aramid fabric reinforcements. The silicone rubber compound is a special formulation that remains stable and immobile when fire is applied; it does not drip and does not emit fumes.
Property
- Not affected by anti-freeze or anti-rust liquids.
- Highly resistant to hardening with excellent compression characteristics.
- Excellent flexibility during the assembly process.
- Smooth internal and external appearance and blue color. Upon request, it can also be supplied in other colors (red, green, black...).
- Excellent resistance to thermal aging and oxidizing agents (oxygen, ozone, UV).
- Operating temperature range -60°C (-75 F) to +200°C (392 F), can
reach up to 220°C (428F) during short periods of time.
- The standard production length is 4 meters (13.12 ft), even if it is
Available in shorter lengths if required.
- Manufactured with internal diameters between 6 mm and 100 mm, in straight lengths from 1 to 4 m (13.12 ft), elbows or any special shape required.
Construction
This reference is produced with three, four or five aramid fabric reinforcements.
limitations
Respects work pressure stability values. Diesel and oil stains do not damage hoses, but they should not be used to transport fuel or oil, nor be immersed in these liquids. This type of tube is not recommended
for negative pressure (vacuum) applications. This product is not recommended for transporting abrasive particles.
legislation
- This reference is classified as V0 by the UL-94 flammability specification (flame retardant and self-extinguishing).
- The silicone rubber used is in compliance with the EU Directive 2002/95 / ECC for the restriction of the use of hazardous substances (RoHS).
Technical specifications
Straight tubes with 3 aramid reinforcements (Vena® Sil 200):
| Diameter internal | Thickness of wall | Operating pressure ISO1402/2009 | Burst pressure ISO1402/2009 |
| mm | mm | Bar at 20°C | Bar at 20°C |
| 18 | 3.70 | 13.4 | 40.3 |
| 25 | 3.70 | 8.4 | 25.3 |
| 35 | 3.70 | 5.5 | 16.2 |
| 38 | 3.70 | 4.6 | 13.7 |
| 48 | 3.70 | 4.1 | 12.3 |
| 60 | 3.70 | 3.5 | 10.6 |
| 65 | 3.70 | 3.3 | 9.9 |
| 70 | 3.70 | 3.1 | 9.2 |
| 75 | 3.70 | 2.8 | 8.4 |
| 80 | 3.70 | 2.6 | 7.7 |
| 90 | 3.70 | 2.1 | 6.3 |
Straight tubes with 4 aramid reinforcements (Vena® Sil 200):
| Diameth internal | Thickness of wall | Operating pressure ISO1402/2009 | Burst pressure ISO 1402/2009 |
| mm | mm | Bar at 20°C | Bar at 20°C |
| 18 | 4.50 | 14.6 | 43.8 |
| 25 | 4.50 | 10.4 | 31.3 |
| 35 | 4.50 | 8.4 | 22.7 |
| 38 | 4.50 | 7.8 | 23.5 |
| 48 | 4.50 | 6.1 | 18.3 |
| 60 | 4.50 | 5.4 | 16.1 |
| 65 | 4.50 | 5.0 | 15.0 |
| 70 | 4.50 | 4.7 | 14.1 |
| 75 | 4.50 | 4.4 | 13.4 |
| 80 | 4.50 | 4.2 | 12.6 |
| 90 | 4.50 | 3.7 | 11.2 |
| 100 | 4.50 | 2.2 | 6.50 |
