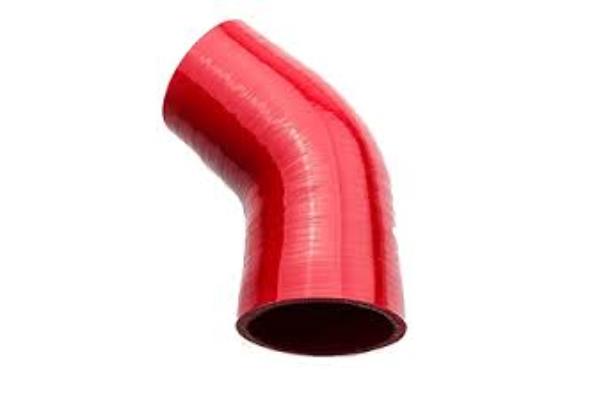

SILICONE SLEEVE HT/NMX 250 C - 45 BEND



Download sheet in pdf format
APPLICATION:
hoses that can be used in air conditioning systems for civil and industrial vehicles, cogeneration units, marine engines, transport of high temperature fluids.

CHARACTERISTICS:
smooth in appearance externally and internally, not corruptible by antifreeze liquids or rust. Excellent resistance to pressure, thermal aging and oxidizing agents (oxygen, ozone and UV rays). Resistant to hardening the tube is resistant to compressive forces. Ideal for use at high temperatures between -60° and 250°C, it can reach temperatures up to 275°C for short periods of time .

CONSTRUCTION:
construction material VMQ (Vinyl-Methyl HT) silicone rubber compliant with EU directive 2002/95/ECC for the limitation of the use of hazardous substances (RoHS). Structure reinforced with triple layer of ARAMID fiber fabric, shaped shape with 45° curves. BRICK RED COLOR. Wall thickness 3.70 mm - tolerance +1/-0.5mm.

LIMITATIONS:
compliance with the declared values, not suitable for the continuous passage and storage of hydrocarbons (even if resistant to traces of oil and diesel). It is not suitable for use at high depression, nor for the transport of abrasive powders.


CODES DESCRIPTION
10SILI250NOMEX45_032 SILICONE SLEEVE HT/NMX 250°C red - CURVED 45° - STEM 150 - 3 plies Ø 32
10SILI250NOMEX45_035 SILICONE SLEEVE HT/NMX 250°C red - CURVED 45° - STEM 150 - 3 plies Ø 35
10SILI250NOMEX45_040 SILICONE SLEEVE HT/NMX 250°C red - CURVED 45° - STEM 150 - 3 plies Ø 40
10SILI250NOMEX45_045 SILICONE SLEEVE HT/NMX 250°C red - CURVED 45° - STEM 150 - 3 plies Ø 45
10SILI250NOMEX45_050 SILICONE SLEEVE HT/NMX 250°C red - CURVED 45° - STEM 150 - 3 plies Ø 50
10SILI250NOMEX45_055 SILICONE SLEEVE HT/NMX 250°C red - CURVED 45° - STEM 150 - 3 plies Ø 55
10SILI250NOMEX45_060 SILICONE SLEEVE HT/NMX 250°C red - CURVED 45° - STEM 150 - 3 plies Ø 60
10SILI250NOMEX45_065 SILICONE SLEEVE HT/NMX 250°C red - CURVED 45° - STEM 150 - 3 plies Ø 65
10SILI250NOMEX45_070 SILICONE SLEEVE HT/NMX 250°C red - CURVED 45° - STEM 150 - 3 plies Ø 70
10SILI250NOMEX45_076 SILICONE SLEEVE HT/NMX 250°C red - CURVED 45° - STEM 150 - 3 plies Ø 76
10SILI250NOMEX45_080 SILICONE SLEEVE HT/NMX 250°C red - CURVED 45° - STEM 150 - 3 plies Ø 80
10SILI250NOMEX45_088 SILICONE SLEEVE HT/NMX 250°C red - CURVED 45° - STEM 150 - 3 plies Ø 88
10SILI250NOMEX45_090 SILICONE SLEEVE HT/NMX 250°C red - CURVED 45° - STEM 150 - 3 plies Ø 90
10SILI250NOMEX45_100 SILICONE SLEEVE HT/NMX 250°C red - CURVED 45° - STEM 150 - 3 plies Ø 100
