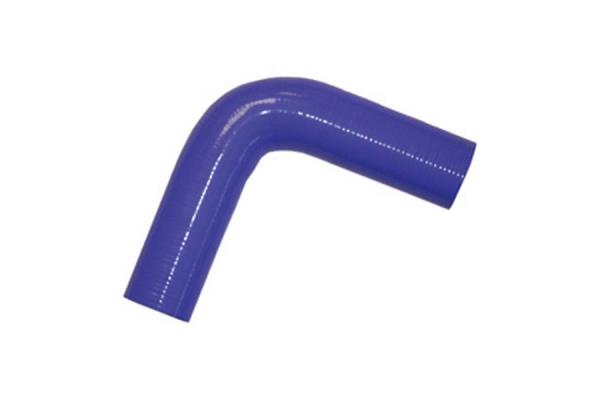

SILICONE SLEEVE 180 C BLUE - CURVED 90 STEM 150mm



Download sheet in pdf format
Standard blue silicone sleeve - other colors on request - with multiple textile braids incorporated - 90° BEND

APPLICATION
:

usable in pressurized air conditioning systems for civil and industrial vehicles, cogeneration units, marine engines, transport of high temperature fluids. It can be used both in vehicles and in the industrial sector, its use is indicated in cooling and heating systems on buses, trucks and industrial vehicles, refrigeration systems of cogeneration units and marine engines.

PROPERTIES :
Ideal for use at high temperatures between -60° and 180°C (peaks of 200ºC for short periods of time).
- Resistance to antifreezes and antirusts.
- High resistance to ozone.
- High resistance to hardening with excellent compression characteristics.
- Excellent flexibility during the assembly process.
- Excellent resistance to thermal aging and oxidizing agents (oxygen, ozone, UV rays).

CONSTRUCTION :
The construction material is VMQ (Vinyl-Methyl-Quality) silicone rubber, STANDARD BLUE colour, other colors on request.
-This product is made with three or four polyester reinforcements. 90° BEND with 150mm side legs.

LIMITATIONS:
compliance with the declared values, not suitable for the continuous passage and storage of hydrocarbons (even if resistant to traces of oil and diesel). It is not suitable for use at high depression, nor for the transport of abrasive powders. This type of hose is not suitable for negative pressure (vacuum) applications. The operating pressure and breaking load were determined through pressure tests in accordance with ISO 1402/2009.


CERTIFICATES on request
- Meets or exceeds the operational requirements of SAE J20 R1 Class A.
- The silicone rubber used complies with the EU Directive 2002/95 / ECC for the restriction of the use of hazardous substances (RoHS).
- The silicone for this hose is classified as M1 according to UNE 23.727-90 and as F2 according to NF F 16-101.
- The combustion, smoke and dripping class of this reference is S-3, SR-2 and ST-2 according to DIN 54837: test standard 2007 and DIN 5510-2: classification standard 2009 - DIN 5510-2 'Tests of fire for railway components .


AVAILABLE DIAMETERS:
10SIELBOW90006 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Plies Ø 6
10SIELBOW90008 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Plies Ø 8
10SIELBOW90010 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Plies Ø 10
10SIELBOW90013 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Plies Ø 13
10SIELBOW90016 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Cloths Ø 16
10SIELBOW90019 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Wires Ø 19
10SIELBOW90022 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Plies Ø 22
10SIELBOW90025 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Plies Ø 25
10SIELBOW90028 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Wires Ø 28
10SIELBOW90030 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Cloths Ø 30
10SIELBOW90032 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Plies Ø 32
10SIELBOW90035 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Cloths Ø 35
10SIELBOW90038 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Plies Ø 38
10SIELBOW90040 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Plies Ø 40
10SIELBOW90045 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 3 Cloths Ø 45
10SIELBOW90048 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 4 Wires Ø 48
10SIELBOW90051 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 4 Wires Ø 50
10SIELBOW90055 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 4 Wires Ø 55
10SIELBOW90057 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 4 Wires Ø 57
10SIELBOW90060 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 4 Cloths Ø 60
10SIELBOW90063 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 4 Wires Ø 63
10SIELBOW90065 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 4 Cloths Ø 65
10SIELBOW90068 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 4 Wires Ø 68
10SIELBOW90070 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 4 Wires Ø 70
10SIELBOW90075 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 4 Wires Ø 75
10SIELBOW90080 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 4 Wires Ø 80
10SIELBOW90083 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 4 Wires Ø 83
10SIELBOW90090 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 4 Wires Ø 90
10SIELBOW90102 SILICONE SLEEVE 180°C BLUE - CURVED 90° STEM 150 - 4 Wires Ø 102
