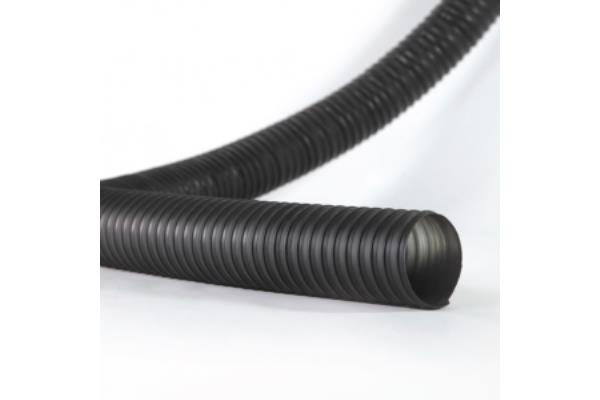

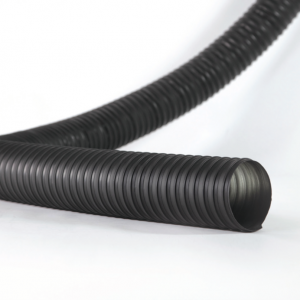

COPPER-PLATED POLYURETHANE HOSE (PUR-PHT) - 1.0
Code: PUR-PHT
High performance hose for hot and abrasive powder, bulk material, granules and hot gases Blown film, cooling air on the extrusion tool offset printing machine, air supply cabinet Cooling air, UV dryer, IR/infrared dryer, textile industry, steam extraction, iron. Highly abrasion resistant excellent heat resistance
(better than comparable TPE and neoprene) good resistance to chemicals, industrial oils and hydrocarbons excellent cold flexibility. RoHS REACH compliant based on technical information.
Temperature range: -40°C to 125°C briefly up to 150°C
Construction Pipe with profile reinforced with harmonic steel wire incorporated into the wall.
Wall in special patented high temperature polyurethane.
Wall thickness approx. 1.0 mm
Further sizes and lengths available upon request
Standard color black.
Standard packs 10 meters
diameter internal | external diameter | Pressure
| Depression
| Radius of curvature | weight |
|
mm | mm | bar | bar | mm | Kg/m |
25 | 32 | 2,835 | 0.495 | 28 | 0.20 |
32 | 40 | 2,245 | 0.460 | 35 | 0.28 |
38 | 46 | 1,905 | 0.430 | 40 | 0.32 |
40 | 48 | 1,815 | 0.420 | 41 | 0.34 |
45 | 53 | 1,620 | 0.385 | 45 | 0.38 |
50 | 58 | 1,465 | 0.365 | 49 | 0.41 |
60 | 68 | 1,225 | 0.285 | 56 | 0.49 |
63 | 73 | 1,135 | 0.255 | 60 | 0.53 |
70 | 79 | 1,055 | 0.210 | 65 | 0.59 |
75 | 84 | 0.985 | 0.195 | 69 | 0.64 |
80 | 89 | 0.925 | 0.175 | 73 | 0.68 |
90 | 99 | 0.825 | 0.155 | 80 | 0.75 |
100 | 109 | 0.745 | 0.120 | 88 | 0.97 |
125 | 134 | 0,600 | 0.085 | 107 | 1.20 |
150 | 159 | 0.500 | 0.075 | 126 | 1.52 |
160 | 169 | 0.470 | 0.065 | 134 | 1.61 |
200 | 209 | 0.375 | 0.055 | 165 | 2.00 |
