AIR PIPE

ONLINE CATALOGUE › HOSES › Specific flexible hoses for engine test rooms

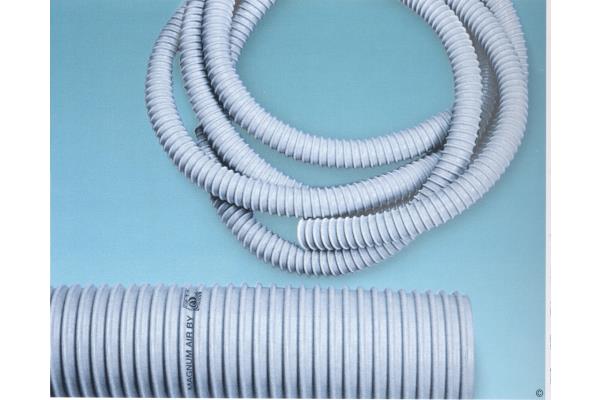

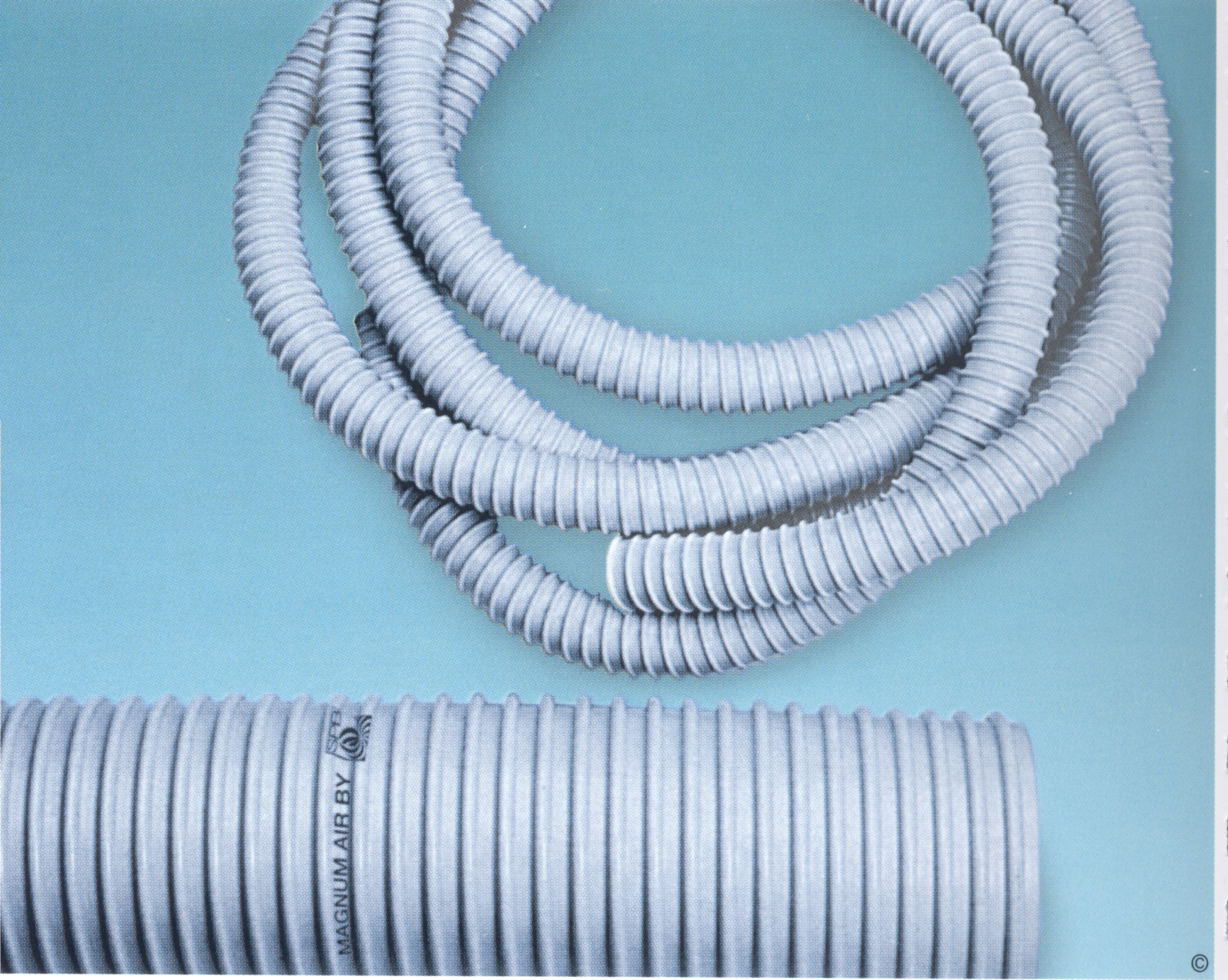

AIR hose in plasticized PVC, with shock-proof PVC reinforcement spiral, very light and very flexible.

Use:
air intake and delivery, cold fumes, chemical gases, including aggressive ones, fine non-corrosive dust, wood chips, fine sawdust, air conditioning, generic industrial systems.

Self-extinguishing according to UL 94 V0.

Smooth interior, corrugated exterior.
Radius of curvature equal to the internal diameter.
Operating temperature: -15°C to +60°C.
Colour: industrial grey, other colors on request.

Code	Diameter mm	Weight g/m	Vacuum packed Cafe	Rolls m
11PVAIR000020	20	100	0.78	50
11PVAIR000025	25	140	0.44	50
11PVAIR000030	30	200	0.44	50
11PVAIR000032	32	215	0.44	50
11PVAIR000035	35	240	0.44	50
11PVAIR000038	38	265	0.44	50
11PVAIR000040 3	40	280	0.44	50
11PVAIR000045	45	360	0.44	50
11PVAIR000050 3	50	450	0.39	50
11PVAIR000060 3	60	540	0.39	50
11PVAIR000063	63	565	0.34	50
11PVAIR000065	65	590	0.34	50
11PVAIR000070 3	70	640	0.34	50
11PVAIR000075	75	690	0.34	50
11PVAIR000080 3	80	780	0.34	30
11PVAIR000090 3	90	830	0.34	30
11PVAIR000100 3	100	980	0.34	30
11PVAIR000110	110	1100	0.29	30
11PVAIR000120 3	120	1200	0.29	30
11PVAIR000125	125	1250	0.29	30
11PVAIR000130 3	130	1300	0.29	30
11PVAIR000140 3	140	1500	0.29	30
11PVAIR000150 3	150	1700	0.25	20
11PVAIR000160 3	160	1900	0.25	20
11PVAIR000170	170	2050	0.25	20
11PVAIR000180 3	180	2200	0.25	20
11PVAIR000200 3	200	2400	0.25	20
11PVAIR000250	250	3350	0.25	10
11PVAIR000300 3	300	4100	0.25	10
