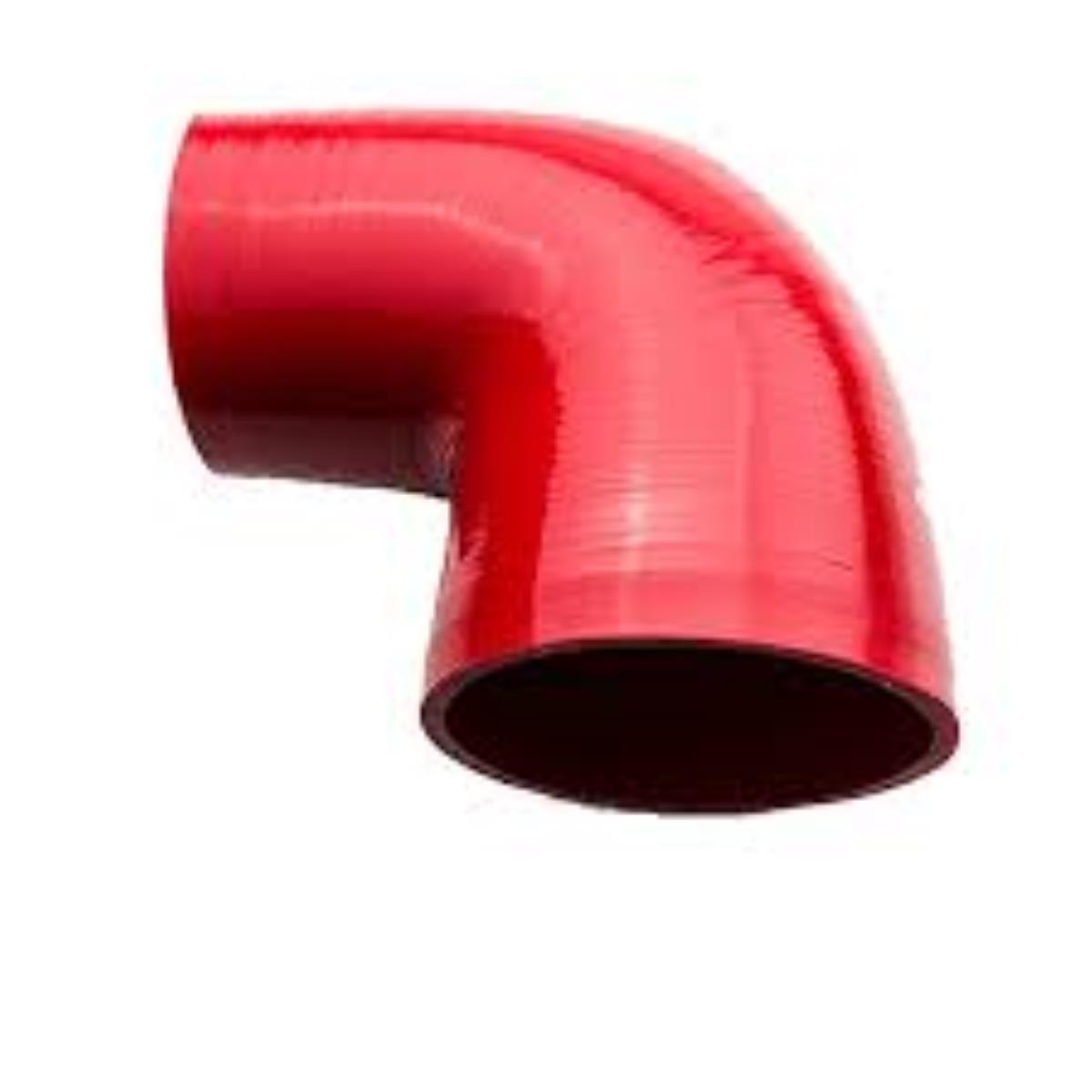

SILICONE SLEEVE (90 curve) HT/NMX 250 C red
ONLINE CATALOGUE › HOSES › Silicone rubber hoses and sleeves
Download sheet in pdf format
APPLICATION:
sleeves usable in air conditioning systems of civil and industrial vehicles,
cogeneration units, marine engines, high temperature fluid transport.
CHARACTERISTICS:
smooth in appearance externally and internally, not corruptible by antifreeze liquids or rust.
Excellent resistance to pressure, thermal aging and oxidizing agents (oxygen, ozone and UV rays)
Resistant to hardening the tube is resistant to compressive forces.
Ideal for use at high temperatures between -60° and 250°C, it can reach temperatures up to 275°C for short periods of time .
CONSTRUCTION:
construction material silicone rubber VMQ (Vinyl-methyl HT) compliant with EU directive 2002/95/ECC for the restriction of the use of hazardous substances (RoHS). Structure reinforced with triple layer of ARAMID fiber fabric, contoured shape 90° curves. BRICK RED COLOR. Wall thickness 3.70 mm - tolerance +1/-0.5mm.
LIMITATIONS:
compliance with the declared values, not suitable for the continuous passage and storage of hydrocarbons (even if resistant to traces of oil and diesel). It is not suitable for use at high vacuum, nor for the transport of abrasive powders.
sleeves usable in air conditioning systems of civil and industrial vehicles,
cogeneration units, marine engines, high temperature fluid transport.
CHARACTERISTICS:
smooth in appearance externally and internally, not corruptible by antifreeze liquids or rust.
Excellent resistance to pressure, thermal aging and oxidizing agents (oxygen, ozone and UV rays)
Resistant to hardening the tube is resistant to compressive forces.
Ideal for use at high temperatures between -60° and 250°C, it can reach temperatures up to 275°C for short periods of time .
CONSTRUCTION:
construction material silicone rubber VMQ (Vinyl-methyl HT) compliant with EU directive 2002/95/ECC for the restriction of the use of hazardous substances (RoHS). Structure reinforced with triple layer of ARAMID fiber fabric, contoured shape 90° curves. BRICK RED COLOR. Wall thickness 3.70 mm - tolerance +1/-0.5mm.
LIMITATIONS:
compliance with the declared values, not suitable for the continuous passage and storage of hydrocarbons (even if resistant to traces of oil and diesel). It is not suitable for use at high vacuum, nor for the transport of abrasive powders.
| ITEM | DESCRIPTION |
| 10SILI250NOMEX90_032 | SILICONE SLEEVE HT/NMX 250°C red - 90° CURVED - 150 STEM - 3 plies Ø 32 |
| 10SILI250NOMEX90_035 | SILICONE SLEEVE HT/NMX 250°C red - 90° CURVED - 150 STEM - 3 plies Ø 35 |
| 10SILI250NOMEX90_040 | SILICONE SLEEVE HT/NMX 250°C red - 90° CURVED - 150 STEM - 3 plies Ø 40 |
| 10SILI250NOMEX90_045 | SILICONE SLEEVE HT/NMX 250°C red - 90° CURVED - 150 STEM - 3 plies Ø 45 |
| 10SILI250NOMEX90_050 | SILICONE SLEEVE HT/NMX 250°C red - 90° CURVED - 150 STEM - 3 plies Ø 50 |
| 10SILI250NOMEX90_055 | SILICONE SLEEVE HT/NMX 250°C red - 90° CURVED - 150 STEM - 3 plies Ø 55 |
| 10SILI250NOMEX90_060 | SILICONE SLEEVE HT/NMX 250°C red - 90° CURVED - 150 STEM - 3 plies Ø 60 |
| 10SILI250NOMEX90_065 | SILICONE SLEEVE HT/NMX 250°C red - 90° CURVED - 150 STEM - 3 plies Ø 65 |
| 10SILI250NOMEX90_070 | SILICONE SLEEVE HT/NMX 250°C red - 90° CURVED - 150 STEM - 3 plies Ø 70 |
| 10SILI250NOMEX90_076 | SILICONE SLEEVE HT/NMX 250°C red - 90° CURVED - 150 STEM - 3 plies Ø 76 |
| 10SILI250NOMEX90_080 | SILICONE SLEEVE HT/NMX 250°C red - 90° CURVED - 150 STEM - 3 plies Ø 80 |
| 10SILI250NOMEX90_088 | SILICONE SLEEVE HT/NMX 250°C red - 90° CURVED - 150 STEM - 3 plies Ø 88 |
| 10SILI250NOMEX90_090 | SILICONE SLEEVE HT/NMX 250°C red - 90° CURVED - 150 STEM - 3 Ø 90 plies |
| 10SILI250NOMEX90_100 | SILICONE SLEEVE HT/NMX 250°C red - 90° CURVED - 150 STEM - 3 plies Ø 100 |
