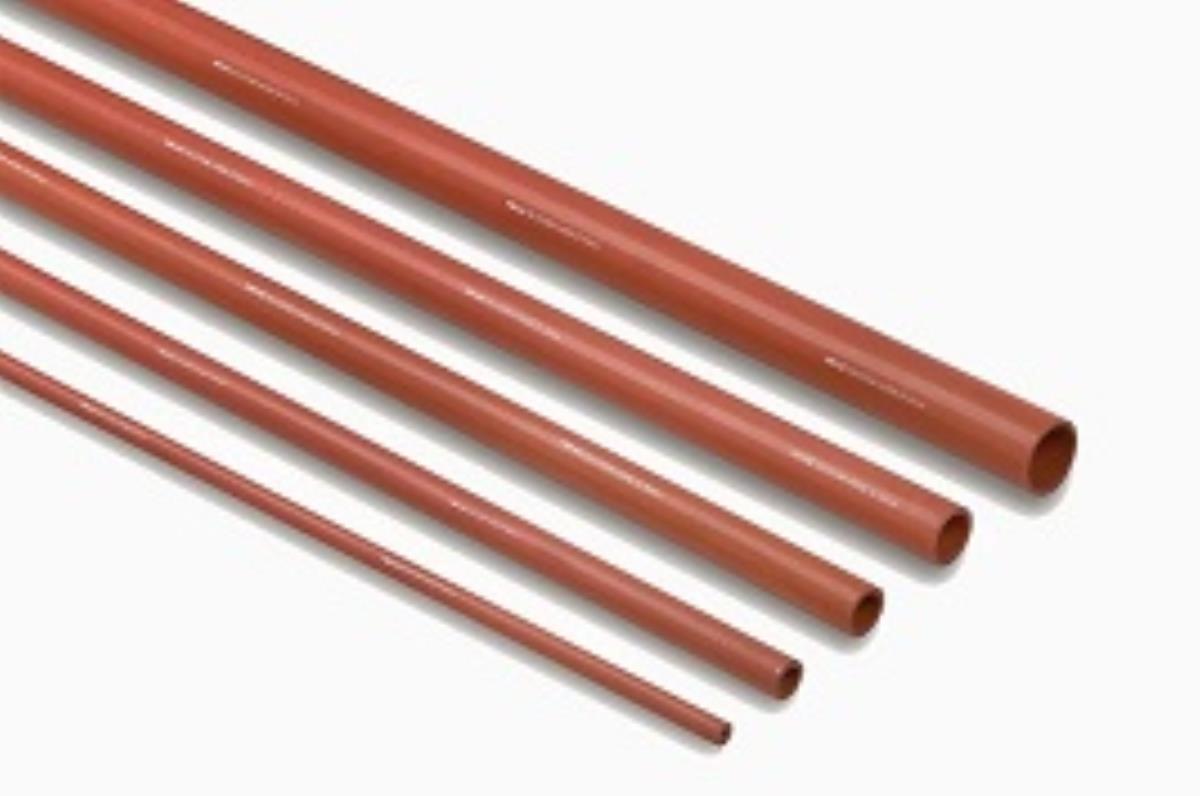

SILICONE HOSE HT/NMX 250 C red
ONLINE CATALOGUE › HOSES › Silicone rubber hoses and sleeves
Download sheet in pdf format
Code: 250°
APPLICATION
linear or curved pipes usable in air conditioning systems for civil and industrial vehicles, cogeneration units, marine engines, transport of high temperature fluids.
Connection between radiators and internal combustion engines, between turbine and intercooler on cars, trucks, industrial vehicles and generators, for the passage of antifreeze liquids mixed with water and/or hot air.
PROPERTY '
smooth in appearance externally and internally, not corruptible by antifreeze liquids or rust. Excellent resistance to pressure, thermal ageing and oxidising agents (oxygen, ozone and UV rays). Resistant to hardening, the tube is resistant to compression forces. Ideal for use at high temperatures between -60° and 250°C, it can reach temperatures up to 270°C for short periods of time.
CONSTRUCTION
Construction material: VMQ (Vinyl-methyl-quality) silicone rubber compliant with EU directive 2002/95/ECC for the restriction of the use of certain hazardous substances (RoHS).
Reinforced structure with triple layer of ARAMID fiber fabric,
Standard production is 4 meters but it can be produced with lengths on request.
Whether in a contoured shape in elbow or curves.
Brick red color.
Wall thickness approx. 3.70 mm - tolerance +1/-0.5mm.
LIMITATIONS:
compliance with the declared values, not suitable for the continuous passage and storage of hydrocarbons (even if resistant to traces of oil and diesel). It is not suitable for use at high vacuum, nor for the transport of abrasive powders.
APPLICATION
linear or curved pipes usable in air conditioning systems for civil and industrial vehicles, cogeneration units, marine engines, transport of high temperature fluids.
Connection between radiators and internal combustion engines, between turbine and intercooler on cars, trucks, industrial vehicles and generators, for the passage of antifreeze liquids mixed with water and/or hot air.
PROPERTY '
smooth in appearance externally and internally, not corruptible by antifreeze liquids or rust. Excellent resistance to pressure, thermal ageing and oxidising agents (oxygen, ozone and UV rays). Resistant to hardening, the tube is resistant to compression forces. Ideal for use at high temperatures between -60° and 250°C, it can reach temperatures up to 270°C for short periods of time.
CONSTRUCTION
Construction material: VMQ (Vinyl-methyl-quality) silicone rubber compliant with EU directive 2002/95/ECC for the restriction of the use of certain hazardous substances (RoHS).
Reinforced structure with triple layer of ARAMID fiber fabric,
Standard production is 4 meters but it can be produced with lengths on request.
Whether in a contoured shape in elbow or curves.
Brick red color.
Wall thickness approx. 3.70 mm - tolerance +1/-0.5mm.
LIMITATIONS:
compliance with the declared values, not suitable for the continuous passage and storage of hydrocarbons (even if resistant to traces of oil and diesel). It is not suitable for use at high vacuum, nor for the transport of abrasive powders.
| Code | Diameter internal mm | Pressure of work bar | Pressure of explosion bar |
|---|---|---|---|
| 10SILI250NOMEX018 | 18 | 13.40 | 40.30 |
| 10SILI250NOMEX025 | 25 | 8.40 | 25.30 |
| 10SILI250NOMEX035 | 35 | 5.50 | 16.20 |
| 10SILI250NOMEX038 | 38 | 4.60 | 13.70 |
| 10SILI250NAMEX050 | 50 | 4.10 | 12.3 |
| 10SILI250NAMEX060 | 60 | 3.50 | 10.60 |
| 10SILI250NOMEX065 | 65 | 3.30 | 9.90 |
| 10SILI250NAMEX070 | 70 | 3.10 | 9.20 |
| 10SILI250NOMEX075 | 75 | 2.80 | 8.40 |
| 10SILI250NAMEX080 | 80 | 2.60 | 7.70 |
| 10SILI250NAMEX090 | 90 | 2.10 | 6.30 |
