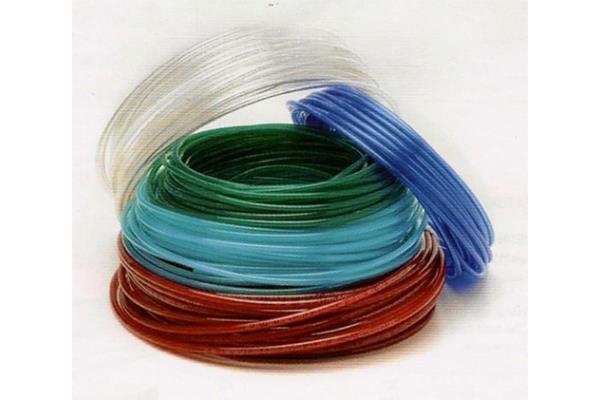

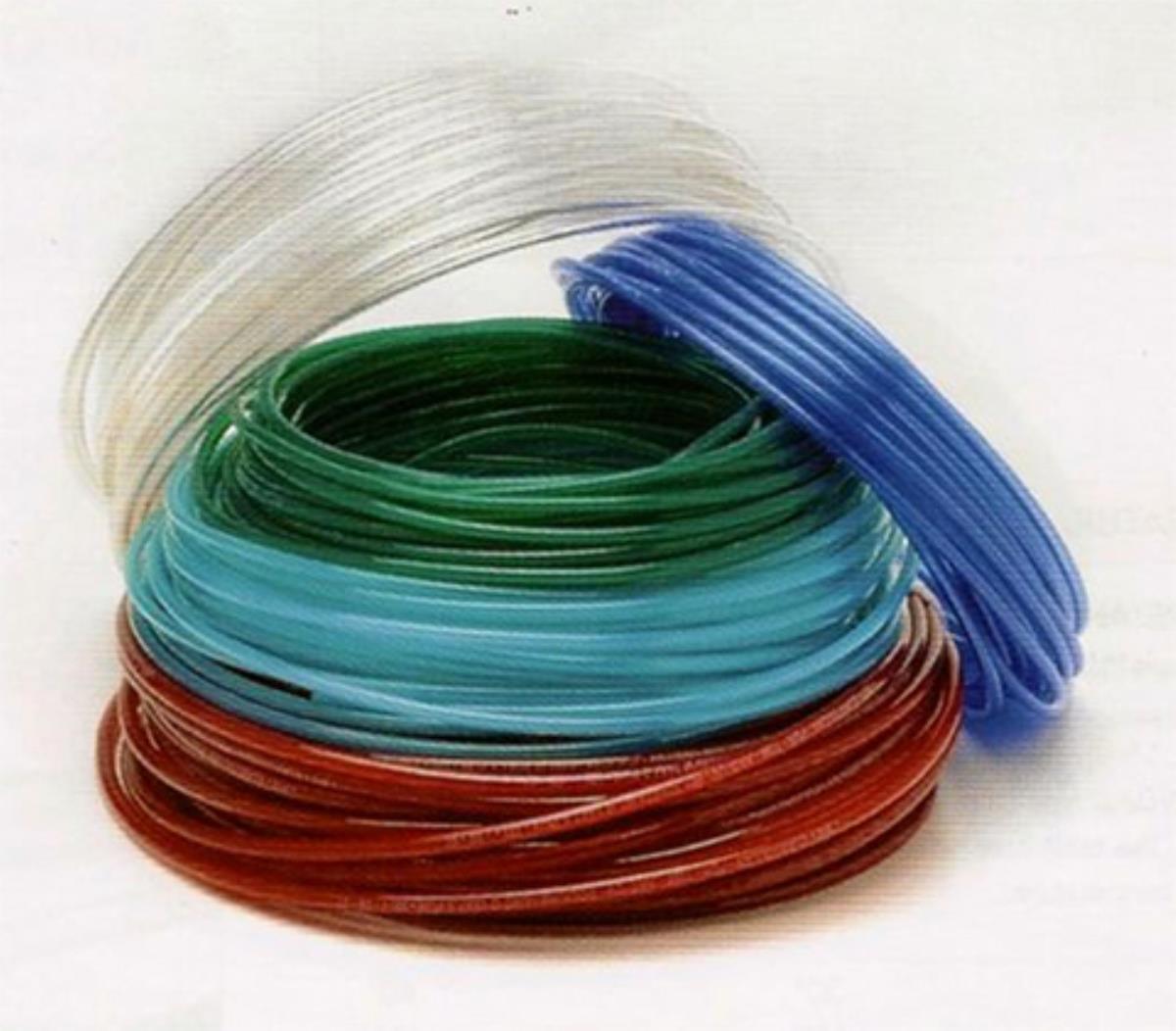

POLYURETHANE HOSE - ELASTOLLAN C98



Download sheet in pdf format
Polyurethane elastomer of ESTER based chemical origin, excellent flexibility at low temperatures, limited deformation, excellent hydrolytic stability, resistance to hydrocarbons, excellent abrasive resistance. Hardness 52 ShoreD.
Suitable for use with quick-connect fittings.
It is used for compressed air, as an insulating element, as a gasket in hydraulic systems.
Operating temperature: -40°C +60°C.
Colours: neutral, light blue, black, red, yellow, green, orange, grey.

Code Diameter
mm
Radius of
curvature
mm
Pressure
exercise
Cafe
03EX950002/04 2x4 10 22
03EX9802,5/04 2.5x4 15 15
03EX982.7/4.3 2.7x4.3 20 15
03EX950003/05 3x5 20 16
03EX950004/06 4x6 25 14
03EX980005/08 5x8 30 15
03EX9805.5/08 5x8 40 12
03EX980006/08 6x8 40 11
03EX9806.5/10 6x10 40 14
03EX980007/10 7x10 35 11
03EX98007.5/10 7.5x10 60 9
03EX980008/10 8x10 65 8
03EX980008/12 8x12 50 13
03EX980009/12 9x12 70 9
03EX980009/12 11x14 100 8
