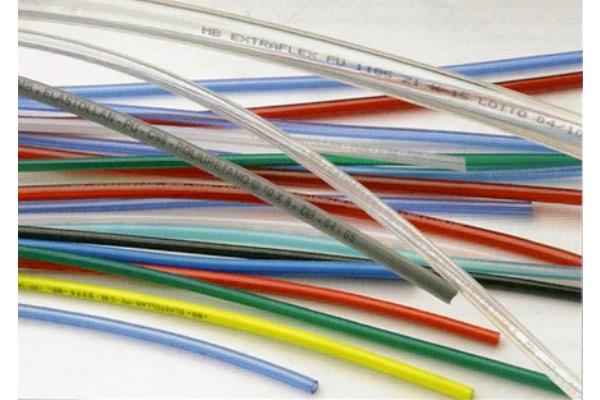

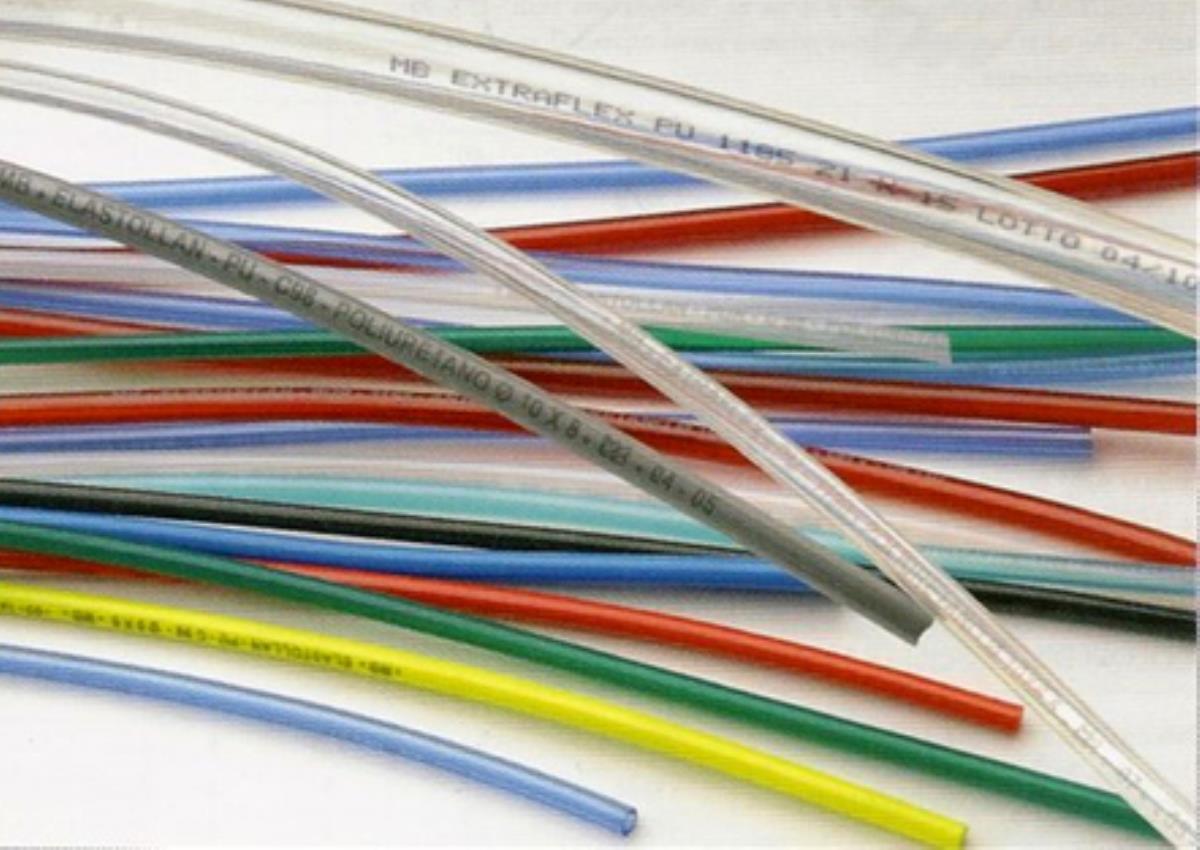

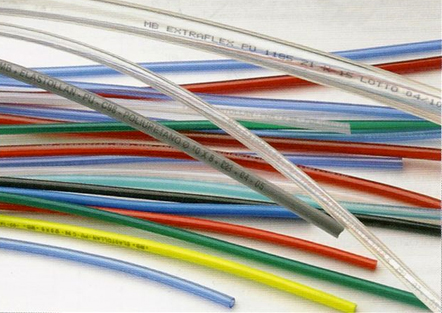

EXTRAFLEX S90 POLYURETHANE HOSE

ONLINE CATALOGUE › HOSES › Hoses for Pneumatic Applications › POLYURETHANE - ELASTOLLAN - EXTRAFLEX HOSES

Polyurethane ether 95 ShA elastomer, excellent flexibility at low temperatures, limited deformation, excellent hydrolytic stability, resistance to hydrocarbons.
Excellent resistance to abrasion, microbial attack and low temperatures.
Operating temperature: -40°+60° C.
Colours: neutral, light blue, black, red, yellow, green, grey.

Item	Diameters mm	radius curvature mm	Pressure exercise Cafe
03EX9001.5/03	1.5x3	10	17
03EX901.6/3.17	1.6x3.17	10	17
03EXSP0002/04	2x4	10	17
03EXSP02.5/04	2.5x4	15	12
03EXSP02.7/04	2.7x4.3	20	12
03EXSP0003/05	3x5	20	13
03EXSP03.2/06	3.2x6	20	16
033EXSP03.6/06	3.6x6	20	13
03EXSP0004/06	4x6	25	10
03EXS90004/08	4x8	20	17
03EXSP0005/08	5x8	30	12
03EXSP0005/10	5x10	25	17
03EXSP05.5/08	5.5x8	40	9
03EXSP05.7/08	5.7x8	40	8
03EXSP0006/10	6x10	35	13
03EXSP06.5/10	6.5x10	40	11
03EXSP0007/10	7x10	50	9
03EXSP07.5/12	7.5x12	45	12
03EXSP0008/12	8x12	50	10
03EXSP08.5/14	8.5x14	50	13
03EXSP0009/12	9x12	70	7
03EXSP0009/14	9x14	55	11
03EXSP09.5/14	9.5x14	65	10
03EXSP0010/14	10x14	70	8
03EXSP0010/16	10x16	60	12
03EXSP010.5/16	10.5x16	65	11
03EXSP0011/16	11x16	75	9
03EXSP0012/16	12x16	95	7
03EXSP0013/19	13x19	85	10
