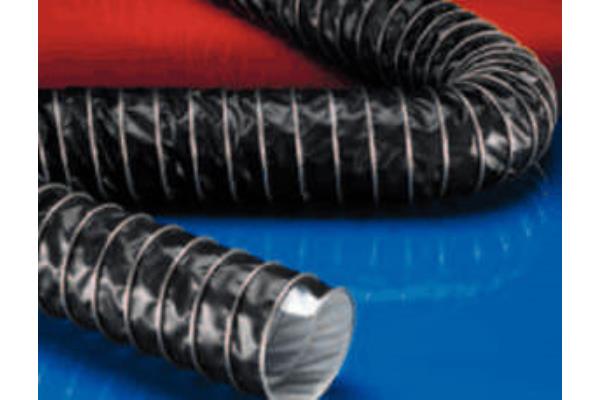

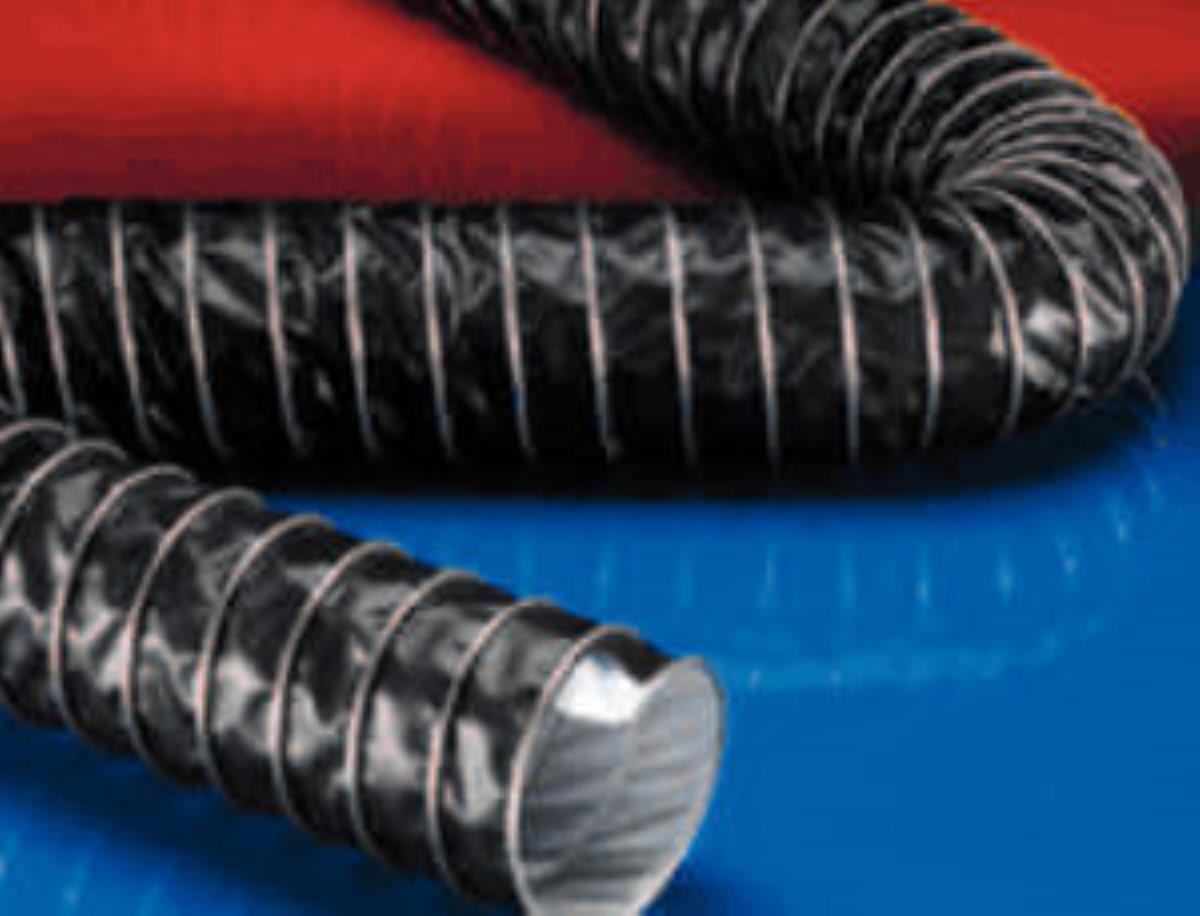

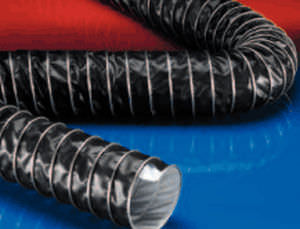

FLEX HOSE HT Teflon/Hypalon (CSM) 175
Flexible hose produced by assembling two layers of technical fabric.
Externally in polyester fabric coated with Hypalon ® product on both sides in external protection of the internal film of CONDUCTIVE black PTFE R=10 4 O, external galvanized steel spiral. External COLOR BLACK.
Applications:
• Extraction of corrosive vapours
• Extraction of solvent and paint vapours
• Paint, wood and paper industry
• Pharmaceutical and chemical industry
Operating temperature: -35°C / +175°C, peaks of +190°C
Property:
• Good resistance to chemical agents
• Black tube R=10 4 O
• Excellent resistance to UV rays and ozone
• Axial compressibility ratio 1:6
• Resistant to high load vibration and tearing
• Protected by the external spiral
Variants:
• Ø 50 mm up to 900 mm. Standard lengths: from 2 to 10 meters (15 meters on request)
On demand:
• Custom size for use
• Customization: for example with end sleeves or other connection elements
Dimensions | Pressure | Depression | Radius of curvature | Weight |
Ø mm | Cafe | Cafe | mm | Kg/m |
50 | 0.900 | 0.440 | 30 | 0.50 |
60 | 0.780 | 0.306 | 36 | 0.60 |
65 | 0.680 | 0.261 | 39 | 0.70 |
70 | 0.670 | 0.225 | 42 | 0.70 |
75 | 0.620 | 0.196 | 45 | 0.80 |
80 | 0.610 | 0.172 | 48 | 0.80 |
90 | 0.560 | 0.136 | 54 | 0.90 |
100 | 0.510 | 0.110 | 60 | 1.00 |
110 | 0.480 | 0.092 | 66 | 1.10 |
120 | 0.360 | 0.077 | 72 | 1.10 |
125 | 0.330 | 0.071 | 75 | 1.20 |
130 | 0.280 | 0.065 | 78 | 1.20 |
140 | 0.250 | 0.057 | 84 | 1.30 |
150 | 0.220 | 0.049 | 90 | 1.30 |
160 | 0.210 | 0.043 | 96 | 1.30 |
170 | 0.190 | 0.039 | 102 | 1.40 |
175 | 0.185 | 0.037 | 105 | 1.40 |
180 | 0.172 | 0.035 | 108 | 1.40 |
200 | 0.148 | 0.028 | 120 | 1.60 |
215 | 0.128 | 0.022 | 129 | 1.80 |
225 | 0.115 | 0.018 | 135 | 2.00 |
250 | 0.100 | 0.015 | 175 | 2.10 |
275 | 0.080 | 0.013 | 193 | 2.30 |
300 | 0.070 | 0.011 | 210 | 2.40 |
315 | 0.062 | 0.011 | 221 | 2.60 |
325 | 0.059 | 0.009 | 228 | 2.80 |
350 | 0.056 | 0.008 | 245 | 3.30 |
375 | 0.050 | 0.007 | 263 | 3.50 |
400 | 0.047 | 0.006 | 280 | 3.80 |
450 | 0.045 | 0.005 | 360 | 4.20 |
500 | 0.043 | 0.004 | 400 | 4.70 |
600 | 0.039 | 0.003 | 480 | 5.90 |
700 | 0.031 | 0.002 | 560 | 6.90 |
800 | 0.022 | 0.002 | 640 | 7.60 |
900 | 0.016 | 0.001 | 720 | 8.20 |
