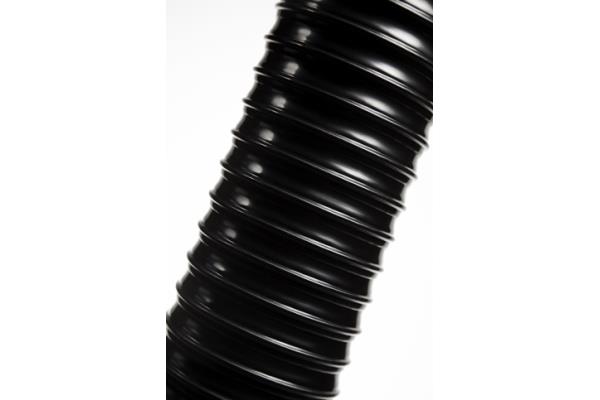

CONDUCTIVE POLYETHYLENE PIPE (PE-C) - 0.80

CONSTRUCTION:
- Electrically conductive polyethylene (PE)
- Wall thickness approx. 0.8 mm
- 10 meter rolls
- Black colour
- Temperature range: -35°C to 80°C
permanent electrically conductive component material, suitable for use in ATEX areas


APPLICATIONS:
flexible hose for gases and dusts, powders, fibres.
Chemical industry: chemical vapors, vapor recovery pipe at the loading arm, paint fumes, suction of paint mist in potentially explosive area.
Use in mines in tunnel construction: ventilation, methane gas extraction.

PROPERTY:
- good resistance to alkalis and acids
- excellent chemical resistance
- Electrically conductive wall: volume resistance and surface resistance <10³ (acc.toNFPA 652 <106 O)
according to ATEX 2014/34/EU (1999/92/EC) and German TRGS 727: pneumatic transport of flammable dust and bulk materials (Zone 20, 21, 22 indoors), suction of combustible dust (Zone 22 indoors) according to ATEX 2014/34/EU (1999/92/EC) and German TRGS 727 for the transport of flammable liquids (within zone 0,1,2) for the transport of non-flammable liquids, for use in zone 1 and 2 (gas), for use in zone 0 (gas)
- Compliant with RoHS regulations
- REACH according to -> Technical information / technical / REACH
