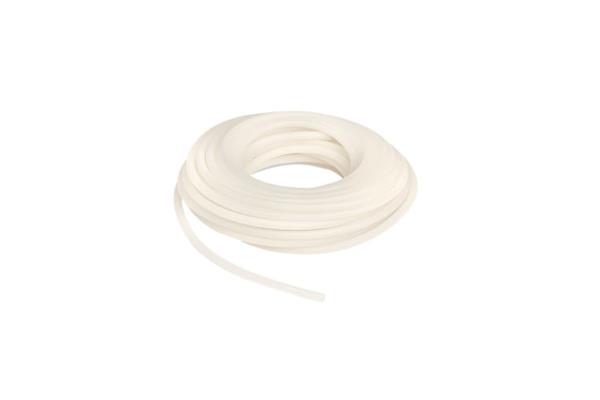

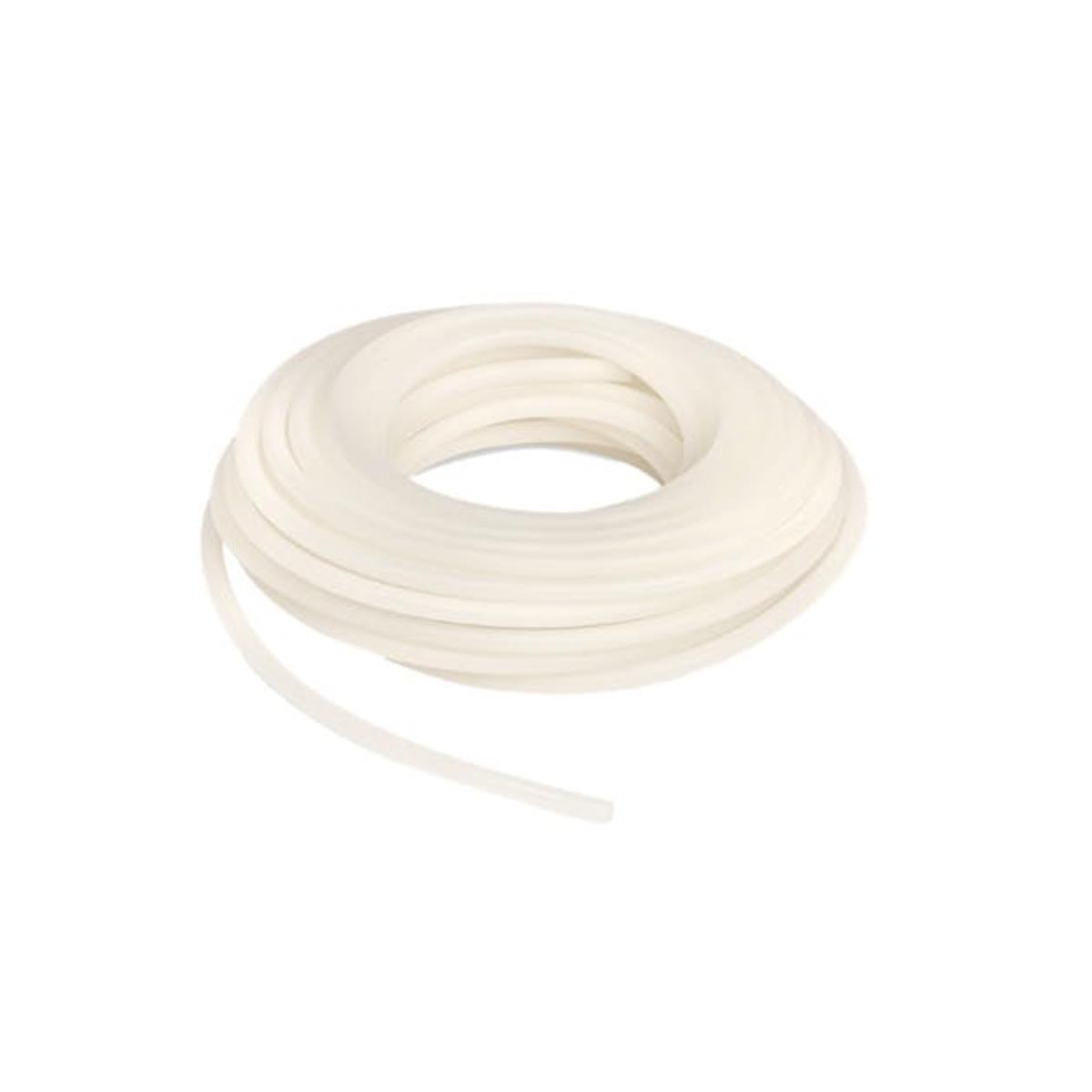

VENABIO WELD thermoplastic TEBO
ONLINE CATALOGUE › HOSES › Pipes for the pharmaceutical industry › SILICONE hoses for the pharmaceutical industry
Download sheet in pdf format
This product meets the need for a heat sealable and weldable biopharmaceutical tubing. Provides disconnection and reconnection functionality through a cuttable gasket and aseptic welding.
It is important to remember that a thermoplastic material is therefore sensitive to heat, so dry heat, SIP and autoclave sterilization cycles will significantly reduce its lifespan, therefore it should only be used when the application is for single use.
Structure in thermoplastic elastomer
Temperature: -45°C +135°C
Shore A hardness 56
Tensile strength N/mm2 >3.7
Elongation % >565
Density g/cm3 0.90
Elastic modulus N/mm2 >1.0
Sterilization available via Gamma rays
Double vacuum bagged (see page 5)
free from animal-derived components
Produced in a clean room according to ISO14644-1 Class 7
Traceable with reference, batch number and ID/OD
Heat sealable and weldable with other biopharmaceutical tubing
| Diameter internal mm (inches) | Diameter external mm (inches) | Thickness wall mm (inches) | Pressure of exercise Cafe | Pressure of explosion Cafe |
| 1.6 (1/16") | 4.8 (3/16") | 1.60 (1/16") | 2.6 | 7.8 |
| 3.2 (1/8") | 6.4 (1/4") | 1.60 (1/16") | 1.7 | 5.1 |
| 4.8 (3/16") | 7.9 (5/16") | 1.60 (1/16") | 1.5 | 4.5 |
| 6.4 (1/4") | 9.5 (3/8") | 1.60 (1/16") | 1.1 | 3.3 |
| 6.4 (1/4") | 11.1 (7/16") | 2.34 (3/32") | 1.5 | 4.5 |
| 7.9 (5/16") | 11.1 (7/16") | 1.60 (1/16") | 2.1 | 6.3 |
| 7.9 (5/16") | 12.7 (1/2") | 2.34 (3/32") | 1.4 | 4.2 |
| 9.5 (3/8") | 14.3 (9/16") | 2.34 (3/32") | 1,2 | 3.6 |
| 9.5 (3/8") | 15.9 (5/8") | 3.20 (1/8") | 1.4 | 4.2 |
| 12.7 (1/2") | 19.1 (3/4") | 3.20 (1/8") | 1.1 | 3.3 |
BIOCOMPATIBILITY
-ADCF P
-BPA BSE
-TSE EU 10
-2011 FDA
-21CFR178.2010
-USP 87
-USP 88
-USP 661
-ISO 10993-4
-ISO 10993-5
