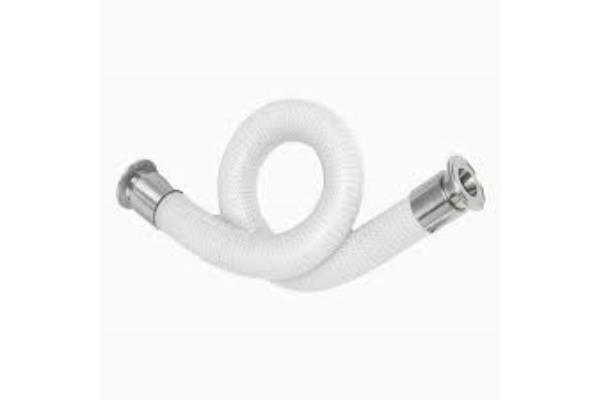

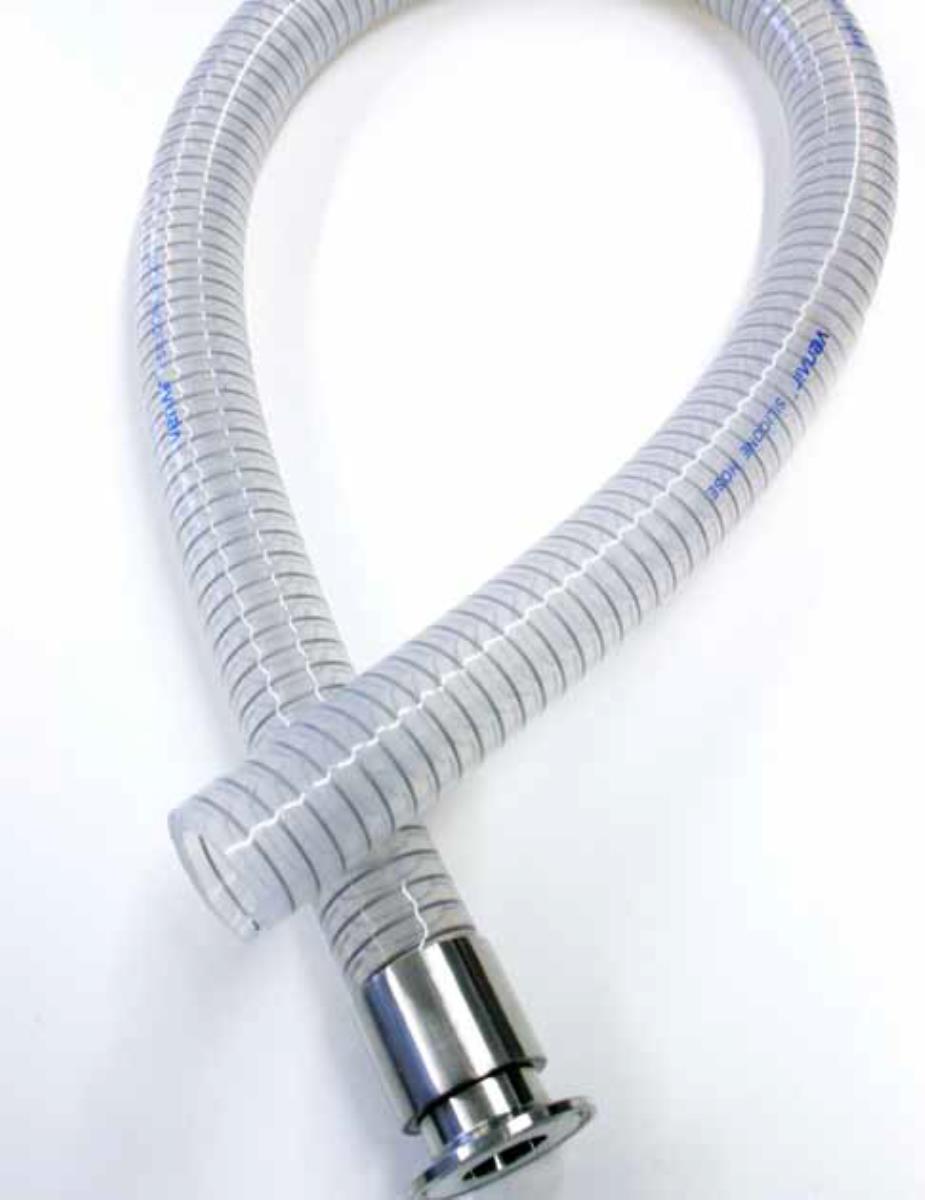

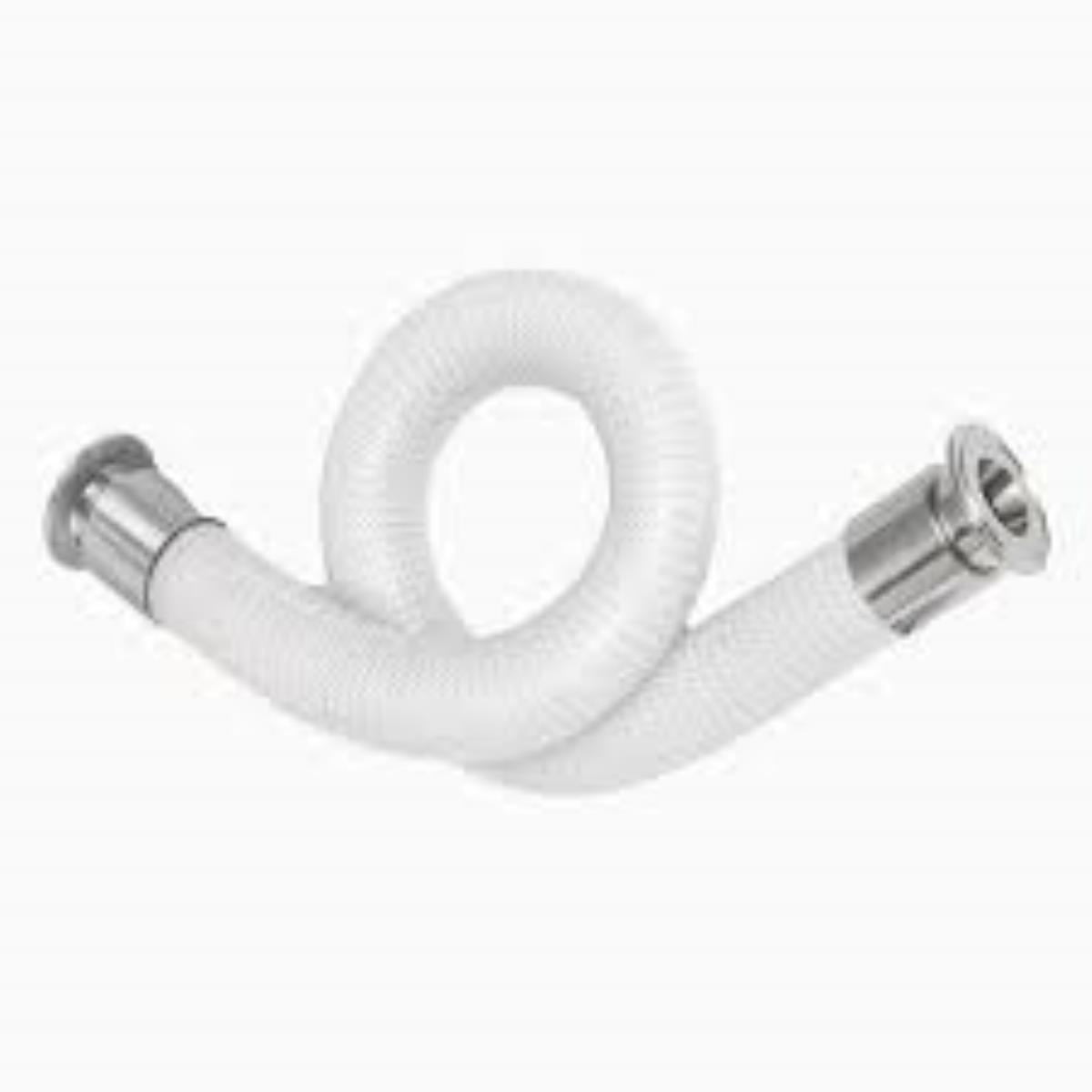

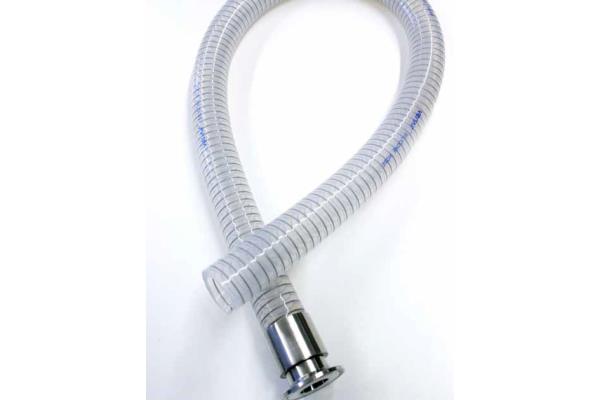

VENA SIL 630
ONLINE CATALOGUE › HOSES › Pipes for the pharmaceutical industry › SILICONE hoses for the pharmaceutical industry
Download sheet in pdf format
FDA and USP VI platinum vulcanized silicone hose with stainless steel wire, for food and pharmaceutical processing. Particularly suitable for the transport of liquid or semi-liquid fluids in the food, cosmetic and pharmaceutical industries. It offers an extremely wide range of applications. It can be used in filling machines or any other process where it is necessary to see the internal liquid to control its flow.
VMQ outer layer Silicone reinforcement, smooth and translucent, outer layer in Telcra (innovative insulating material).
Reinforcement Stainless steel wire
Internal layer VMQ Silicone, smooth and translucent with high elasticity, exclusive Venair formulation.
Temperature -55ºC / +200ºC (-67ºF / 392ºF)
Standard production length 4m (13.12 ft) - 6m (19.69 ft) for standard diameters
Traceability Silicone label
QR marking Special marking
Assemblies: 316L Stainless Steel SZR Crimp Fittings Molded Clamps
Vacuum Pressure 0.80 bar (11.6 psi)
special versions:
X: Black conductive silicone.
Lastic: Highly elastic silicone, exclusive Venair formulation.
FR-HL: Fireproof version according to EN-45545-2.
AC Reinforcement: Copper wire spiral to improve static electricity discharge
Certifications:
Meets USP Class VI criteria,
US FDA
European Pharmacopoeia 3.1.9 Directive 2015/863
3A Sanitary Standard 62-02
