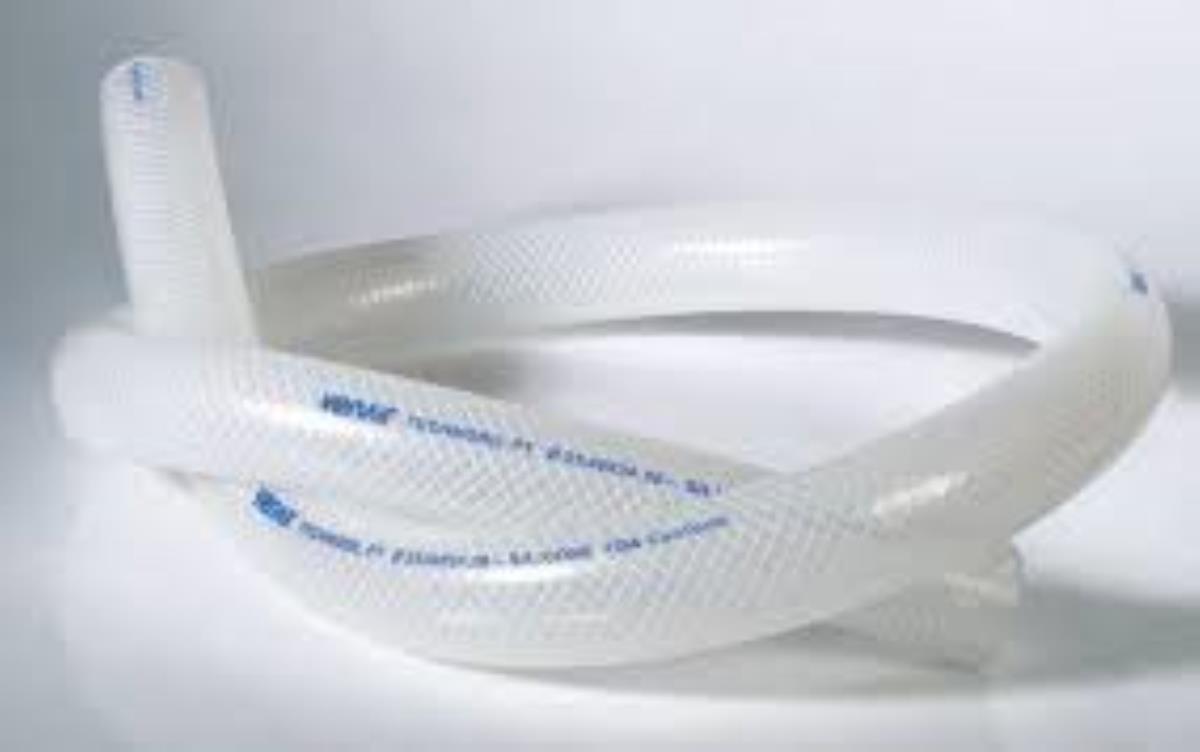

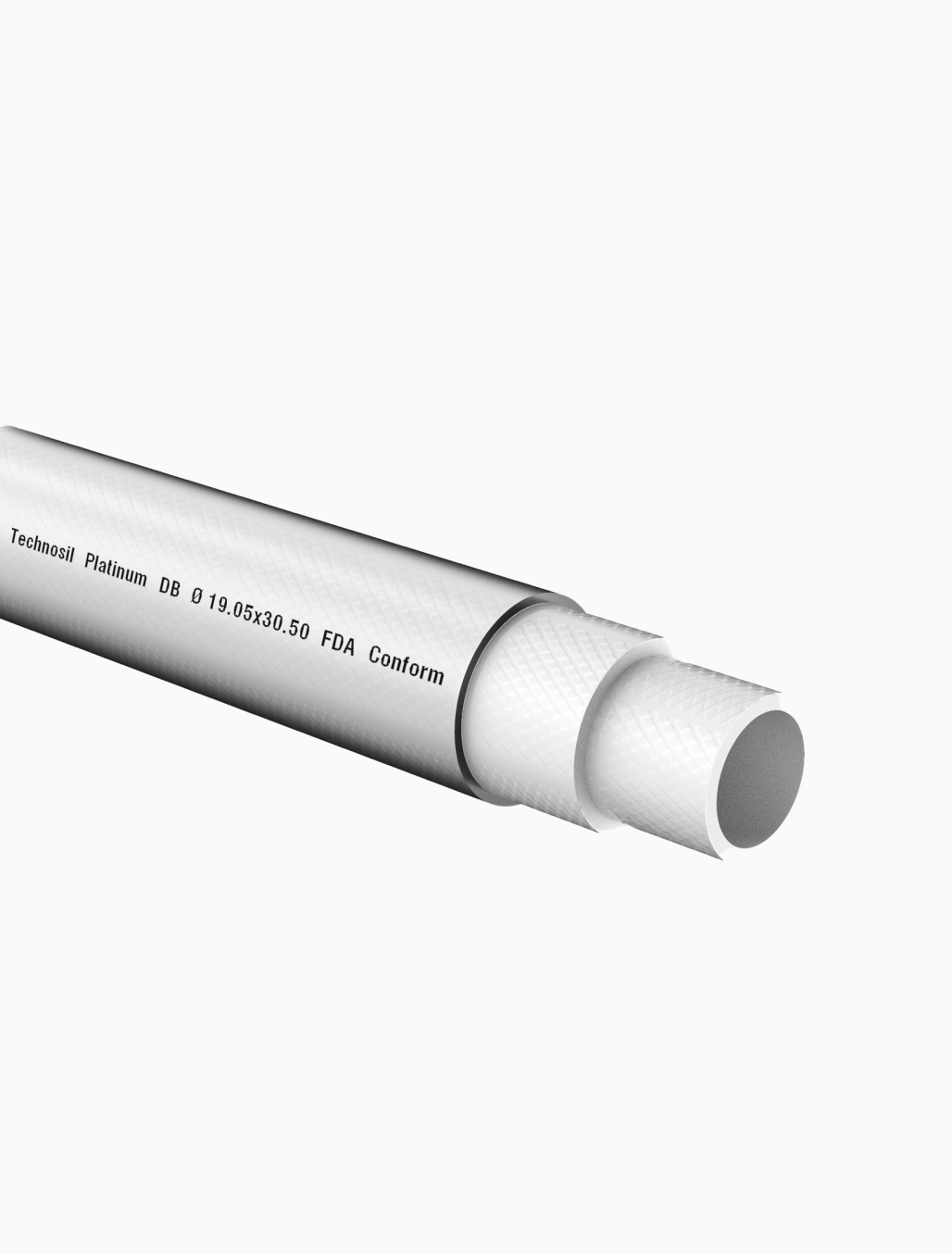

DOUBLE BRAIDED FOOD GRADE PLATINUM SILICONE HOSE
ONLINE CATALOGUE › HOSES › Pipes for the pharmaceutical industry › SILICONE hoses for the pharmaceutical industry
Download sheet in pdf format
Extruded silicone hose with double polyester braid that can be used in places with high pressure due to its resistance for the food and pharmaceutical industry. Thanks to the double reinforcement, it can be used in high-pressure filling processes. Also recommended for use in light depression.
Outer layer: VMQ silicone, smooth and translucent
Temperature -55ºC +180ºCOuter layer: VMQ silicone, smooth and translucent
Production length: 10m and 20m
CERTIFICATIONS RECOGNIZED FOR THE PIPE
• FDA-CFR 21, item 177.2600: Rubber articles for contact with food and drugs.
• ResAp 2004 (5), according to Reg 1935/2004/EEC, and Reg 10/2011/EEC.
• BfR Chapter XV: Silicones. • USP Class VI standard -121ºC standard.
• ISO 10993-4, 5, 6 ad 10 “Biological evaluation of medical devices”.
• European Pharmacopoeia 3.1.9 “Silicone elastomer for closures and tubing”.
• 3A Sanitary Standard 18-03 Class I (hose)
| DIAMETER mm | THICKNESS WALL mm | OPERATING PRESSURE Cafe | BURST PRESSURE Cafe | RADIUS OF CURVATURE mm | EMPTY Cafe |
| 5.00 | 4.00 | 25.16 | 75.48 | 30 | 1.00 |
| 6.35 | 4.83 | 23.74 | 71.22 | 34 | 1.00 |
| 7.90 | 5.05 | 22.85 | 68.54 | 37 | 1.00 |
| 9.52 | 5.24 | 10.31pm | 66.92 | 46 | 0.95 |
| 12.70 | 5.15 | 7.44pm | 58.31 | 51 | 0.95 |
| 15.80 | 5.60 | 16.97 | 50.92 | 65 | 0.90 |
| 19.05 | 5.73 | 3.58pm | 46.75 | 76 | 0.80 |
| 10.00pm | 5.50 | 13.95 | 41.85 | 99 | 0.50 |
| 25.40 | 5.80 | 12.50 | 37.49 | 118 | 0.40 |
| 28.00 | 5.00 | 11.67 | 35.00 | 160 | 0.15 |
| 31.75 | 7.13 | 10.07 | 30.20 | 181 | 0.15 |
