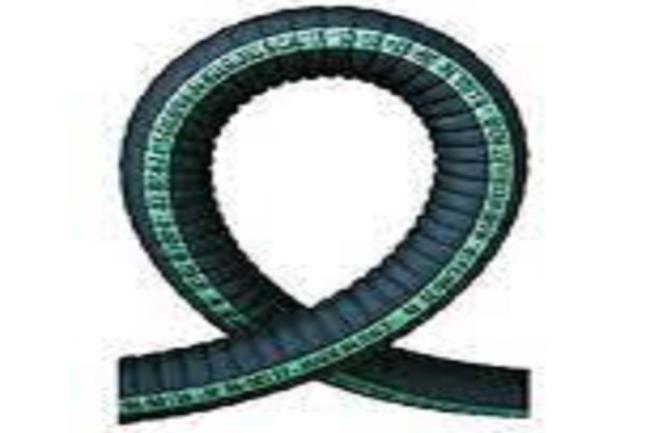

RINA APPROVED MARINE ENGINE EXHAUST PIPE
ONLINE CATALOGUE › HOSES › Nautical hoses - Off-shore umbilical hoses
Download sheet in pdf format
Flexible rubber hose suitable for the suction and delivery of cooling water and exhaust gases of marine engines and naval applications, pleasure boats within 24 metres.
Internal structure in smooth black rubber resistant to combustion gases, hot water and sea water.
High tenacity textile reinforcements inserted with double incorporated metal coil.
Cover in black corrugated rubber with anti-abrasive cloth finish, resistant to oils, heat, sea water and atmospheric agents.
Working temperature: -30° + 100° C
Working pressure 3 bar (explosion 9 bar)
REFERENCE STANDARD: SAE J 2006:2003 R2 - ISO 13363:2004 type2 class B
APPROVAL: LLOYD'S REGISTER N.96/00127 - RINANDIP. 07511CS
Available versions:
D - SMOOTH EXTERNAL / SMOOTH INTERNAL with two textile reinforcements
L/SD - SMOOTH EXTERNAL / SMOOTH INTERNAL with two textile reinforcements and steel spiral
SD - WAVY EXTERNAL / SMOOTH INTERNAL with two textile reinforcements and steel spiral
G/SD - EXTERNAL CORRUGATED / SMOOTH INTERNAL with two textile reinforcements and steel spiral
Internal structure in smooth black rubber resistant to combustion gases, hot water and sea water.
High tenacity textile reinforcements inserted with double incorporated metal coil.
Cover in black corrugated rubber with anti-abrasive cloth finish, resistant to oils, heat, sea water and atmospheric agents.
Working temperature: -30° + 100° C
Working pressure 3 bar (explosion 9 bar)
REFERENCE STANDARD: SAE J 2006:2003 R2 - ISO 13363:2004 type2 class B
APPROVAL: LLOYD'S REGISTER N.96/00127 - RINANDIP. 07511CS
Available versions:
D - SMOOTH EXTERNAL / SMOOTH INTERNAL with two textile reinforcements
L/SD - SMOOTH EXTERNAL / SMOOTH INTERNAL with two textile reinforcements and steel spiral
SD - WAVY EXTERNAL / SMOOTH INTERNAL with two textile reinforcements and steel spiral
G/SD - EXTERNAL CORRUGATED / SMOOTH INTERNAL with two textile reinforcements and steel spiral
| Code | Dimensions internal mm | Weight theoretical Kg/m | Aspiration Cafe | radius curvature mm | Length roll m |
|---|---|---|---|---|---|
| 11GVGASEXA016 | 16 | 0.57 | 0.03 | 20 | 20 |
| 11GVGASEXA020 | 20 | 057, | 0.03 | 20 | 20 |
| 11GVGASEXA025 | 25 | 0.61 | 0.03 | 25 | 20 |
| 11GVGASEXA030 | 30 | 0.68 | 0.03 | 30 | 20 |
| 11GVGASEXA032 | 32 | 0.76 | 0.03 | 32 | 20 |
| 11GVGASEXA035 | 35 | 0.82 | 0.03 | 35 | 20 |
| 11GVGASEXA038 | 38 | 0.88 | 0.03 | 38 | 20 |
| 11GVGASEXA040 | 40 | 0.92 | 0.03 | 40 | 20 |
| 11GVGASEXA045 | 45 | 1.10 | 0.03 | 45 | 20 |
| 11GVGASEXA051 | 51 | 1.16 | 0.03 | 51 | 20 |
| 11GVGASEXA055 | 55 | 1.25 | 0.03 | 55 | 20 |
| 11GVGASEXA055 | 57 | 1.27 | 0.03 | 57 | 20 |
| 11GVGASEXA060 | 60 | 1.35 | 0.03 | 60 | 20 |
| 11GVGASEXA060 | 63.5 | 1.60 | 0.03 | 63.5 | 20 |
| 11GVGASEXA070 | 70 | 1.72 | 0.03 | 70 | 20 |
| 11GVGASEXA076 | 76 | 1.95 | 0.03 | 76 | 20 |
| 11GVGASEXA080 | 80 | 2.10 | 0.03 | 80 | 20 |
| 11GVGASEXA080 | 85 | 2.30 | 0.03 | 85 | 20 |
| 11GVGASEXA090 | 90 | 2.50 | 0.03 | 90 | 20 |
| 11GVGASEXA102 | 102 | 2.96 | 0.03 | 152 | 20 |
| 11GVGASEXA105 | 105 | 3.10 | 0.03 | 230 | 20 |
| 11GVGASEXA110 | 110 | 3.20 | 0.03 | 220 | 10/20 |
| 11GVGASEXA114 | 114 | 3.30 | 0.03 | 230 | 10/20 |
| 11GVGASEXA120 | 120 | 3.45 | 0.03 | 240 | 10/20 |
| 11GVGASEXA127 | 127 | 3.65 | 0.03 | 255 | 10/20 |
| 11GVGASEXA130 | 130 | 3.80 | 0.03 | 260 | 10/20 |
| 11GVGASEXA142 | 142 | 4.10 | 0.03 | 285 | 10 |
| 11GVGASEXA152 | 152 | 4.20 | 0.03 | 305 | 10/20 |
| 11GVGASEXA155 | 155 | 4.50 | 0.03 | 465 | 10 |
| 11GVGASEXA160 | 160 | 4.80 | 0.03 | 480 | 10 |
| 11GVGASEXA168 | 168 | 5.50 | 0.03 | 500 | 10 |
| 11GVGASEXA175 | 175 | 6.20 | 0.03 | 525 | 10 |
| 11GVGASEXA185 | 180 | 6.50 | 0.03 | 720 | 10 |
| 11GVGASEXA203 | 203 | 6.90 | 0.03 | 815 | 10 |
| 11GVGASEXA254 | 254 | 8.50 | 0.03 | 1270 | 10 |
| 11GVGASEXA305 | 305 | 10.90 | 0.03 | 1830 | 10 |
