ONLINE CATALOGUE › HOSES › Nautical hoses - Off-shore umbilical hoses
Download sheet in pdf format

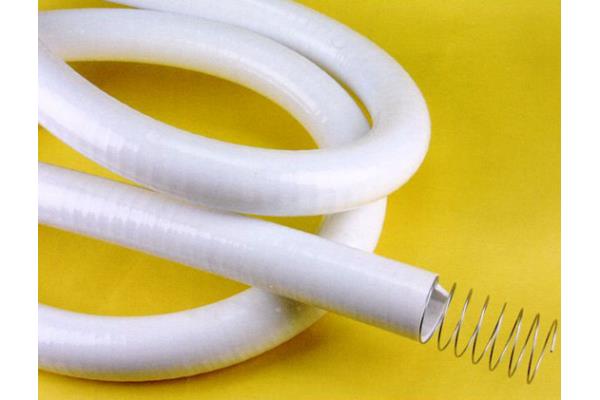

Very flexible hose for sanitary systems in plasticized PVC with reinforcement spiral in crush-proof galvanized harmonic steel, smooth internal and external surface. Resistant to the action of atmospheric agents and most chemical products.
Excellent resistance in suction and delivery.
White in color, it is non-toxic according to Ministerial Decree 21/3/73 and subsequent updates, EEC Directive 90/128 and amendments.
Operating temperature: -15° C +60° C.
Excellent resistance in suction and delivery.
White in color, it is non-toxic according to Ministerial Decree 21/3/73 and subsequent updates, EEC Directive 90/128 and amendments.
Operating temperature: -15° C +60° C.
| Item number | Dimensions Ø mm | Weight g/m | bending radius mm | Bar working pressure | Rolls m |
|---|---|---|---|---|---|
| 05METALPVC016B | 16x22.4 | 270 | 35 | 6 | 60 |
| 05METALPVC018B | 18x24.4 | 300 | 40 | 6 | 60 |
| 05METALPVC020B | 20x26.8 | 340 | 50 | 5 | 60 |
| 05METALPVC022B | 22x29.2 | 380 | 55 | 5 | 60 |
| 05METALPVC025B | 25x33 | 500 | 60 | 5 | 60 |
| 05METALPVC030B | 30x38.4 | 600 | 70 | 5 | 60 |
| 05METALPVC032B | 32x40.4 | 650 | 75 | 5 | 60 |
| 05METALPVC035B | 35x44 | 750 | 80 | 4 | 60 |
| 05METALPVC038B | 38x47 | 800 | 90 | 4 | 30 |
| 05METALPVC040B | 40x49 | 930 | 95 | 3 | 30 |
| 05METALPVC045B | 45x55 | 1150 | 110 | 3 | 30 |
| 05METALPVC050B | 50x60 | 1400 | 125 | 3 | 30 |
