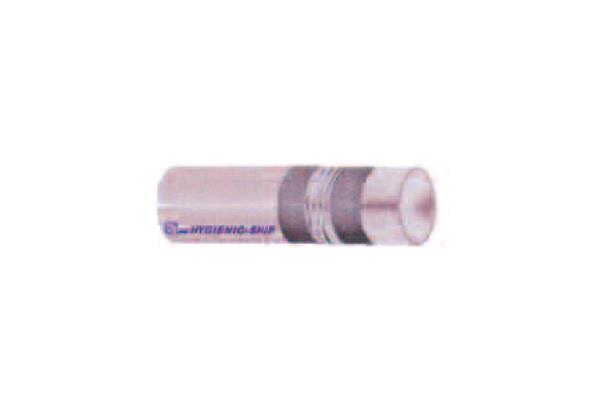

Flexible rubber hose suitable for the suction and delivery of waste water, biological tanks on board ships, bilge pumps. Internal structure in black type IIR rubber, or white on request, smooth, particularly resistant to the transmission of odors and the formation of bacterial forms. Textile reinforcements with high tenacity synthetic fabrics and incorporated metal spiral. White EPDM rubber cover with cloth finish, non-toxic, resistant to abrasion and atmospheric agents, compliant with Ministerial Decree 21.03.73 and subsequent amendments and with the FDA
Working temperature: -35° + 90° C.
Vacuum tightness 0.8/0.7 bar
Available versions: cord, smooth spiral, corrugated spiral, corrugated with sleeves at the end in use pieces.
L/BB – SMOOTH WHITE EXTERIOR/SMOOTH WHITE INTERIOR with two textile reinforcements with steel spiral
L/N.BI – SMOOTH WHITE EXTERIOR/SMOOTH BLACK INTERIOR with two textile reinforcements with steel spiral
O/N.BI – WAVY WHITE EXTERIOR/SMOOTH BLACK INTERIOR with two textile reinforcements with steel spiral
Dimension OR mm | Radius of curvature mm | Pressure of exercise Cafe |
---|
19x29 | 57 | 10 |
25x35 | 75 | 10 |
30x40 | 90 | 10 |
32x42 | 90 | 10 |
35x45 | 105 | 10 |
38x48 | 114 | 8 |
40x50 | 120 | 8 |
45x55 | 135 | 6 |
51x61 | 150 | 6 |
60x71 | 180 | 5 |
