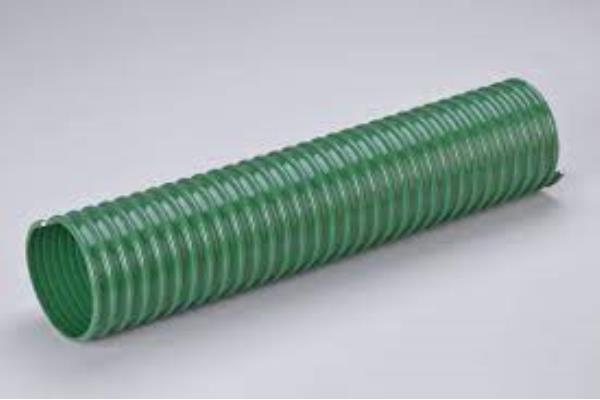

GREEN ANTISTATIC FLAMEPROOF AIR HOSE

ONLINE CATALOGUE › HOSES › Nautical hoses - Off-shore umbilical hoses

Green plasticized PVC pipe, with the addition of flame-retardant additives and shock-proof rigid PVC reinforcement spiral. The material is flame retardant according to UL94V0.
PERFECTLY SMOOTH INTERNAL SURFACE - CORRUGATED EXTERNAL SURFACE

Antistatic version with copper cord on request

USE: Industrial ventilation and air conditioning, air, fume and gas extraction, naval industry.

Operating temperature: -10° +50°C

Diameter mm	Weight g/m	Vacuum packed mH ₂ O	radius Curvature mm	Rolls m
25	160	2	32	50
32	200	2	35	50
38	250	2	45	50
40	280	2	50	50
45	350	2	55	50
50/52	430	2	60	50
60	510	1.6	70	50
63	540	1.6	70	50
70	580	1.5	90	50
76	630	1.5	100	50
80	750	1.5	110	50
90	840	1.5	130	30
100/102	980	1.3	145	30
110	1090	1,2	150	30
120	1190	1	160	30
127	1260	0.9	170	30
130	1280	0.9	170	30
140	1450	0.9	175	30
150/152	1610	0.9	180	20
160	2200	0.9	200	20
170	2510	0.9	220	20
180	2510	0.9	220	20
200/203	2990	0.9	250	20
250	3590	0.9	280	10
254	3640	0.9	290	10
300	4440	0.9	330	10
