TYGON HOSE F - 4040 - A
ONLINE CATALOGUE HOSES Hydrocarbon delivery hoses
Download sheet in pdf format
High performance fuel and lubricant hose for small engines.
Designed to resist hydrocarbons.
Specifically designed to handle most industrial fuels and lubricants.
TygonŽ Fuel and Lubricant Hose resists swelling and hardening caused by petroleum-based fluids.
hydrocarbons. This significantly reduces the risk of failure due to cracks and leaks. Its minimal extractability protects
the liquid or vapor transferred from adulterations.
Thanks to its extreme flexibility, the TygonŽ fuel and lubricant hose simplifies installation, even in confined spaces.

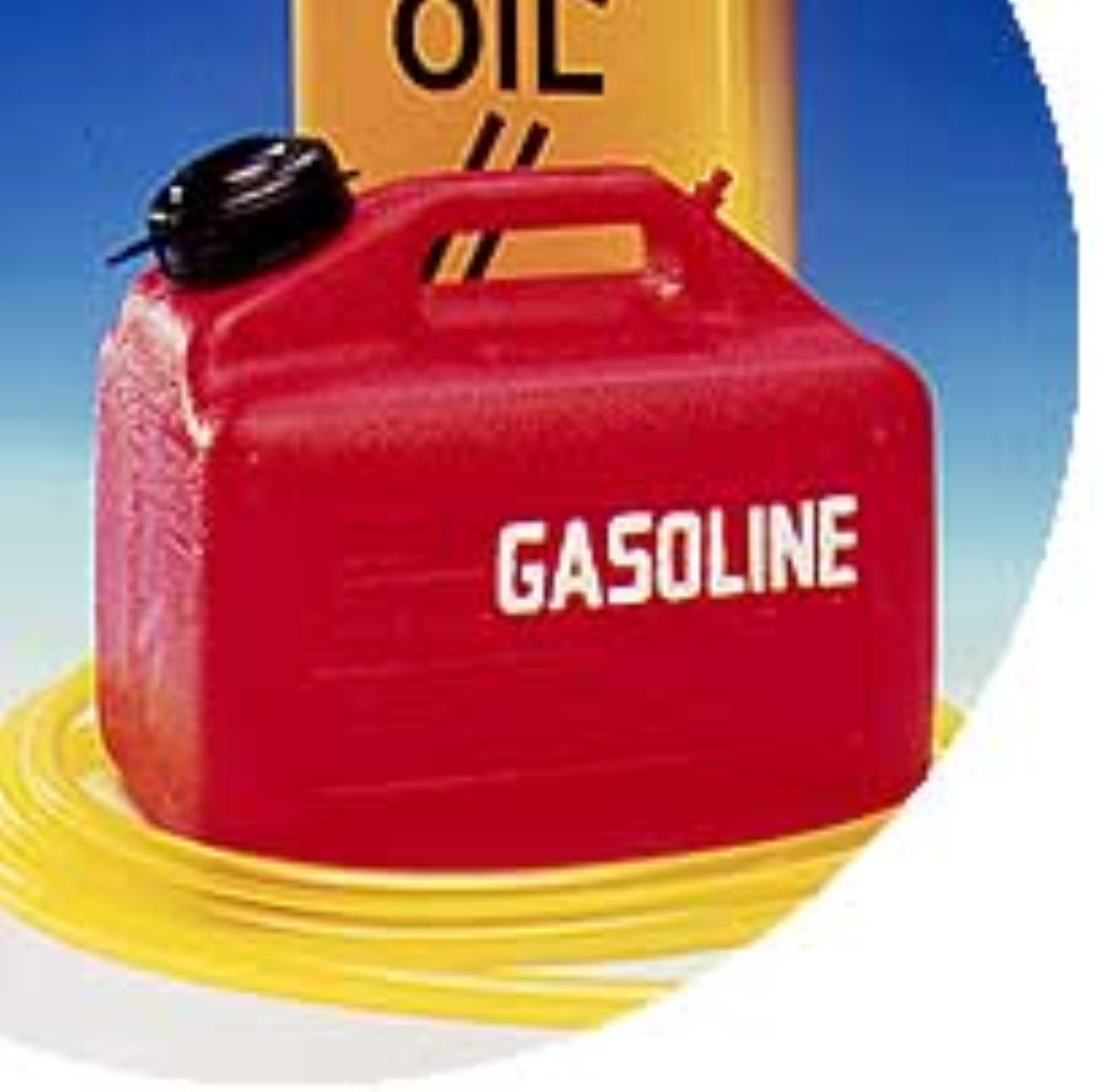

narrow. It is translucent yellow in color for immediate identification and to allow easy monitoring of flow.
It is routinely used to handle gasoline, kerosene, fuel oils, cutting compounds and glycol-based coolants. Routinely specified in fuel and lubrication applications.
With consistent performance batch after batch, TygonŽ Fuel and Lubricant Hose is the fuel hose
and most popular lubricant for a variety of applications from small engine fuel lines to coolant transfer. Other TygonŽ formulations are available to meet new permeation standards.
PACKAGED IN 50 ft ROLLS - approximately 15 metres
Typical physical properties
Designed to resist hydrocarbons.
Specifically designed to handle most industrial fuels and lubricants.
TygonŽ Fuel and Lubricant Hose resists swelling and hardening caused by petroleum-based fluids.
hydrocarbons. This significantly reduces the risk of failure due to cracks and leaks. Its minimal extractability protects
the liquid or vapor transferred from adulterations.
Thanks to its extreme flexibility, the TygonŽ fuel and lubricant hose simplifies installation, even in confined spaces.
narrow. It is translucent yellow in color for immediate identification and to allow easy monitoring of flow.
It is routinely used to handle gasoline, kerosene, fuel oils, cutting compounds and glycol-based coolants. Routinely specified in fuel and lubrication applications.
With consistent performance batch after batch, TygonŽ Fuel and Lubricant Hose is the fuel hose
and most popular lubricant for a variety of applications from small engine fuel lines to coolant transfer. Other TygonŽ formulations are available to meet new permeation standards.
PACKAGED IN 50 ft ROLLS - approximately 15 metres
| Part Number | Diameters inch | Diameters mm | Operating pressure at 23°C (psi) |
|---|---|---|---|
| AAG00700 | 2/25" - 7/50" | 2.04 - 3.56 | 40 |
| AAG00165 | 3/32" - 3/16" | 2.39 - 4.77 | 50 |
| AAG00007 | 1/8" - 1/4" | 3.18 - 6.35 | 50 |
| AAG00012 | 3/16" - 5/16" | 4.76 - 7.84 | 35 |
| AAG00017 | 1/4" - 3/8" | 6.35 - 9.52 | 30 |
| AAG00022 | 5/16" - 7/16" | 7.84 - 11.11 | 25 |
| AAG00027 | 3/8" - 1/2" | 9.52 - 12.70 | 20 |
| AAG00029 | 3/8" - 5/8" | 9.52 - 15.87 | 35 |
| AAG00032 | 7/16" - 9/16" | 11.11 - 14.29 | 15 |
| AAG00036 | 1/2" - 5/8" | 12.70 - 15.87 | 15 |
| AAG00038 | 1/2" - 3/4" | 12.70 - 19.05 | 30 |
| AAG00046 | 5/8" - 7/8" | 15.86 - 22.22 | 25 |
| AAG00053 | 3/4" - 1" | 19.05 - 25.40 | 20 |
Typical physical properties
| Property | ASTM Method | Value or rating |
| Durometer hardness, Shore A, 15s | D2240 | 57 |
| Tensile Strength, psi (MPa) | D412 | 1.820 (12,5) |
| Maximum elongation, % | D412 | 310 |
| Tear Strength, lb-f/in (kN/m) | D1004 | 167 (29.0) |
| Specific weight | D792 | 1.26 |
| Water Absorption, % at 73°F (23°C) for 24 hours | D570 | 0.49 |
| Constant deflection for permanent deformation, % at 158°F (70°C) for 22 hours | D395 Method B | 65 |
| Maximum recommended operating temperature, °F (°C) | - | 165 (74) |
| Tensile Modulus, at 100% Elongation, psi (MPa) | D412 | 910 (6.3) |
| Tensile deformation, at 75% elongation | D412 | 50 |
| Color | 0 | Yellow |
| Brittleness by impact temperature, °F (°C) | D746 | -35 (-37) |
| Dielectric strength, v/mil (kV/mm) | D149 | 403 (15.8) |
