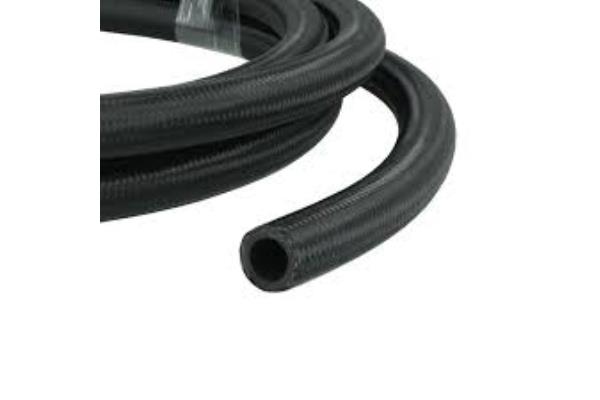

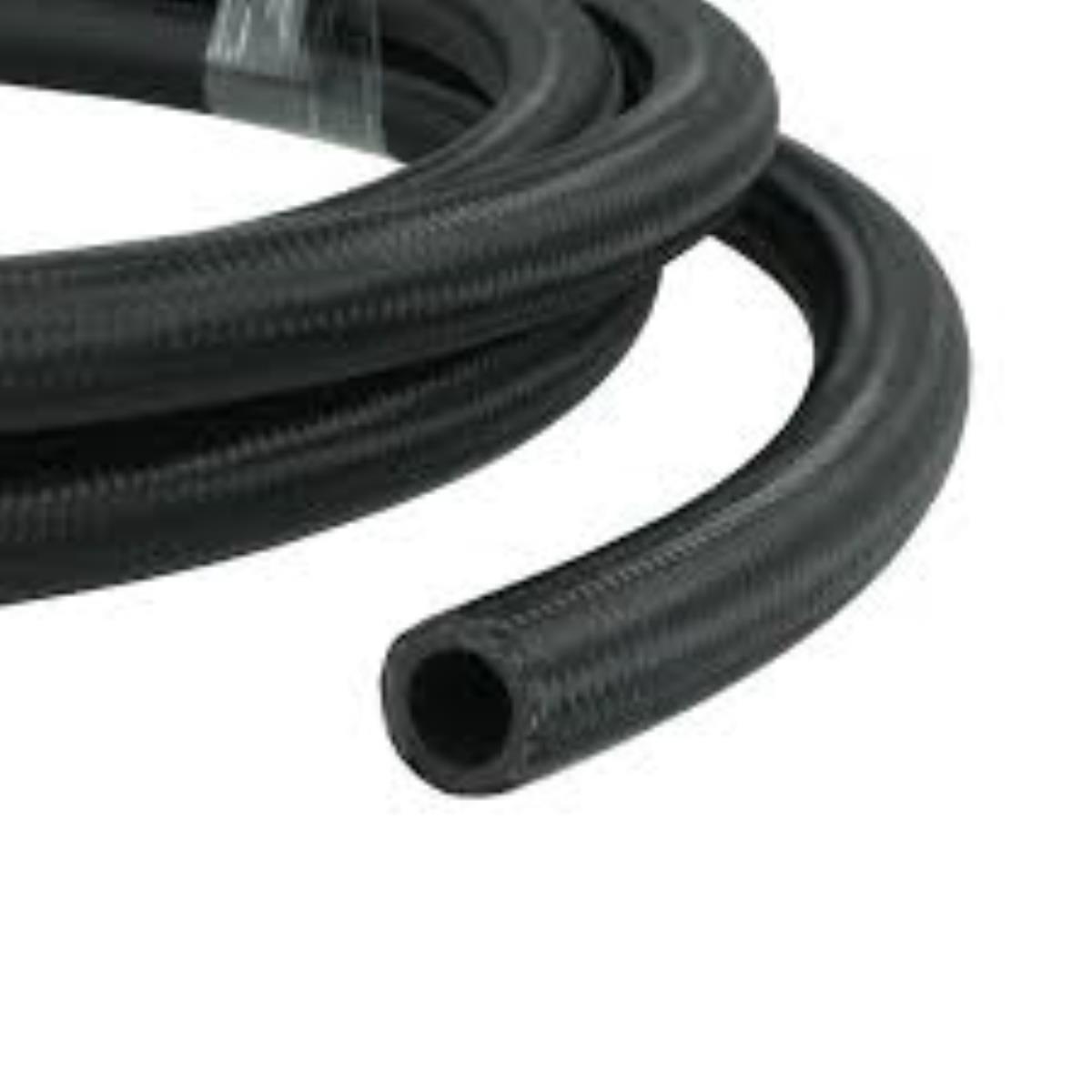

FUEL AND MINERAL OIL DELIVERY PIPE
DIN 73379 TYPE B - LONG LENGTH.
Delivery of mineral oils, lubricants, diesel and fuels
with aromatic content up to 50%.
Used in internal combustion engines.
UNDERLAYER: Black, smooth NBR rubber
REINFORCEMENT AND COVERING: Single rubberized textile braid
OPERATING TEMPERATURE: -40°C +90°C
DIN 73379 TYPE B - LONG LENGTH.
Delivery of mineral oils, lubricants, diesel and fuels
with aromatic content up to 50%.
Used in internal combustion engines.
UNDERLAYER: Black, smooth NBR rubber
REINFORCEMENT AND COVERING: Single rubberized textile braid
OPERATING TEMPERATURE: -40°C +90°C
| Internal diameter | External diameter | Weight | Operating pressure | Burst pressure | Radius of curvature | Rolls |
| mm | mm | kg/m | bar | bar | mm | m |
| 3 | 7 | 0.04 | 10 | 30 | 25 | 100 |
| 4 | 8 | 0.05 | 10 | 30 | 35 | 100 |
| 5 | 10 | 0.08 | 10 | 30 | 40 | 100 |
| 6 | 11 | 0.10 | 10 | 30 | 50 | 50 |
| 7 | 13 | 0.13 | 10 | 30 | 55 | 50 |
| 8 | 13 | 0.11 | 10 | 30 | 65 | 50 |
| 8 | 15 | 0.16 | 10 | 30 | 65 | 50 |
| 10 | 17 | 0.19 | 10 | 30 | 80 | 50 |
| 13 | 20 | 0.24 | 10 | 30 | 130 | 50 |
| 16 | 23 | 0.28 | 10 | 30 | 160 | 50 |
| 19 | 27 | 0.38 | 10 | 30 | 190 | 50 |
| 25 | 33 | 0.50 | 10 | 30 | 250 | 50 |
