SAE 100R2AT HOSE
ONLINE CATALOGUE › HOSES › Hydraulic hoses
Download sheet in pdf format
Rubber hose with double metal braid incorporated with steel reinforcement, smooth internal surface and canvas impression external surface. Rubber underlayer resistant to hydraulic, mineral and biological oils, based on polyglycol, water and mixtures of emulsified oil and water.
Synthetic rubber cover resistant to atmospheric agents and abrasion.

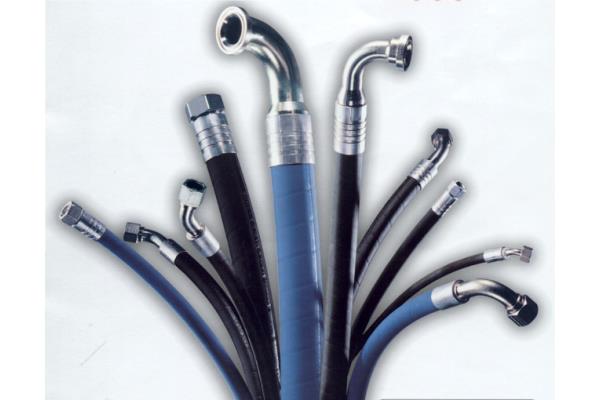

Supplied in bundles or cut to size and connected with fittings on request
Operating temperature. -40° +135° C, maximum discontinuous temperature 150° C.
Synthetic rubber cover resistant to atmospheric agents and abrasion.
Supplied in bundles or cut to size and connected with fittings on request
Operating temperature. -40° +135° C, maximum discontinuous temperature 150° C.
| Item number | DN | Dimensions Ø mm | Dimensions Ø inch | Bar working pressure | Burst pressure Bar | Curvature radius mm | Weight g/m |
|---|---|---|---|---|---|---|---|
| 13GR2T000001/4 | 6 | 6.4x14.7 | 1/4" | 400 | 1600 | 100 | 0.360 |
| 13GR2T000005/16 | 8 | 7.9x16.3 | 5/16" | 350 | 1400 | 114 | 0.400 |
| 13GR2T000003/8 | 10 | 9.5x18.7 | 3/8" | 330 | 1320 | 127 | 0.510 |
| 13GR2T000001/2 | 12 | 12.7x21.8 | 1/2" | 275 | 1100 | 178 | 0.620 |
| 13GR2T000005/8 | 16 | 15.9x25.0 | 5/8" | 250 | 1000 | 200 | 0.715 |
| 13GR2T000003/4 | 20 | 19.0x29.0 | 3/4" | 215 | 860 | 240 | 0.955 |
| 13GR2T000001 | 25 | 25.4x36.8 | 1" | 165 | 650 | 300 | 1.32 |
