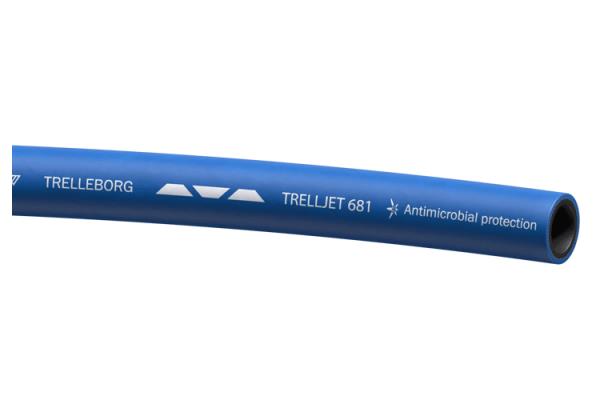

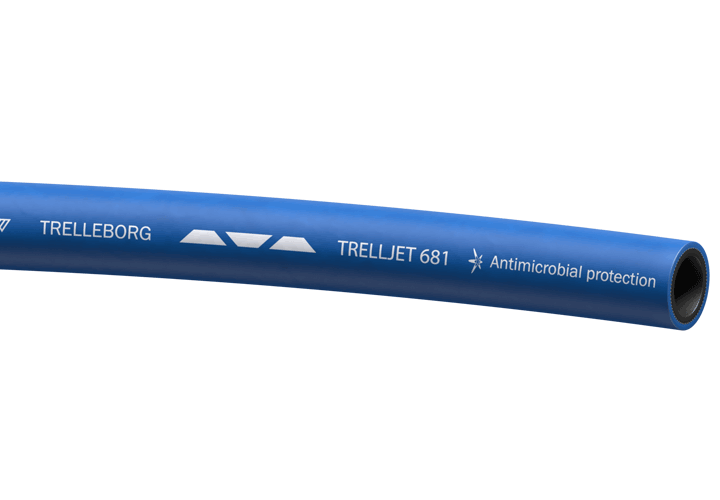

TRELLJET 681 AP TUBE



Download sheet in pdf format
Specially designed for professional and industrial high pressure cleaning.
The antimicrobial TRELLJET 681 is suitable for all environments where bacteria are involved: cleaning companies, food industries, pharmaceuticals, packaging/bottling, healthcare institutions, schools, etc. Suitable for mobile pressure washers, fixed installations and reel-mounted applications.
The tube is supplied with a Certificate of Suitability for Antimicrobial Protection.

-Crush resistant.
-Antimicrobial Protection: Prevents odors, stains, degradation and breakage caused by bacterial attack. -Smooth stain-resistant cover.
-Resistant to oil, detergents, wear and tear and atmospheric agents.
-High temperature resistance.
-Highly flexible and wrinkle resistant.
-Long lasting.

Substrate: NBR/SBR synthetic rubber, black, smooth.
Reinforcement in synthetic fabric.
Cover: NBR/SBR rubber, blue, smooth.
Operating temperature: -40° to +120°
ATTENTION! Only available in random lengths: 20 to 95 meters.
50% of the volume in each delivery will be random lengths, the shortest length will be 20m, at least 50% will be fixed length as indicated in the table.

Inner hole diameter

External diameter

Pressure
of exercise

pressure
of explosion

Radius of curvature

Weight

Length
rolls

mm

mm

bar

bar

mm

g/m

m

9.5 18.50 500 500 60 26.50 100
12.7 21.7 200 500 70 31.20 100
