HEAT PIPE/10 LL



Download sheet in pdf format

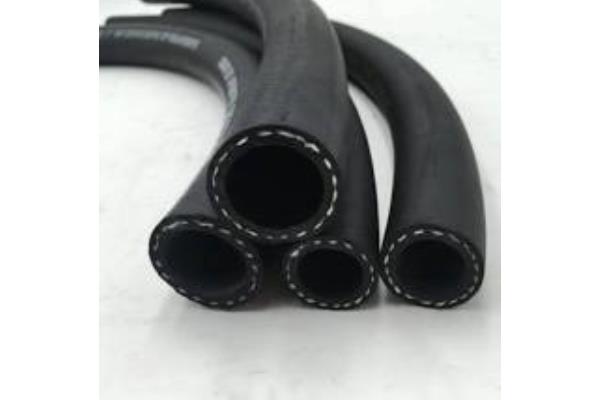

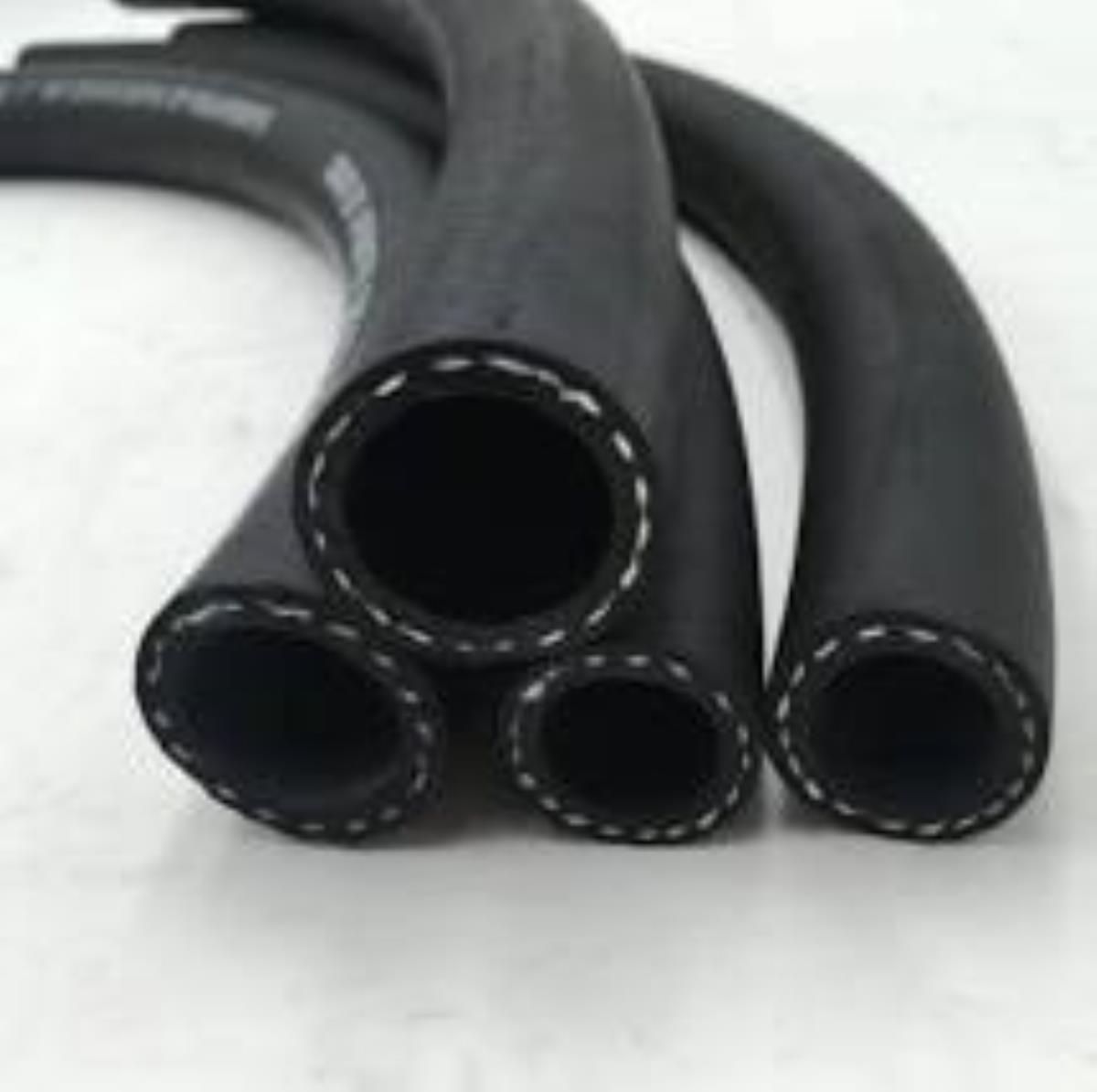

Flexible black EPDM rubber hose for hot water delivery up to 120°C at a maximum pressure of 10 bar. Log Length Structure.
APPLICATION: Delivery of hot water and medium aggressive refrigerant fluids, used in the cooling and heating circuits of cars. Also excellent for low pressure washing
TUBE: Black, smooth EPDM rubber
REINFORCEMENT: High tenacity fabrics
COVER: Black, smooth EPDM rubber, resistant to abrasion, ozone and atmospheric agents
WORKING TEMPERATURE: -40°C +120°C
diameter
internal
diameter
external
Weight Pressure
of work
Pressure
of explosion
Rolls
mm mm kg/m Cafe Cafe m
5 11 0.12 10 30 100
6 13 0.14 10 30 100
8 15 0.17 10 30 100
9 16 0.17 10 30 100
10 17 0.18 10 30 100
12 19 0.22 10 30 50
13 20 0.24 10 30 50
14 22 0.27 10 30 50
15 23 0.32 10 30 50
16 23 0.29 10 30 50
18 26 0.37 10 30 50
19 27 0.39 10 30 50
20 28 0.42 10 30 50
22 30 0.51 10 30 50
25 34 0.60 10 30 50
