VENABIO PUMP
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format

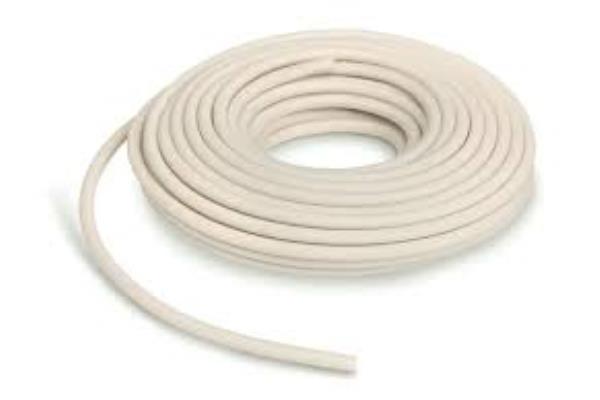

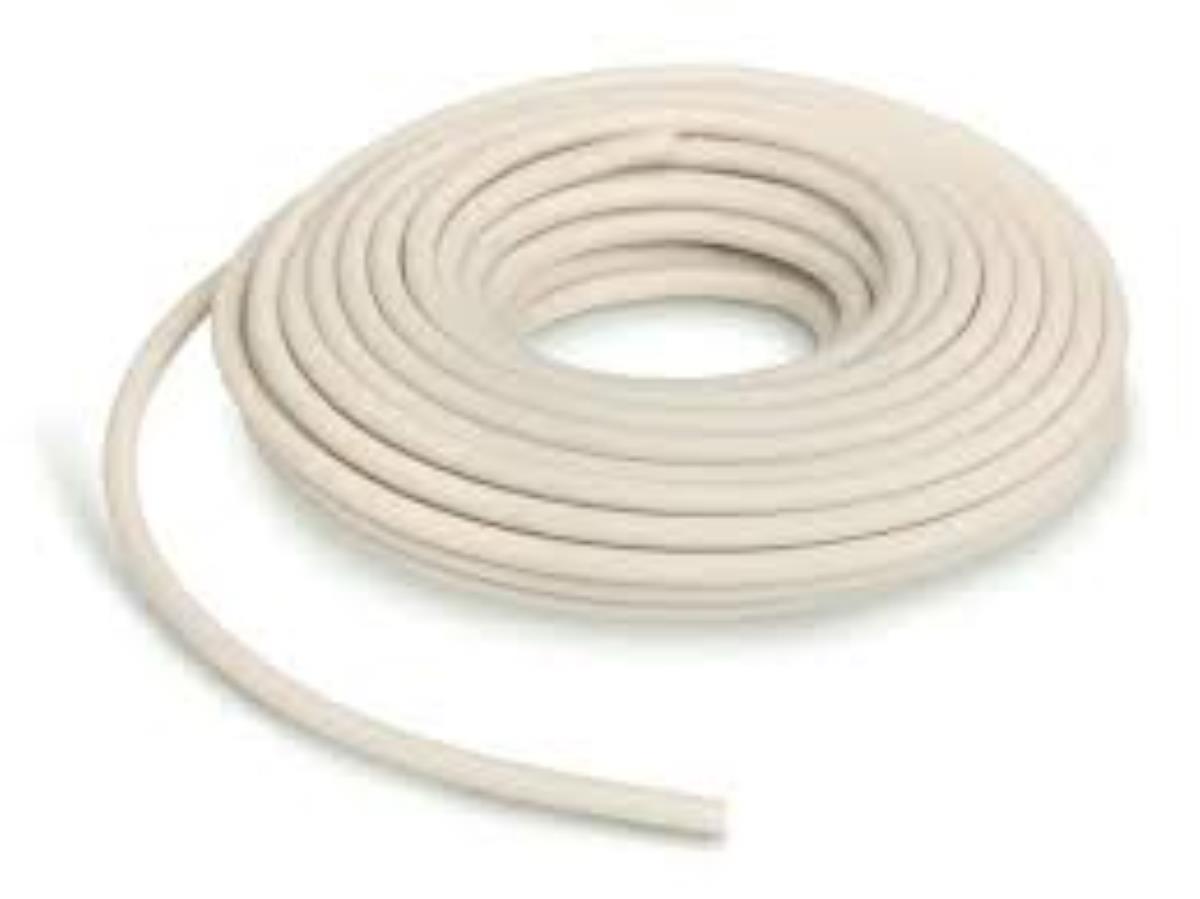

TPV thermoplastic vulcanized hose with high biocompatibility, performance and chemical resistance for long-lasting pumping cycles. Designed to withstand very long pump cycles (up to 1,000 hours) for pumping applications where other hoses need to be replaced mid-batch.
Shore A hardness 68
Tensile strength N/mm2 >4.1
Elongation % >330
Tear resistance kN/m >8
Density g/cm3 0.92
This product is specially designed to operate for a long time with high pumping cycles. The average life of the pump with correct maintenance is in the order of a thousand hours. It is important to remember that a thermoplastic material is sensitive to heat and sterilization cycles, dry heat, SIP and therefore autoclave cycles will shorten its life considerably, so it should be used when the application is single use.
Possible sterilizations: Autoclave! - CIP - SiP - Ethylene oxide - Hydrogen peroxide - eBeam (25kGy) - Gamma (25kGy) Biocompatibility: ADCF - P/BPA - BSE/TSE - FDA - 21CFR177.2600 - USP 87 - USP 88 - ISO 10993-4 - ISO 10993-5
Outer layer: Vulcanized thermoplastic
Temperature: -45°C +135°C
Production length: 7.62 and 15.24 meters
Sterilization: gamma irradiation available or autoclavableShore A hardness 68
Tensile strength N/mm2 >4.1
Elongation % >330
Tear resistance kN/m >8
Density g/cm3 0.92
This product is specially designed to operate for a long time with high pumping cycles. The average life of the pump with correct maintenance is in the order of a thousand hours. It is important to remember that a thermoplastic material is sensitive to heat and sterilization cycles, dry heat, SIP and therefore autoclave cycles will shorten its life considerably, so it should be used when the application is single use.
Possible sterilizations: Autoclave! - CIP - SiP - Ethylene oxide - Hydrogen peroxide - eBeam (25kGy) - Gamma (25kGy) Biocompatibility: ADCF - P/BPA - BSE/TSE - FDA - 21CFR177.2600 - USP 87 - USP 88 - ISO 10993-4 - ISO 10993-5
| Internal diameter mm (inches) | Outer diameter mm (inches) | Wall thickness mm (inches) |
| 1.6 (1/16") | 4.8 (3/16") | 1.6 (1/16") |
| 3.2 (1/8") | 6.4 (1/4") | 1.6 (1/16") |
| 4.8 (3/16") | 7.9 (5/16") | 1.6 (1/16") |
| 6.4 (1/4") | 9.5 (3/8") | 1.6 (1/16") |
| 6.4 (1/4") | 11.1 (7/16") | 2.34 (3/32") |
| 7.9 (5/16") | 11.1 (7/16") | 1.6 (1/16") |
| 7.9 (5/16") | 12.7 (1/2") | 2.34 (3/32") |
| 9.5 (3/8") | 14.3 (9/16") | 2.34 (3/32") |
| 9.5 (3/8") | 15.9 (5/8") | 3.2 (1/8") |
| 12.7 (1/2") | 19.1 (3/4") | 3.2 (1/8") |
