TEFLON - PTFE TUBE
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format

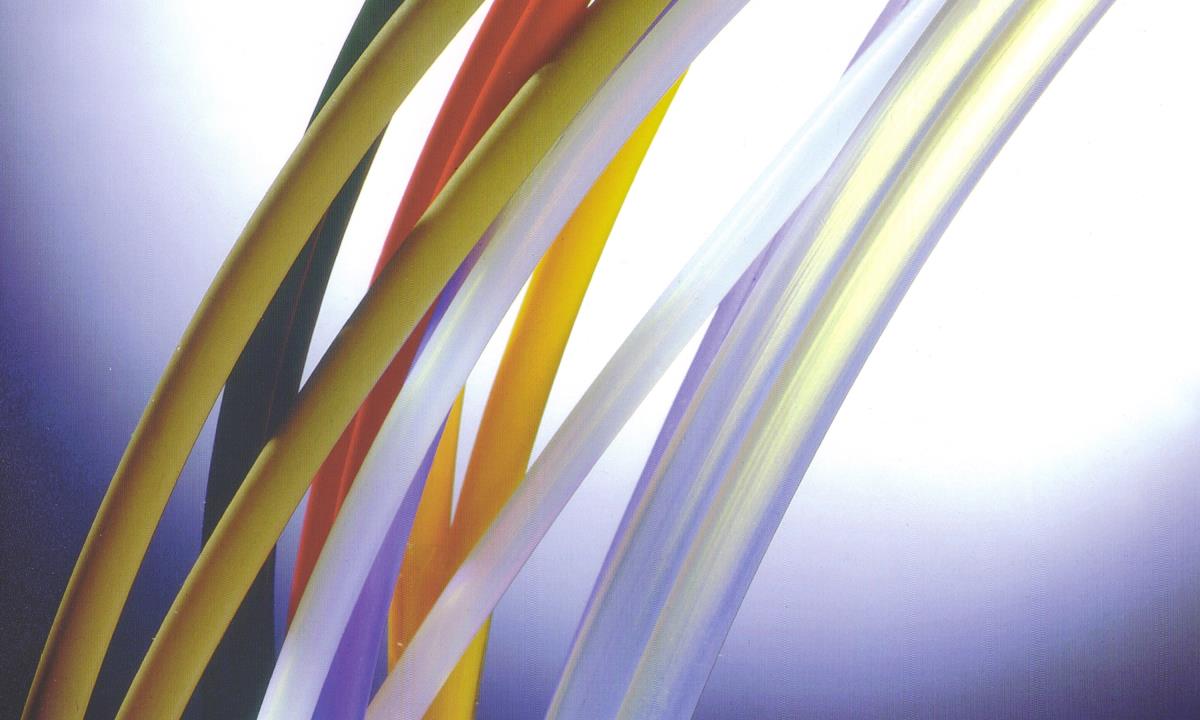

Thin wall tube in injection extruded PTFE, resistant to all chemical agents and non-toxic. TRANSLUCENT WHITE COLOR
Polymer suitable for the passage of food:
according to the RoHS directive
to FDA regulation 21 CFR 177.1550
European Regulation (EU) No. 10/2011
USP Class VI REGULATION
Excellent resistance to chemicals, heat, excellent dielectric properties, remains unchanged in contact with ozone and ultraviolet rays.
Operating temperature:-70° +260° C.
Tolerances according to BS EN ISO 13000-1par.4.2.5.
AVAILABLE ON REQUEST IN COLOURED VERSION
AVAILABLE ON REQUEST IN ANTISTATIC VERSION

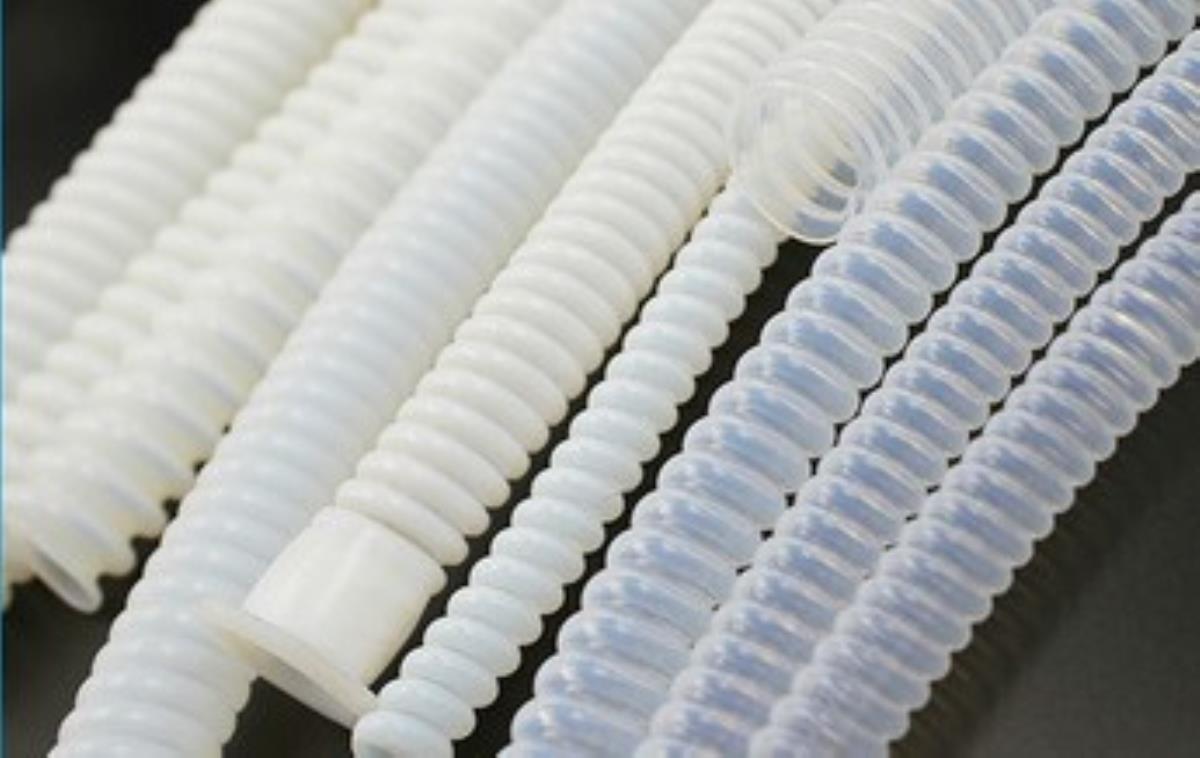

AVAILABLE ON REQUEST IN SPRING SPIRAL VERSION
DIMENSIONAL TOLERANCE TABLES ON INTERNAL DIAMETER - ON WALL THICKNESS - PHYSICAL RELATIONSHIP BETWEEN PTEMPERATURE AND PRESSURE
Polymer suitable for the passage of food:
according to the RoHS directive
to FDA regulation 21 CFR 177.1550
European Regulation (EU) No. 10/2011
USP Class VI REGULATION
Excellent resistance to chemicals, heat, excellent dielectric properties, remains unchanged in contact with ozone and ultraviolet rays.
Operating temperature:-70° +260° C.
Tolerances according to BS EN ISO 13000-1par.4.2.5.
AVAILABLE ON REQUEST IN COLOURED VERSION
AVAILABLE ON REQUEST IN ANTISTATIC VERSION
AVAILABLE ON REQUEST IN SPRING SPIRAL VERSION
DIMENSIONAL TOLERANCE TABLES ON INTERNAL DIAMETER - ON WALL THICKNESS - PHYSICAL RELATIONSHIP BETWEEN PTEMPERATURE AND PRESSURE
| DIAMETER INTERNAL | TOLERANCE | THICKNESS WALL | TOLERANCE | TEMPERATURE | PRESSURE | ||
| mm | mm | mm | mm | up to 23°C | 100% | ||
| 1.5 < 5 | +/- 0.10 | 0.50 | 0.10 | up to 50°C | 85% | ||
| 5.1 < 7 | +/- 0.15 | 1.00 | 0.15 | up to 100°C | 65% | ||
| 7.1 < 10 | +/- 0.20 | 1.50 | 0.17 | up to 150°C | 50% | ||
| 10.1 < 15 | +/- 0.30 | 2.00 | 0.20 | up to 200°C | 35% | ||
| 15.1 < 20 | +/- 0.40 | 2.50 | 0.25 | up to 250°C | 25% | ||
| 20.1 < 26 | +/- 0.60 | 3.00 | 0.30 | - | - |
| Code | Dimensions ØixØe mm | Thickness from the wall mm | Weight per meter gr/m | Minimum bend radius mm | Operating pressure bar | Pressure of explosion bar |
|---|---|---|---|---|---|---|
| 10PTFE001,5/3.2 | 1.5x3.2 | 0.85 | 13.8 | 12 | 35 | 110 |
| 10PTFE002/03 | 2.0X3.0 | 0.50 | 8.6 | 18 | 23 | 70 |
| 10PTFE002/04 | 2.0X4.0 | 1.00 | 20.5 | 16 | 35 | 110 |
| 10PTFE002,5/04 | 2.5X4.0 | 0.75 | 16.8 | 21 | 25 | 80 |
| 10PTFE002,7/04 | 2.7X4.0 | 0.65 | 15.0 | 25 | 21 | 65 |
| 10PTFE003/04 | 3.0x4.0 | 0.50 | 12.1 | 32 | 16 | 50 |
| 10PTFE003/05 | 3.0x5.0 | 1.00 | 27.6 | 25 | 28 | 85 |
| 10PTFE003/06 | 3.0x6.0 | 1.50 | 46.6 | 24 | 35 | 110 |
| 10PTFE003,2/6,35 | 3.2x6.36 | 1.58 | 52.4 | 20 | 35 | 110 |
| 10PTFE004/05 | 4.0x5.0 | 0.50 | 15.5 | 50 | 13 | 40 |
| 10PTFE004/06 | 4.0x6.0 | 1.00 | 34.5 | 36 | 23 | 70 |
| 10PTFE004/08 | 4.0x8.0 | 2.00 | 82.9 | 32 | 35 | 110 |
| 10PTFE4.35/6.35 | 4.35x6.35 | 1.00 | 37.0 | 40 | 21 | 65 |
| 10PTFE005/07 | 5.0x7.0 | 1.00 | 41.4 | 49 | 20 | 60 |
| 10PTFE005/08 | 5.0x8.0 | 0.75 | 67.4 | 43 | 25 | 80 |
| 10PTFE005/09 | 5.0x9.0 | 2.00 | 97.7 | 40 | 31 | 95 |
| 10PTFE006/07 | 6.0x7.0 | 0.50 | 22.5 | 98 | 8 | 25 |
| 10PTFE006/08 | 6.0x8.0 | 1.00 | 48.4 | 64 | 16 | 50 |
| 10PTFE006/09 | 6.0x9.0 | 1.50 | 77.7 | 54 | 23 | 70 |
| 10PTFE006/10 | 6.0x10 | 2.00 | 110.5 | 50 | 28 | 85 |
| 10PTFE6.35/9.52 | 6.35x9.52 | 1.57 | 82.9 | 60 | 21 | 65 |
| 10PTFE007/09 | 7.0x9.0 | 1.00 | 55.3 | 81 | 13 | 40 |
| 10PTFE007/10 | 7.0x10 | 1.50 | 88.1 | 67 | 20 | 60 |
| 10PTFE008/09 | 8.0x9.0 | 0.50 | 29.4 | 162 | 6 | 20 |
| 10PTFE008/10 | 8.0x10 | 1.00 | 62.2 | 100 | 13 | 40 |
| 10PTFE008/12 | 8.0x12 | 2.00 | 138.2 | 72 | 23 | 70 |
| 10PTFE009/12 | 9.0x12 | 1.50 | 108.8 | 96 | 16 | 50 |
| 10PTFE010/12 | 10x12 | 1.00 | 76.0 | 144 | 10 | 30 |
| 10PTFE010/13 | 10x13 | 1.50 | 119.2 | 113 | 15 | 45 |
| 10PTFE010/14 | 10x14 | 2.00 | 165.8 | 98 | 18 | 55 |
| 10PTFE011/13 | 11x13 | 1.00 | 82.9 | 169 | 10 | 30 |
| 10PTFE011/15 | 11x15 | 2.00 | 179.6 | 113 | 16 | 50 |
| 10PTFE012/14 | 12x14 | 1.00 | 89.8 | 196 | 8 | 25 |
| 10PTFE013/15 | 13x15 | 1.00 | 96.7 | 225 | 8 | 25 |
| 10PTFE013/16 | 13x16 | 1.50 | 150.2 | 170 | 11 | 35 |
| 10PTFE014/16 | 14x16 | 1.00 | 103.6 | 256 | 6 | 20 |
| 10PTFE015/18 | 15x18 | 1.50 | 171.0 | 216 | 10 | 30 |
| 10PTFE016/18 | 16x18 | 1.00 | 117.4 | 324 | 6 | 20 |
| 10PTFE016/19 | 16x19 | 1.50 | 181.3 | 241 | 10 | 30 |
| 10PTFE016/20 | 16x20 | 2.00 | 248.7 | 200 | 13 | 40 |
| 10PTFE017/20 | 17x20 | 1.50 | 191.7 | 267 | 8 | 25 |
| 10PTFE018/20 | 18x20 | 1.00 | 131.3 | 400 | 5 | 15 |
| 10PTFE019/22 | 19x22 | 1.50 | 212.4 | 323 | 6 | 20 |
| 10PTFE020/22 | 20x22 | 1.00 | 145.1 | 484 | 5 | 15 |
| 10PTFE022/25 | 20x25 | 1.50 | 243.5 | 417 | 6 | 20 |
| 10PTFE023/25 | 23x25 | 1.00 | 165.8 | 625 | 5 | 15 |
| 10PTFE025/28 | 25x28 | 1.50 | 274.6 | 523 | 5 | 15 |
| 10PTFE026/30 | 26x30 | 2.00 | 386.8 | 450 | 6 | 20 |
| 10PTFE028/30 | 28x30 | 1.00 | 200.3 | 900 | 4 | 12 |
| 10PTFE030/32 | 30x32 | 1.00 | 214.1 | 1024 | 4 | 12 |
