STAINLESS STEEL BRAIDED SMOOTH TEFLON-PTFE HOSE
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format
Injection extruded sintered PTFE tube resistant to all chemical agents and non-toxic, food grade mix. Excellent resistance to chemicals, flame, heat, excellent dielectric and flame retardant properties, unchanged in contact with ozone and ultraviolet rays.
Operating temperature:-70° +260° C.
Tolerances to BS EN ISO 13000-1:1998

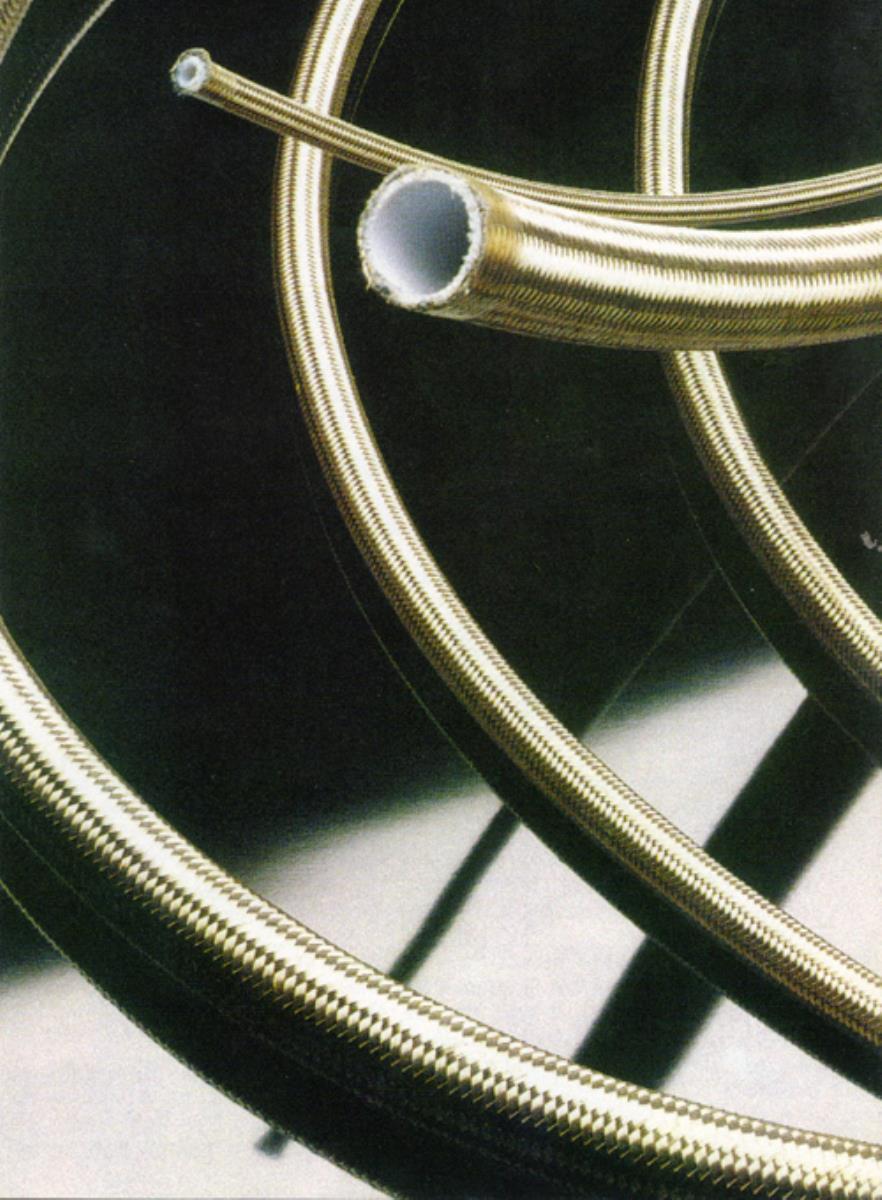

Standard version smooth tube with external AISI 304 stainless steel braid.
Other versions with the possibility of inserting textile braids: in fibreglass or terylene or Nomex or with stainless steel braid
Also available on request in a version with black ANTISTATIC underlayer for use in ATEX zones.
| Diameters inch | Diameters mm | Weight g/m | Pressure of work bar | Pressure of explosion bar | radius of curvature mm |
|---|---|---|---|---|---|
| 1/8" | 3.2x5.9 | 60 | 270 | 1080 | 25 |
| 3/16" | 4.8x7.4 | 69 | 200 | 800 | 35 |
| 1/4" | 6.35x9 | 87 | 175 | 700 | 45 |
| 5/16" | 7.9x10.8 | 127 | 150 | 600 | 50 |
| 3/8" | 9.5x12.4 | 145 | 135 | 540 | 60 |
| 13/32" | 10.3x13.3 | 158 | 130 | 520 | 70 |
| 1/2" | 12.7x15.7 | 212 | 120 | 480 | 90 |
| 5/8" | 15.9x19.1 | 260 | 100 | 400 | 120 |
| 3/4" | 19x22,2 | 321 | 90 | 360 | 190 |
| 7/8" | 22.2x25.6 | 355 | 70 | 280 | 250 |
| 1" | 25.4x29.3 | 450 | 65 | 260 | 270 |
