SPIRAL PIPEPOLICHIM/UPE-W/16 ATEX-FDA
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format
4 TIMES SAFETY FACTOR FOR INTERNAL DIAMETERS LESS THAN 75 mm

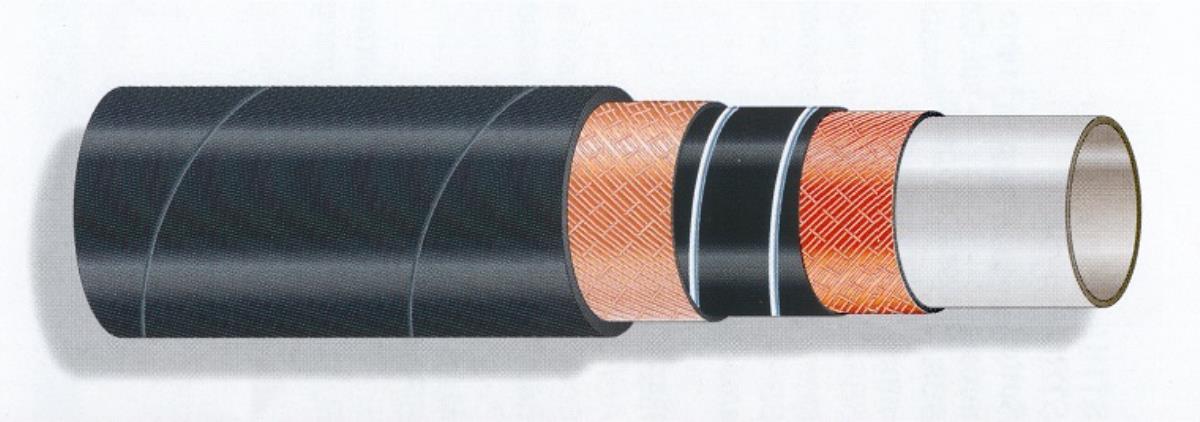

3 TIMES SAFETY FACTOR FOR INTERNAL DIAMETERS OVER 75 mmVersatile and multipurpose hose for the delivery and suction of many chemical and food products thanks to the food grade WHITE UPE (Extra High Molecular Weight, Density Polyethylene) tube and black helical band in Smooth antistatic UPE (R<10 6 O).
Complies with the legislation for the regulation of food fluids:
FDA, Ministerial Decree 03.21.73 and subsequent amendments, EU Regulation no. 10/2011.
The structure is completed by high-resistance synthetic textile inserts, a helical steel spiral and, upon request, copper cables for electrical conductivity.
Implementation standard EN 12115:2011
Hose approved by the INERIS institute for use in ATEX areas with certificate n° INERIS-16-AM-341
Electric wall resistance R<10 6 O -
Conductivity guaranteed by the connection of the copper cable if requested in the offer phase
TEMPERATURE OF USE: maximum 130° for 30 minutes
MAXIMUM WORKING PRESSURE 16 BAR
4 TIMES SAFETY FACTOR FOR INTERNAL DIAMETERS LESS THAN 75 mm
3 TIMES SAFETY FACTOR FOR INTERNAL DIAMETERS OVER 75 mm
Vacuum resistance equal to -0.90 bar
Packed in standard 40 meter rolls, other sizes on request
Possibility of supply in sizes for use with sleeves or in corrugated, corrugated, CLC form.
3 TIMES SAFETY FACTOR FOR INTERNAL DIAMETERS OVER 75 mmVersatile and multipurpose hose for the delivery and suction of many chemical and food products thanks to the food grade WHITE UPE (Extra High Molecular Weight, Density Polyethylene) tube and black helical band in Smooth antistatic UPE (R<10 6 O).
Complies with the legislation for the regulation of food fluids:
FDA, Ministerial Decree 03.21.73 and subsequent amendments, EU Regulation no. 10/2011.
The structure is completed by high-resistance synthetic textile inserts, a helical steel spiral and, upon request, copper cables for electrical conductivity.
Implementation standard EN 12115:2011
Hose approved by the INERIS institute for use in ATEX areas with certificate n° INERIS-16-AM-341
Electric wall resistance R<10 6 O -
Conductivity guaranteed by the connection of the copper cable if requested in the offer phase
TEMPERATURE OF USE: maximum 130° for 30 minutes
MAXIMUM WORKING PRESSURE 16 BAR
4 TIMES SAFETY FACTOR FOR INTERNAL DIAMETERS LESS THAN 75 mm
3 TIMES SAFETY FACTOR FOR INTERNAL DIAMETERS OVER 75 mm
Vacuum resistance equal to -0.90 bar
Packed in standard 40 meter rolls, other sizes on request
Possibility of supply in sizes for use with sleeves or in corrugated, corrugated, CLC form.
| INTERNAL DIAMETER mm | OUTER DIAMETER mm | WALL THICKNESS mm | BURST PRESSURE Cafe | RADIUS OF CURVATURE mm | THEORETICAL WEIGHT Kg/m |
| 19 | 31 | 6.0 | 64 | 125 | 0.65 |
| 25 | 37 | 6.0 | 64 | 150 | 0.75 |
| 32 | 44 | 6.0 | 64 | 175 | 1.00 |
| 38 | 51 | 6.5 | 64 | 225 | 1.30 |
| 50 | 66 | 8.0 | 64 | 275 | 2.10 |
| 51 | 67 | 8.0 | 64 | 275 | 2.15 |
| 63.5 | 79.5 | 8.0 | 64 | 300 | 2.60 |
| 75 | 91 | 8.0 | 64 | 350 | 3.10 |
| 76 | ninety two | 8.0 | 48 | 350 | 3.15 |
| 100 | 118 | 9.0 | 48 | 450 | 4.90 |
| 102 | 120 | 9.0 | 48 | 450 | 5.00 |
