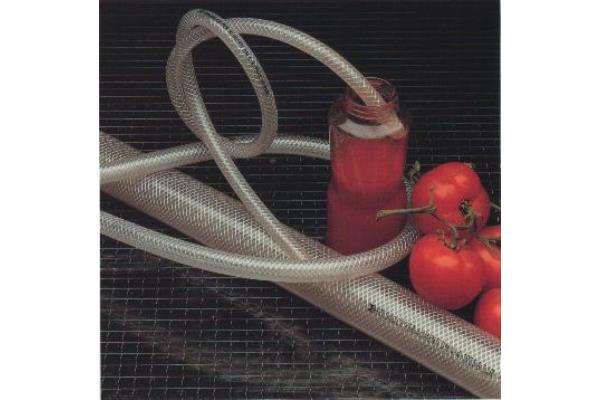

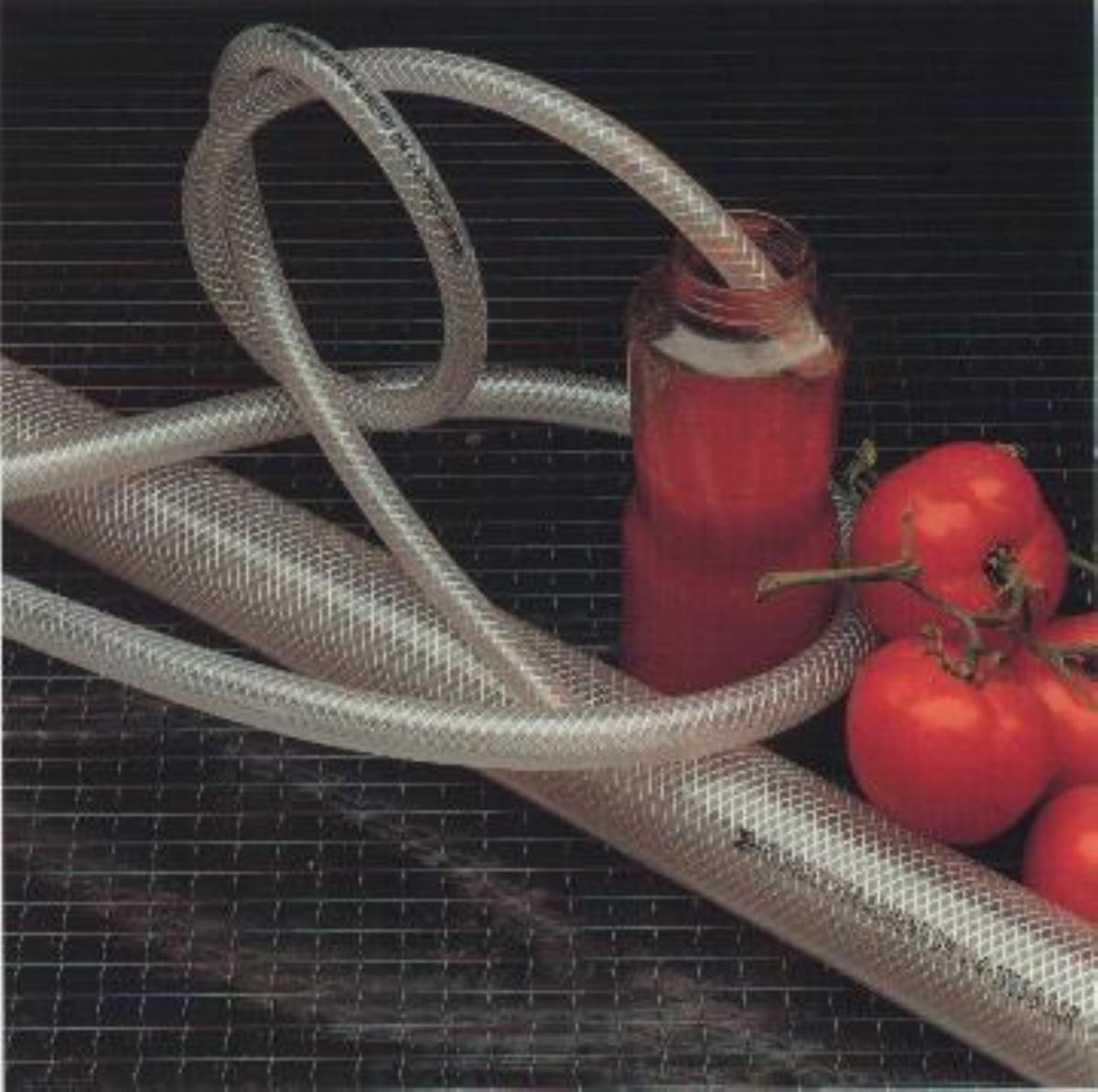

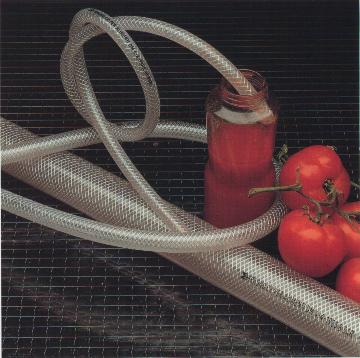

SPIDER TUBE CR

ONLINE CATALOGUE › HOSES › Hoses for food products

Plasticized PVC hose with polyester fiber reinforcement, for delivery of cooling liquids, chemical solutions, foods and compressed air. Excellent flexibility, smooth surfaces, abrasion resistance, without Ortho Phthalates.
SUITABLE FOR EU FOODS ACCORDING TO DDC RULES
Working temperature: -5°+60°C Chemical resistance as per PVC tables

Ø INTERNAL mm	Ø EXTERNAL mm	PRESSURE At T23°	PRESSURE AT 40°	PRESSURE AT 60°	RADIUS OF CURVATURE	ROLL meters
4	10	20	16	12	12	100
6	12	20	16	12	17	100
6	14	20	16	12	15	100
8	14	18	9	9	25	100
8	17	18	9	9	22	100
9	15	18	9	9	32	100
10	16	18	9	9	30	100
12	18	12	6	6	35	50
13	19	12	6	6	52	50
15	21	10	4	4	60	50
15	23	10	4	4	60	50
16	22	10	4	4	60	50
19	26	10	4	4	70	50
22	30	8	3	3	85	50
25	33	8	3	3	110	50
30	38	8	3	3	170	50
32	42	8	2	2	200	50
35	45	8	2	2	250	50
38	48	8	2	2	300	50
40	50	8	2	2	350	50
50	62	8	2	2	450	25
