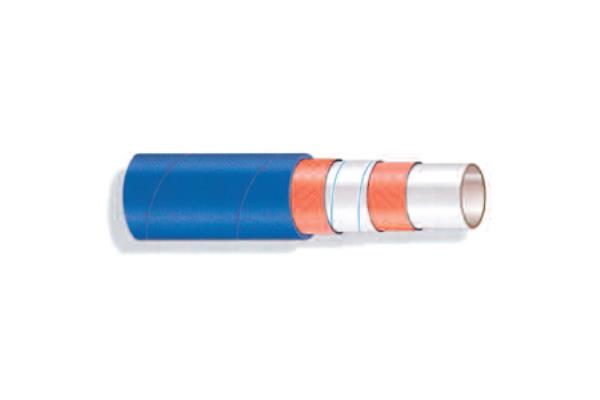

MULTIFOOD TUBE - C



Download sheet in pdf format
Multipurpose hose in white IIR rubber suitable for the delivery and suction of various liquids used in human nutrition such as: drinking water, milk and derivatives, yogurt, vegetable and animal fatty substances, wines, musts, fruit juices, beer, cider, vinegar, alcohol up to 96%. Designed for decanting tanks and processing plants, filling food liquids.

Underlayer:
in odorless and tasteless white rubber in smooth white BUTYL without welding to avoid bacterial propagation, resistant to cleaning with detergents and sterilization suitable for maintaining the flavor and scent of the fluid conveyed.
Reinforcement structure:
braided synthetic wire and steel spiral embedded in the wall.
Coverage:
BLUE color with canvas imprint, resistant to ozone and atmospheric agents.
Smooth surface with canvas imprint

  • Operating temperature -20 +120°C steam sterilization up to 130°C maximum for thirty minutes.
  • Operating pressure 10 bar - burst 30 bar.
  • Maximum suction at 0.9 bar.

Standards and approvals according to :
American legislation guidelines FDA 21 CFR 177.2600
Directives of the German legislation BfR Empfelung XXI Category 2
Directives 3-A Sanitary Standards 18-03
Directives DM 03.21.1973 and subsequent amendments

FREE FROM THE PRESENCE OF PHTHALATES.

Can be connected with CLAMP – DIN – GAROLLA fittings - stainless steel FLANGES.
Fixing fittings with clamps, pressed ring nuts, band-it tape
or assembled with vulcanized fittings.

Sold in 40 meter rolls or joined in pieces for joined use.

Code
Diameters
Øi x Øe
mm
Radius of
curvature
mm
Aspiration
Cafe
Weight
Kg/m
05GCITER019 19x31 40 0.9 0.63
05GCITER025 25x37 55 0.9 0.77
05GCITER032 32x44 70 0.9 0.92
05GCITER035 35x47 75 0.9 1.01
05GCITER038 38x52 80 0.9 1.32
05GCITER040 40x54 85 0.9 1.38
05GCITER051 51x65 110 0.9 1.84
05GCITER060 60x76 130 0.8 2.41
05GCITER063 63x79 140 0.8 2.51
05GCITER076 76x92 170 0.8 2.85
05GCITER080 80x96 180 0.7 3.00
05GCITER102 102x122 220 0.7 4.82
