MULTIFOOD TUBE - AND MULTIPURPOSE
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format
Multipurpose hose suitable for the delivery or suction of FATTY FOOD products.
I transfer milk, wines, musts, fruit juices, water, beer, cider, vinegar and alcohol.
Sterilization at 110°C maximum for thirty minutes
Operating pressure 10 bar - burst 30 bar
Maximum suction at 0.9 bar
Standards and approvals:
FDA title 21 art.177.2600 (f) for fatty foods, BfR, ADI free, DM 21/03/73, CE 1935/2004.
40 meter rolls
Connectable with fittings on request type CLAMP – DIN – GAROLLA - stainless steel FLANGES
Fixing fittings with cable ties, pressed rings, band-it tape
I transfer milk, wines, musts, fruit juices, water, beer, cider, vinegar and alcohol.

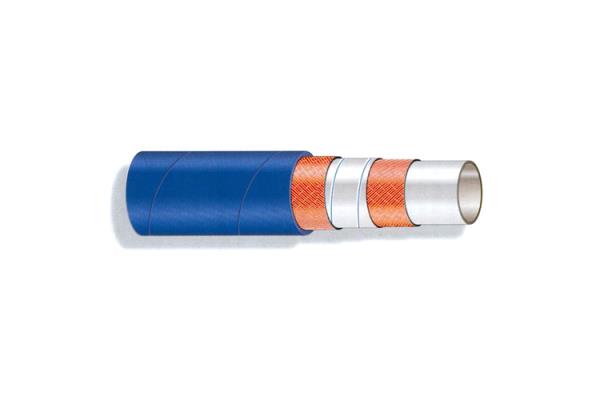

- Smooth, odorless and tasteless white EPDM rubber underlayer to prevent bacterial growth, resistant to cleaning with detergents and sterilization at temperatures of 140°.
- Armor with braided synthetic wire and steel spiral embedded in the wall.
- EPDM cover in BLUE colour with canvas print, resistant to ozone, atmospheric agents and abrasion.
- MULTIFOOD-EG version with corrugated square "frecata" covering for minimum curvature radii.
Sterilization at 110°C maximum for thirty minutes
Operating pressure 10 bar - burst 30 bar
Maximum suction at 0.9 bar
Standards and approvals:
FDA title 21 art.177.2600 (f) for fatty foods, BfR, ADI free, DM 21/03/73, CE 1935/2004.
40 meter rolls
Connectable with fittings on request type CLAMP – DIN – GAROLLA - stainless steel FLANGES
Fixing fittings with cable ties, pressed rings, band-it tape
| item | OR | Radius of curvature | Weight Kg/m |
|---|---|---|---|
| 05MULTIFOODE019 | 19x29 | 80 | 0.67 |
| 05MULTIFOODE025 | 25x35 | 125 | 0.80 |
| 05MULTIFOODV030 | 30x42 | 150 | 1.11 |
| 05MULTIFOODV032 | 32x44 | 160 | 1.23 |
| 05MULTIFOODV038 | 38x50 | 190 | 1.38 |
| 05MULTIFOODV040 | 40x52 | 200 | 1.40 |
| 05MULTIFOODV045 | 45x57 | 230 | 1.62 |
| 05MULTIFOODV051 | 51X64 | 255 | 1.88 |
| 05MULTIFOODV060 | 60x73 | 300 | 2.24 |
| 05MULTIFOODV063 | 63.5X76 | 320 | 2.60 |
| 05MULTIFOODV065 | 65x79 | 325 | 2.66 |
| 05MULTIFOODV070 | 70x83 | 390 | 2.86 |
| 05MULTIFOODV076 | 76x90 | 440 | 3.00 |
| 05MULTIFOODV080 | 80x93 | 450 | 3.17 |
| 05MULTIFOODV090 | 90x104 | 500 | 4.08 |
| 05MULTIFOODV102 | 102x118 | 560 | 4.60 |
