MULTIFOOD-B HOSE for drinking water
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format
Butyl Substrate designed exclusively for use in transfer systems for food liquids, water, production of raw and pasteurized beer, cider, wine, whey, fruit juices, liquids for food use in general with a high alcohol content (up to 96%). Suitable for transferring from tanks, tankers and container processing and filling systems.
Free from plasticizers and phthalates .
Exceptional flexibility and handling, lightweight, stain-resistant cover even in the crush-proof version.

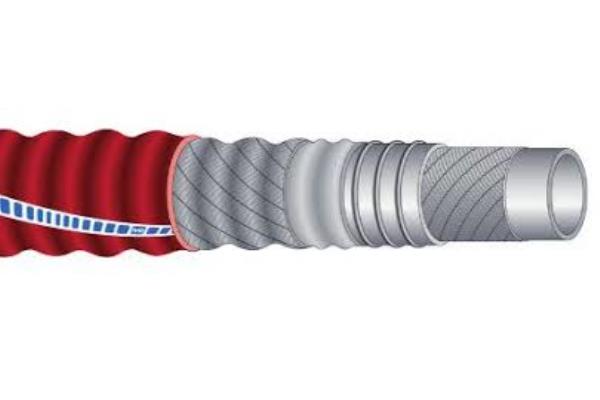

Underlayer:
Odorless and tasteless white rubber in BUTYL BIIR (code 90FDA), smooth mirror finish (without welding) to prevent bacterial spread, resistant to cleaning with detergents and to sterilization at temperatures of 130° for a maximum of 30 minutes.
Armor:
heat-resistant synthetic textile inserts with embedded steel spiral
Coverage:
RED semi-corrugated stain-resistant EPDM rubber with canvas impression, stain-resistant, resistant to ozone and atmospheric agents, canvas impression surface.
Operating temperature -40° +120°C
Operating pressure 10 bar - burst 30 bar (safety factor 3)
Maximum suction at -0.5bar
Standards and approvals :
Substrate completely free from plasticizers, phthalates and animal derivatives reduces the risk of bacterial proliferation and the danger of contamination of the conveyed product.
Complies with European Regulation 1935/2004
Regulation 1907/2006/EC (REACH)
Complies with the directives of the American legislation FDA 21 CFR 177.2600
The pipes can be connected on request with fittings such as:
CLAMP – DIN – GAROLLA - Rotating stainless steel FLANGES with stainless steel folder - Vulcanized Fittings
Fixing fittings using: normal or heavy clamps, stainless steel pressed rings, band-it tape,
SPANNLOC JAWS (colored white-blue-red-black)
| Code | Dimensions SMOOTH VERSION mm | Radius of curvature mm | Weight theoretical Kg/m |
|---|---|---|---|
| 05MULTIFOODB025 | 25x37 | 70 | 0.81 |
| 05MULTIFOODB032 | 32x42 | 75 | 1.00 |
| 05MULTIFOODB038 | 38x48 | 80 | 1.15 |
| 05MULTIFOODV040 | 40x50 | 80 | 1.20 |
| 05MULTIFOODV051 | 51x64 | 100 | 1.63 |
| 05MULTIFOODV060 | 60x73 | 120 | 1.83 |
| 05MULTIFOODV063 | 63.5x76.5 | 130 | 1.99 |
| 05MULTIFOODV070 | 70x85 | 140 | 2.36 |
| 05MULTIFOODV076 | 76x91 | 150 | 2.55 |
| 05MULTIFOODV080 | 80x95 | 160 | 2.67 |
Other diameters and shapes on request. Possibility of sleeves at the ends for size of use and connection of flanges and various fittings.
