METAL PU HOSE - FOOD GRADE
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format

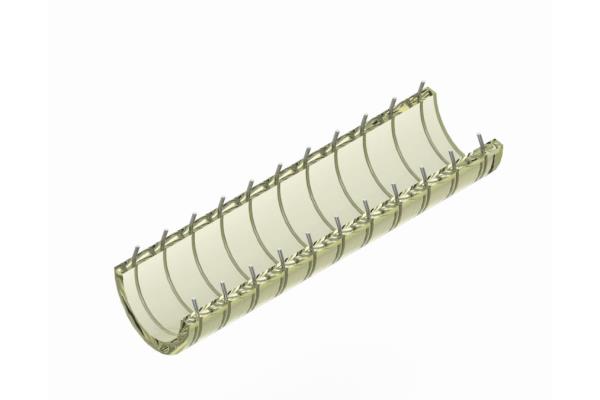

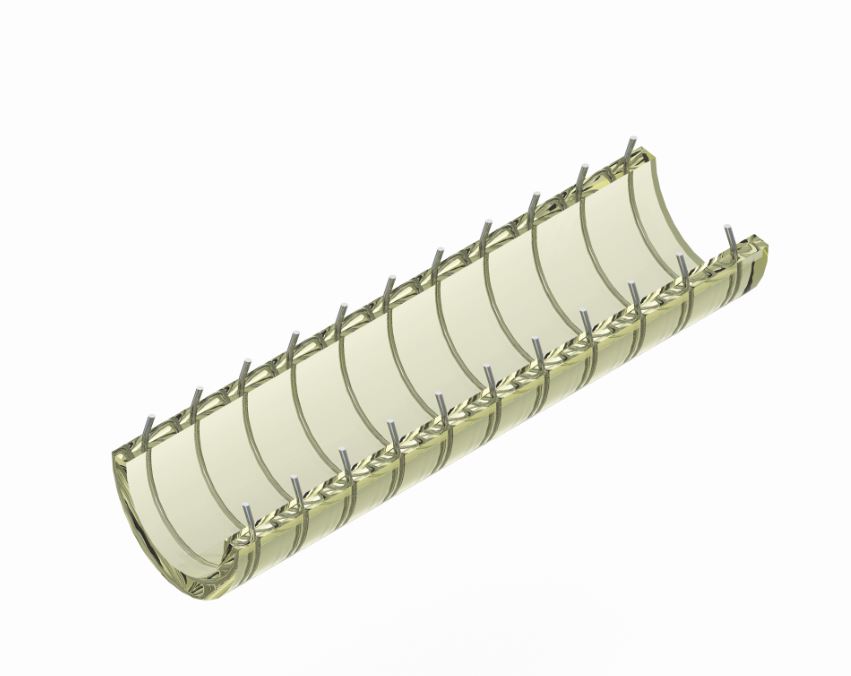

Transparent ether-based polyurethane tube with steel reinforcement spiral.
Completely smooth internal and external surface to facilitate the passage of substances and for easier cleaning and disinfection before and after use.
Highly impervious to odors and flavors, it preserves the organoleptic properties of the transported substances.
Excellent resistance to hydrolysis and microbial attacks. Curing-free material.
It can be made conductive by grounding the spiral.
Suitable for the suction of highly abrasive and food grade liquids, dusts and granules
(flours, sugar, salt, dried fruit); transport of liquid foods, olive oil and fatty foods,
pharmaceutical liquids with an alcohol concentration of up to 20%.
Operating temperatures: -40°C +80°C
Food grade according to European legislation EU Regulation 10/2011 (classes A, B, C, D2, E)
Completely smooth internal and external surface to facilitate the passage of substances and for easier cleaning and disinfection before and after use.
Highly impervious to odors and flavors, it preserves the organoleptic properties of the transported substances.
Excellent resistance to hydrolysis and microbial attacks. Curing-free material.
It can be made conductive by grounding the spiral.
Suitable for the suction of highly abrasive and food grade liquids, dusts and granules
(flours, sugar, salt, dried fruit); transport of liquid foods, olive oil and fatty foods,
pharmaceutical liquids with an alcohol concentration of up to 20%.
Operating temperatures: -40°C +80°C
Food grade according to European legislation EU Regulation 10/2011 (classes A, B, C, D2, E)
| Code | Internal Ø | Weight | Operating pressure | Burst pressure | Empty | radius of curvature | roll |
| mm | gr.m | Cafe | Cafe | mH2O | mm | m | |
| 05METALPU020 | 20 | 400 | 5 | 15 | 8 | 80 | 50 |
| 05METALPU025 | 25 | 520 | 7 | 21 | 9 | 105 | 50 |
| 05METALPU030 | 30 | 620 | 7 | 21 | 9 | 125 | 50 |
| 05METALPU040 | 40 | 900 | 6 | 18 | 8 | 165 | 50 |
| 05METALPU051 | 51 | 1160 | 6 | 18 | 8 | 210 | 50 |
| 05METALPU060 | 60 | 1440 | 6 | 18 | 8 | 250 | 50 |
| 05METALPU070 | 70 | 1650 | 5 | 15 | 8 | 310 | 50 |
| 05METALPU075 | 75 | 1730 | 5 | 15 | 7 | 330 | 50 |
| 05METALPU080 | 80 | 1800 | 4 | 12 | 7 | 350 | 30 |
| 05METALPU100 | 100 | 3250 | 3 | 9 | 7 | 410 | 30 |
