FOOD SAFE PLATINUM SILICONE HOSE



Download sheet in pdf format

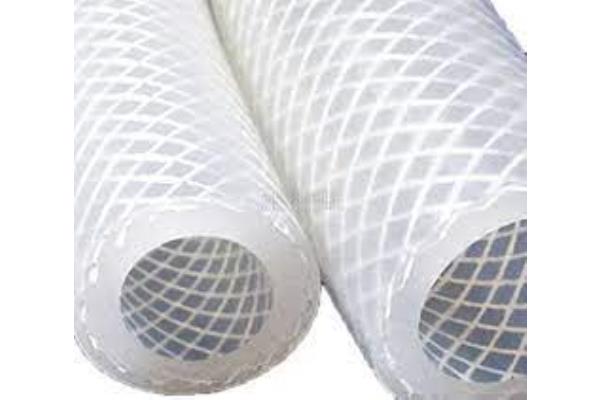

Flexible PLATINUM silicone hoses produced by extrusion with a polyester thread woven inside the hose. Applications:
suitable for the transport of high purity liquids in the food, cosmetic, chemical and pharmaceutical industries. It offers an extremely broad field of application. The design strikes a balance between strength and lightness, making it easy to handle. They can be used in high pressure places due to its resistance. Thanks to its translucent appearance, the product inside the tube is visible during the process phase.
Can be used in single delivery or light suction.

Characteristics:

  • Odorless, tasteless and completely non-toxic.http://www.ebay.it/
  • Can be equipped with stainless steel fittings
  • The standard manufacturing length is 25 meters
  • Temperature: -60ºC (-75ºF) to +180ºC (356ºF)
  • Hardness 70° shore (A)
  • Density 1.22 Kg/mC
  • Tensile breaking load 38 KN/m
  • Maximum elongation 450%
  • Dielectric Strength: 22 KV/mm

Structure:
Translucent and smooth interior and exterior. Extrusion construction with polyester yarn inside the tube.
The silicone used for food and pharmaceutical products is transparent.
REFERENCE STANDARDS: Standard US FDA 2007/19/EC A+B+C: AS2069 EC1935/2004 (A,B,C,D1)

CODE
diameter
internal

mm
diameter
external

mm
pressure of
exercise

Cafe
10SILRT04X09FDA 4.0 9.0 40
10SILRT05X11FDA 5.0 11.0 25
10SILRT06,3X12,3FDA 6.30 12.3 20
10SILRT09,5X16,5FDA 9.50 16.5 12
10SILRT12,7X20,7FDA 12.7 20.7 7
10SILRT16X24FDA 16 24 5
10SILRT19X28FDA 19 28 8
10SILRT25X35FDA 25 35 7
10SILRT32X42FDA 32 42 5
10SILRT38X48FDA 38 48 5
