FOOD GRADE SILICONE HOSE
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format

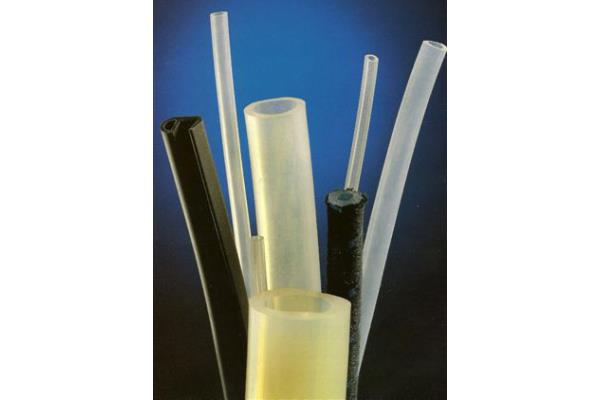

Silicone is a soft and transparent elastomer that can be extruded into many diameters. It is possible to load its compound to make it colored and resistant for countless industrial applications. The chemical and physical characteristics are excellent especially in the food sector.
The silicone tube is suitable for contact with the indicated foods:
in the table of annex 11 of Ministerial Decree 26.04.93 n° 220
in BGA XVin FDA;2007/19/EC A+B+C:AS 2069
in EC 1935/2004 (A,B,C,D1)
Available in PLATINICAL or PEROXIDE version.
The silicone tube is suitable for contact with the indicated foods:
in the table of annex 11 of Ministerial Decree 26.04.93 n° 220
in BGA XVin FDA;2007/19/EC A+B+C:AS 2069
in EC 1935/2004 (A,B,C,D1)
Available in PLATINICAL or PEROXIDE version.
Mechanical hardness approximately 70 +/-5 Shore A
Transparent neutral standard colour, other colors on request
Transparent neutral standard colour, other colors on request
Operating temperature: FROM -50° to +200° C
The Certifications are delivered together with the supply if requested in advance.
Standard packs of 50 meters (25m upon availability)
The Certifications are delivered together with the supply if requested in advance.
Standard packs of 50 meters (25m upon availability)
| Dimensions mm | Weight g/m |
|---|---|
| 2x4 | 12 |
| 2x6 | 32 |
| 3x5 | 16 |
| 3x6 | 27 |
| 4x6 | 20 |
| 4x7 | 33 |
| 4x8 | 47 |
| 4x10 | 24 |
| 5x8 | 39 |
| 5x9 | 55 |
| 5x10 | 55 |
| 6x8 | 28 |
| 6x9 | 45 |
| 6x10 | 63 |
| 6x12 | 73 |
| 7x10 | 32 |
| 8x10 | 36 |
| 8x12 | 80 |
| 8x14 | 90 |
| 9x12 | 62 |
| 9x13 | 87 |
| 9x14 | 97 |
| 9x16 | 107 |
| 10x12 | 44 |
| 10x14 | 95 |
| 10x16 | 105 |
| 12x15 | 80 |
| 12x16 | 111 |
| 12x17 | 125 |
| 14x18 | 127 |
| 16x20 | 143 |
| 18x24 | 168 |
| 20x26 | 184 |
| 20x28 | 208 |
| 22x28 | 190 |
| 25x33 | 103 |
| 28x38 | 287 |
| 30x40 | 283 |
