ARMORVIN HNA PLUS code 913940



Download sheet in pdf format

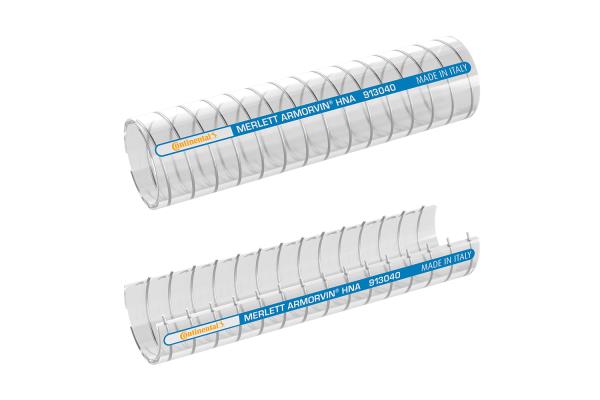

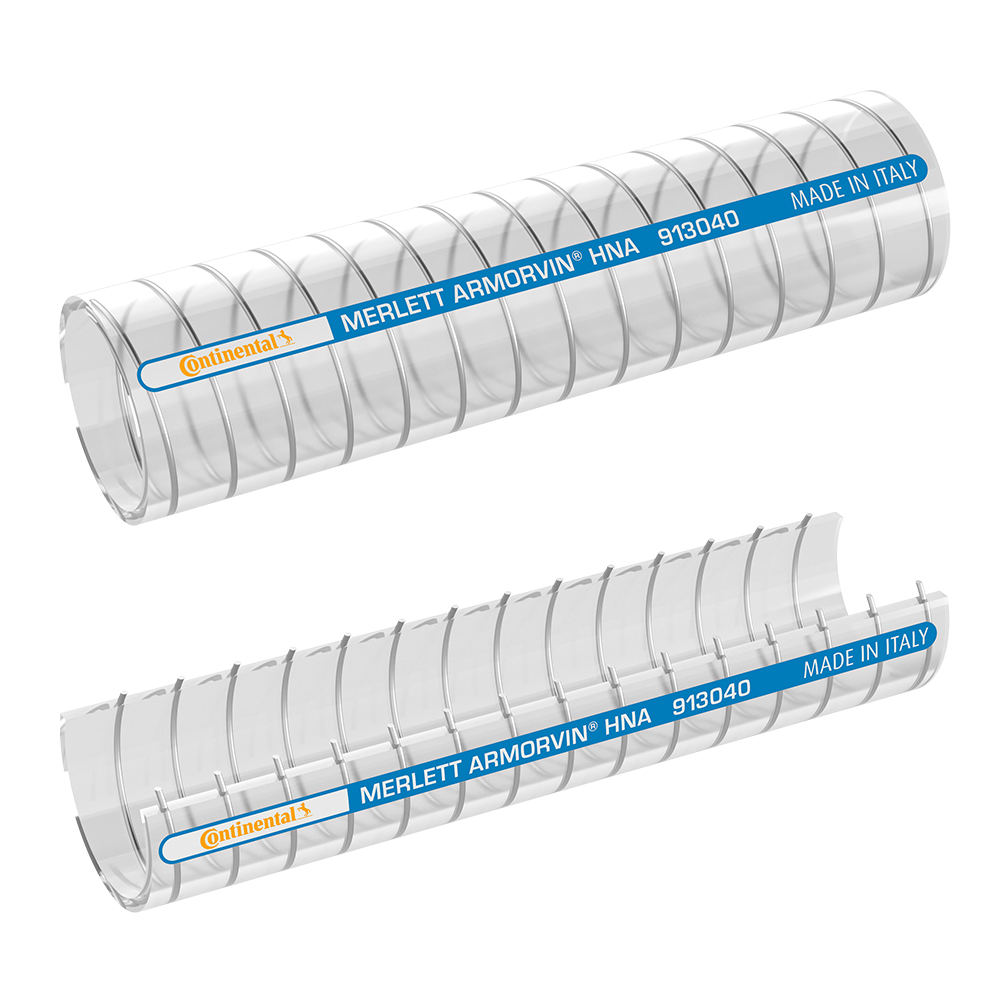

Plasticized PVC pipe with built-in galvanized steel spiral,
for suction and delivery of food liquids and alcohol up to 20%.
Suitable for contact with food according to EU regulation 10/2011
and subsequent updates, with simulants A, B, C, and D1.

Transparent tube with minimum bending radius and high resistance
to depression.

Ideal for the passage of food liquids, both acidic and alcoholic
concentration of 50% and the dairy products for which i
simulants A, B, C, D1. Passage of drinking water, foods in general,
in machinery with vacuum applications, granulate suction, dosers
in the food and nautical industries.








Internal diameter Diameter
external
vacuum-packed
at 23 °C
Operating pressure
at 23°C
Burst pressure
at 23°C
radius
of curvature
total thickness spiral step weight roll length
mm mm m / h2O Cafe Cafe mm mm mm g/m m
10 16 8.5 7.0 21.0 20 3.0 6.5 155 60
12 18 8.5 7.0 21.0 25 3.0 7 180 60
14 20 8.5 6.0 18.0 30 3.0 7.5 200 60
16 22 8.5 6.0 18.0 35 3.0 7.5 225 60
18 24.5 8.5 6.0 18.0 40 3.25 8 280 60
19 26 8.5 5.0 15.0 45 3.5 8 310 60
20 27 8.5 5.0 15.0 50 3.5 8 340 60
22 29 8.5 5.0 15.0 55 3.5 8.5 360 60
25 33 8.5 5.0 15.0 60 4.0 13.5 510 60
30 39 8.5 4.5 13.5 70 4.5 13.5 600 60
32 41 8.5 4.5 13.5 75 4.5 13.5 650 60
35 44 8.5 4.0 12.0 80 4.5 14.5 730 60
38 47 8.5 4.0 12.0 90 4.5 15 800 30
40 49.5 8.5 3.0 9.0 95 4.75 15 870 30
45 55 8.0 3.0 9.0 110 5.0 15 1100 30
50 60 8.0 3.0 9.0 125 5.0 16 1200 30
55 66 8.0 3.0 9.0 130 5.5 16.5 1380 30
60 72 8.0 2.5 7.5 140 6.0 20 1800 30
63 75 8.0 2.5 7.5 150 6.0 20 1880 30
70 83 8.0 2.0 6.0 170 6.5 20 2200 30
75 89 7.0 2.0 6.0 200 7.0 20 2500 30
80 94 7.0 2.0 6.0 220 7.0 20 2700 30
90 104 7.0 2.0 6.0 260 7.0 20 2900 30
100 114 7.0 2.0 6.0 300 7.0 19 3250 30
