WIND HOSE PU/Medium - antistatic - food grade
ONLINE CATALOGUE › HOSES › Hoses for food grade abrasive fluids
Download sheet in pdf format

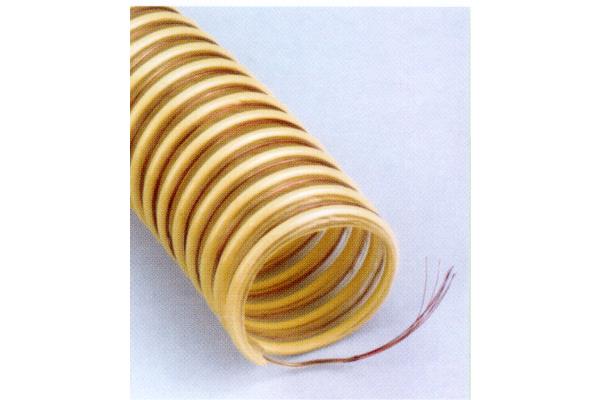

Transparent wall tube entirely in ether-based TPU (ester-based on request) with ivory-coloured shockproof rigid PVC reinforcement spiral. Perfectly smooth food grade interior.
With a corrugated external appearance, the tube is very light and flexible with notable resistance to abrasion and bending, complete with electrical cable for electrical conductivity.
Wall thickness from 0.40 to 0.80 mm
Resists many chemicals and microbial and hydrolytic attacks.
FDA approval CFR 21-Item 177.2600 [dry (d), aqueous (e) and fatty (f) foods] EU Reg. 10/2011 approval (classes A,B,C, D2 and dry foods)
Suitable for the food industry for the transport of powders and dry abrasive substances, even hot ones up to a maximum temperature of +80° or up to -40°C.
Also available in the non-antistatic version (without incorporated copper wire)
Polyurethane leaf thickness:
from Ø 20 to Ø32 thickness 0.40mm
from Ø 35 to Ø80 thickness 0.50mm
from Ø 90 to Ø130 thickness 0.60mm
from Ø140 to Ø150 thickness 0.70mm
from Ø160 to Ø300 thickness 0.80mm
With a corrugated external appearance, the tube is very light and flexible with notable resistance to abrasion and bending, complete with electrical cable for electrical conductivity.
Wall thickness from 0.40 to 0.80 mm
Resists many chemicals and microbial and hydrolytic attacks.
FDA approval CFR 21-Item 177.2600 [dry (d), aqueous (e) and fatty (f) foods] EU Reg. 10/2011 approval (classes A,B,C, D2 and dry foods)
Suitable for the food industry for the transport of powders and dry abrasive substances, even hot ones up to a maximum temperature of +80° or up to -40°C.
Also available in the non-antistatic version (without incorporated copper wire)
Polyurethane leaf thickness:
from Ø 20 to Ø32 thickness 0.40mm
from Ø 35 to Ø80 thickness 0.50mm
from Ø 90 to Ø130 thickness 0.60mm
from Ø140 to Ø150 thickness 0.70mm
from Ø160 to Ø300 thickness 0.80mm
| Code | Dimension mm | Weight g/m | Depression mH2O | Curvature radius mm | Rolls m |
|---|---|---|---|---|---|
| 11PVPUVENTOMA020A | 20x25.6 | 115 | 2.5 | 25 | 20 |
| 11PVPUVENTOMA025A | 25x30.6 | 140 | 2.5 | 30 | 20 |
| 11PVPUVENTOMA030A | 30x35.6 | 160 | 2.5 | 35 | 20 |
| 11PVPUVENTOMA032A | 31.8x37.6 | 180 | 2 | 35 | 20 |
| 11PVPUVENTOMA035A | 35x41 | 200 | 2 | 45 | 20 |
| 11PVPUVENTOMA038A | 38.x44.2 | 220 | 2 | 50 | 20 |
| 11PVPUVENTOMA040A | 40x46.2 | 230 | 2 | 60 | 20 |
| 11PVPUVENTOMA045A | 45x51.2 | 270 | 2 | 65 | 20 |
| 11PVPUVENTOMA050A | 50.8x57.2 | 320 | 2 | 70 | 20 |
| 11PVPUVENTOMA055A | 55x62.2 | 400 | 2 | 75 | 20 |
| 11PVPUEVNTOMA060A | 60x67.4 | 470 | 1.6 | 80 | 20 |
| 11PVPUEVNTOMA063A | 63.5x71.3 | 510 | 1.6 | 80 | 20 |
| 11PVPUVENTOMA070A | 70x78.4 | 550 | 1.6 | 95 | 30 |
| 11PVPUVENTOMA076A | 76.2x84.6 | 600 | 1.6 | 100 | 30 |
| 11PVPUVENTOMA080A | 80x89 | 650 | 1.6 | 110 | 30 |
| 11PVPUVENTOMA090A | 90x99.2 | 750 | 1.4 | 125 | 30 |
| 11PVPUVENTOMA100A | 100X109.6 | 820 | 1.3 | 140 | 30 |
| 11PVPUVENTOMA110A | 110x120.2 | 950 | 1,2 | 150 | 30 |
| 11PVPUVENTOMA120A | 120x130 | 1100 | 1.0 | 160 | 30 |
| 11PVPUVENTOMA127A | 127x137.6 | 1150 | 1.0 | 170 | 30 |
| 11PVPUVENTOMA130A | 130x141.0 | 1300 | 0.9 | 170 | 20 |
| 11PVPUVENTOMA140A | 140x151.2 | 1430 | 0.9 | 180 | 20 |
| 11PVPUVENTOMA150A | 151.5x162.9 | 1500 | 0.8 | 200 | 20 |
| 11PVPUVENTOMA152A | 152.4x164 | 1520 | 0.8 | 200 | 20 |
| 11PVPUVENTOMA160A | 160x174.4 | 1940 | 0.7 | 220 | 20 |
| 11PVPUVENTOMA180A | 180x194.2 | 2140 | 0.4 | 250 | 20 |
| 11PVPUVENTOMA200A | 200x214.6 | 2300 | 0.4 | 260 | 20 |
| 11PVPUVENTOMA250A | 250x266 | 3400 | 0.4 | 300 | 10 |
| 11PVPUVENTOMA300A | 300x316 | 4100 | 0.3 | 350 | 10 |
