PU WIND HOSE/Heavy - antistatic - food grade
ONLINE CATALOGUE › HOSES › Hoses for food grade abrasive fluids
Download sheet in pdf format

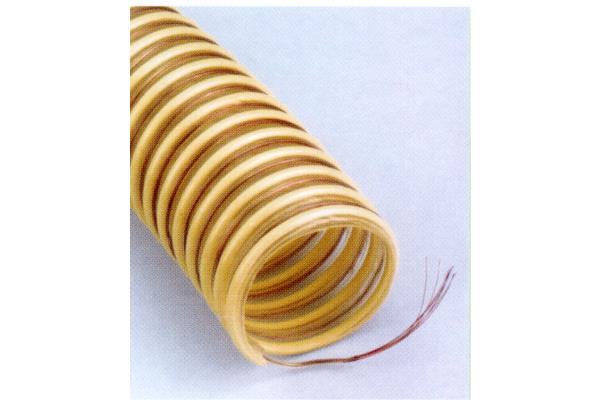

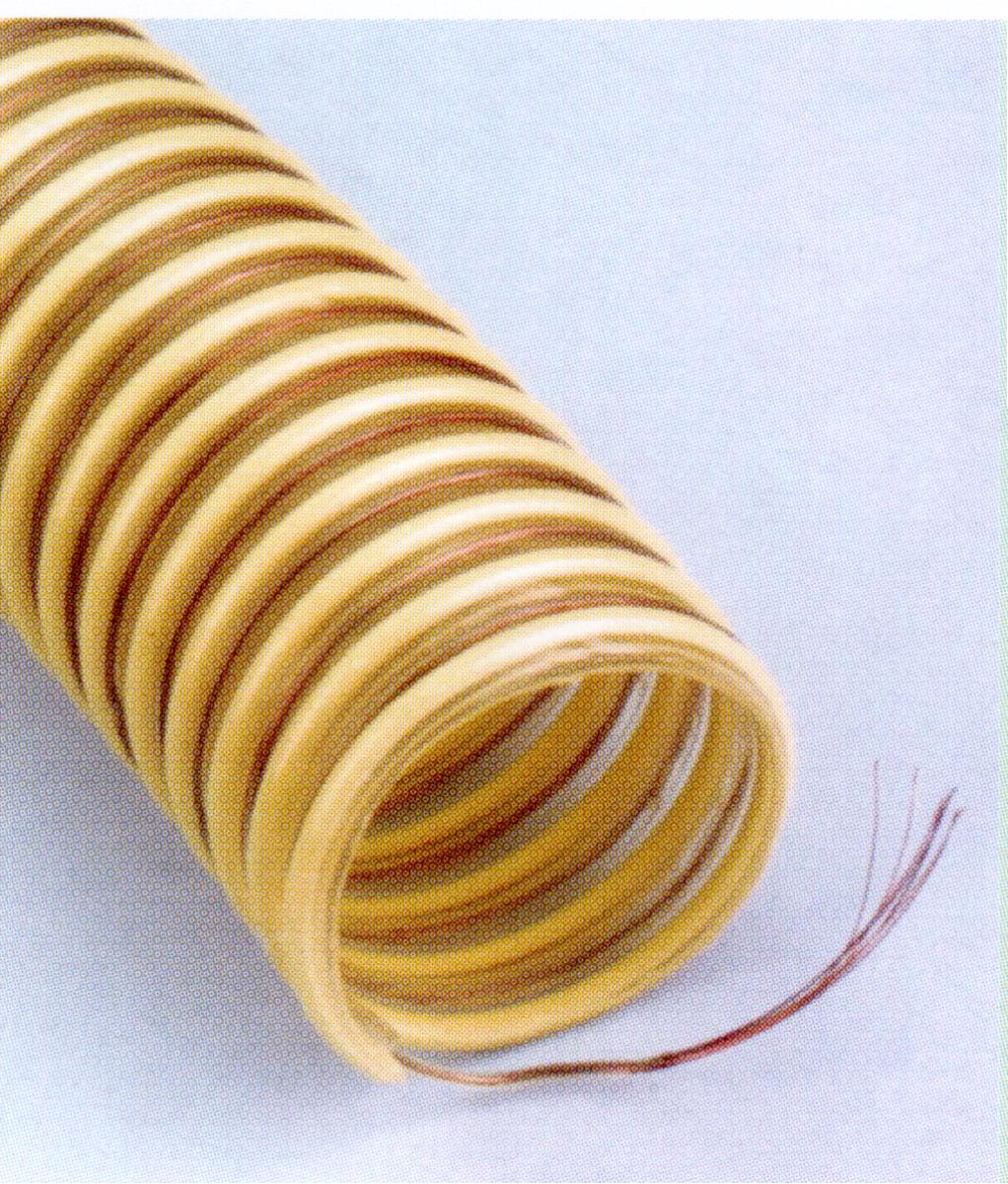

Transparent wall tube entirely in ether-based ELASTOLLAN TPU POLYURETHANE with reinforcement spiral in ivory-coloured shockproof rigid PVC. Perfectly smooth food grade interior.
With a corrugated external appearance, the tube is very light and flexible with notable resistance to abrasion and bending, complete with copper cable for electrical conductivity.
Polyurethane leaf thickness:
Ø 38 thickness 0.80mm
from Ø 40 to Ø 150 thickness 1.00mm
Resists many chemicals and microbial and hydrolytic attacks.
FDA approval CFR 21-Item 177.2600 [dry (d), aqueous (e) and fatty (f) foods]
EU Reg. 10/2011 approval (classes A, B, C, D2 and dry foods)
Suitable for the food industry for the transport of powders and dry abrasive substances, even hot ones up to a maximum temperature of +80° or up to -40°C.
Also available in the non-antistatic version (without incorporated copper wire)
With a corrugated external appearance, the tube is very light and flexible with notable resistance to abrasion and bending, complete with copper cable for electrical conductivity.
Polyurethane leaf thickness:
Ø 38 thickness 0.80mm
from Ø 40 to Ø 150 thickness 1.00mm
Resists many chemicals and microbial and hydrolytic attacks.
FDA approval CFR 21-Item 177.2600 [dry (d), aqueous (e) and fatty (f) foods]
EU Reg. 10/2011 approval (classes A, B, C, D2 and dry foods)
Suitable for the food industry for the transport of powders and dry abrasive substances, even hot ones up to a maximum temperature of +80° or up to -40°C.
Also available in the non-antistatic version (without incorporated copper wire)
| Code | Dimensions mm | Weight g/m | Depression mH2O | Radius of curvature mm | Rolls m |
|---|---|---|---|---|---|
| 11PVPUATPPA038A | 38x45 | 310 | 3 | 130 | 30 |
| 11PVPUATPPA040A | 40x47.2 | 350 | 3 | 140 | 30 |
| 11PVPUATPPA052A | 50.8x59.4 | 550 | 3 | 175 | 30 |
| 11PVPUATPPA055A | 55x58.6 | 590 | 3 | 190 | 30 |
| 11PVPUATPPA060A | 60x68.6 | 640 | 3 | 200 | 30 |
| 11PVPUATPPA063A | 63x72.1 | 670 | 3 | 230 | 30 |
| 11PVPUATPPA070A | 70x79.6 | 750 | 3 | 250 | 30 |
| 11PVPUATPPA760A | 76x85.8 | 810 | 2.5 | 270 | 30 |
| 11PVPUATPPA080A | 80x90.4 | 900 | 2.5 | 290 | 30 |
| 11PVPUATPPA090A | 90x100.8 | 1050 | 2.5 | 360 | 30 |
| 11PVPUATPPA100A | 100x111.8 | 1240 | 2.5 | 400 | 30 |
| 11PVPUATPPA110A | 110x122.2 | 1380 | 2.5 | 440 | 30 |
| 11PVPUATPPA120A | 120x132.2 | 1500 | 2.5 | 470 | 30 |
| 11PVPUATPPA127A | 127x139.2 | 1600 | 2.5 | 500 | 30 |
| 11PVPUATPPA150A | 151.5x164.7 | 2000 | 2 | 600 | 20 |
