Code: PUP-P AL

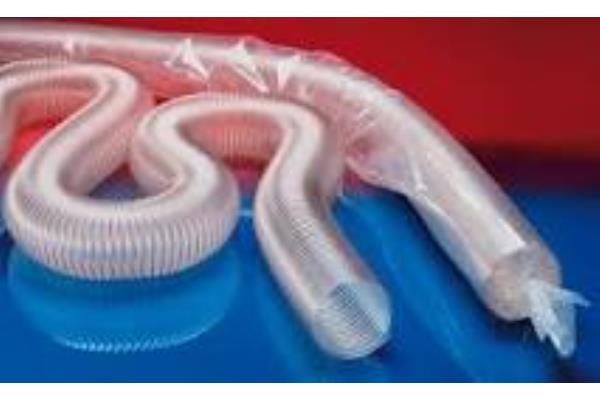

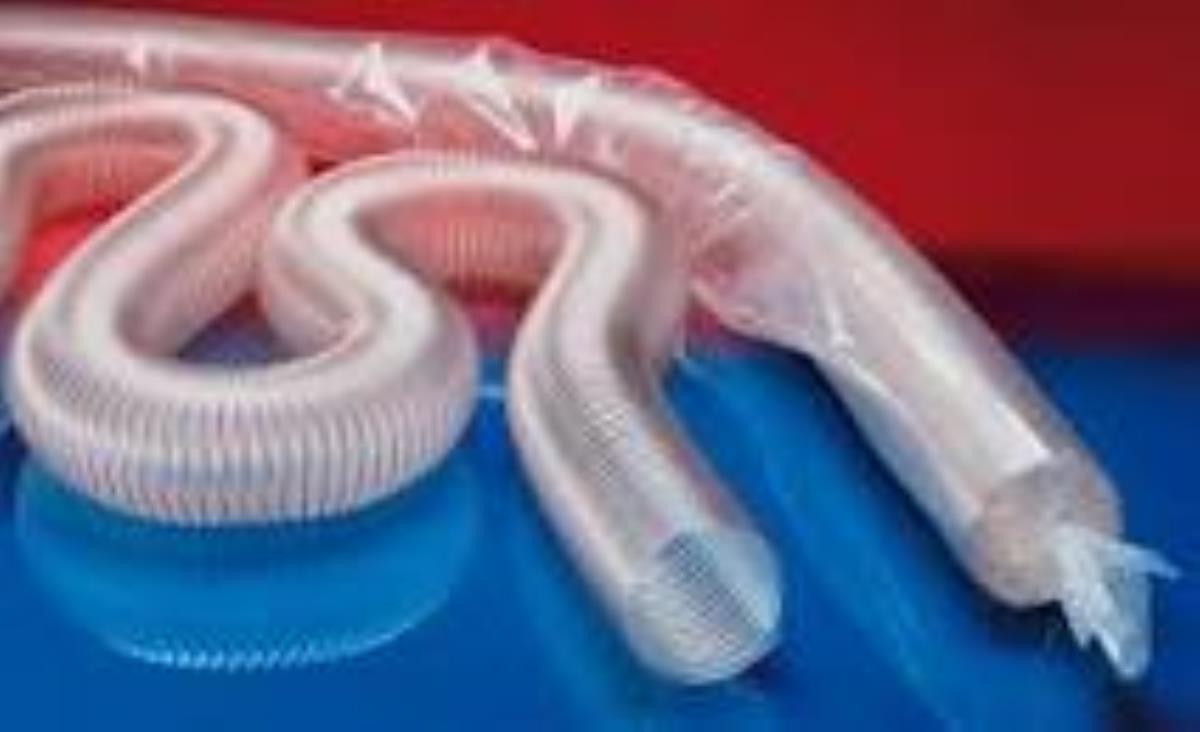

Flexible hose in anti-abrasive polyurethane, HEAVY duty, for applications
heavy-duty in the food and pharmaceutical industry resistant to microbes.
Good resistance to chemicals, industrial oils and hydrocarbons.
Polyurethane structure with a thickness of approximately 1.4/1.5mm, smooth inside with
Reinforcement spiral. Ideal for pneumatic conveying systems both under pressure
that depression of cereals, feed, sugar dosing systems, milk powder,
coffee, tea, flour, frozen foods.
Excellent resistance to atmospheric agents, ozone and UV rays
Transparent color. Smooth interior, particularly smooth, suitable for uses
heavy duty suction and delivery of dust, sawdust, shavings, textile fibres, paper.
Suitable for the passage of food products according to DDC
TECHNICAL FEATURES:
odorless and tasteless
resistant to microbes and hydrolysis
good resistance to chemicals, industrial oils and hydrocarbons
excellent cold flexibility
Production process according to GMP CE 2023/2006
RoHS compliant
REACH according to -> Technical information / technical / REACH
Admission to EU Regulation 10/2011, EC 1935/2004 and EU 2015/174
from an independent testing laboratory for the complete tube, polyurethane food grade: FDA 21 CFR 177.2600
Approval according to EU Regulation 10/2011 (food simulant E) and EC 1935/2004
TEMPERATURE RANGE : -40°C to 90°C briefly up to 125°C
CONSTRUCTION : Stainless steel wire spiral (INOX); Ether-based polyurethane wall, permanently antistatic; Wall thickness approximately 1.4 - 1.5 mm depending on the diameter; Standard packaging 10 meters, 15/20 on request.
This tube has a direction of operation identified by arrows marked on the tube along its entire length, they specify the directional direction of the flow.
diameter | diameter external | Pressure at 23°C | Depression DIN 26057 | Radius of curvature | Weight |
external |
mm | mm | bar | bar | mm | Kg/m |
13 | 20 | 4.50 | 1.00 | 14 | 0.14 |
16 | 23 | 4.42 | 1.00 | 15 | 0.16 |
20 | 27 | 4.25 | 1.00 | 17 | 0.23 |
22 | 29 | 3.90 | 1.00 | 18 | 0.25 |
25 | 32 | 3.47 | 1.00 | 20 | 0.28 |
30 | 40 | 3.60 | 1.00 | 25 | 0.42 |
32 | 42 | 3.40 | 1.00 | 26 | 0.44 |
35 | 45 | 3.12 | 1.00 | 28 | 0.48 |
38 | 48 | 3.90 | 1.00 | 29 | 0.52 |
40 | 50 | 2.76 | 1.00 | 30 | 0.54 |
45 | 55 | 2.47 | 1.00 | 33 | 0.60 |
50 | 60 | 2.23 | 1.00 | 35 | 0.66 |
55 | 65 | 2.04 | 1.00 | 38 | 0.72 |
60 | 70 | 1.88 | 1.00 | 40 | 0.78 |
63 | 75 | 1.74 | 1.00 | 43 | 0.84 |
70 | 81 | 1.62 | 1.00 | 62 | 0.98 |
75 | 86 | 1.52 | 1.00 | 66 | 1.05 |
80 | 91 | 1.42 | 1.00 | 69 | 1.11 |
90 | 101 | 1.27 | 0.89 | 76 | 1.25 |
100 | 111 | 1.15 | 0.95 | 83 | 1.49 |
110 | 121 | 1.05 | 0.78 | 90 | 1.63 |
115 | 126 | 1.00 | 0.71 | 94 | 1.68 |
120 | 131 | 0.96 | 0.65 | 97 | 1.77 |
127 | 136 | 0.92 | 0.60 | 101 | 1.84 |
130 | 141 | 0.89 | 0.56 | 104 | 1.91 |
140 | 151 | 0.82 | 0.48 | 111 | 2.03 |
150 | 161 | 0.77 | 0.56 | 118 | 2.41 |
160 | 171 | 0.72 | 0.49 | 125 | 2.56 |
165 | 176 | 0.70 | 0.046 | 129 | 2.64 |
180 | 191 | 0.64 | 0.39 | 139 | 2.87 |
200 | 213 | 0.58 | 0.35 | 156 | 3.12 |
250 | 263 | 0.46 | 0.21 | 191 | 3.88 |
300 | 313 | 0.39 | 0.19 | 226 | 5.16 |
