FOOD GRADE COPPER POLYURETHANE HOSE (PUR-PA) - 1.0



Download sheet in pdf format
Code: PUR-P-AL

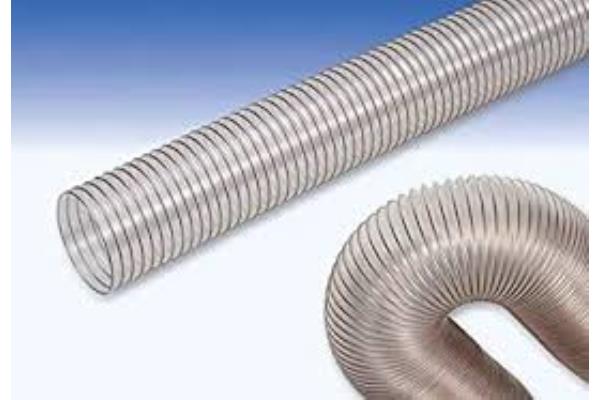

POLYURETHANE ETHER HOSE WITH COPPER SPIRAL (PUR-PA) MEDIUM - wall thickness 1.0mm
FOOD GRADE.
ON REQUEST IN ANTISTATIC VERSION < 10 9 O WITH STAINLESS STEEL SPIRAL.


Application

flexible hose for abrasive powder, loose material, granules and for gas in the food and pharmaceutical industries.
Rice, cereals, dry food, sugar, milk powder, coffee powder, tea, flour, frozen foods.
Can be used in depression, suction, as a dosing system in mixers, dryers, packaging machines, filling and emptying big-bags, mills. As an industrial, medium and heavy vacuum cleaner because it is highly resistant to abrasion.

REFERENCE STANDARDS:
- admission to EU Regulation 10/2011
- CE 1935/2004 and EU 2015/174 from an independent testing laboratory for the passage of food.
- FDA 21 CFR 177.2600 and 178.2010

Approval according to EU Regulation 10/2011 (food simulants A, B, C or E and D2) and EC 1935/2004
odorless and tasteless, resistant to microbes and hydrolysis, good resistance to chemicals, industrial oils and hydrocarbons, excellent cold flexibility.
Production process according to GMP CE 2023/2006.
Hardly flammable according to: UL94-HB
Compliant with RoHS REACH regulations

Temperature range -40°C to 90°C briefly up to 125°C.
Construction Tube with harmonic steel wire incorporated into the special polyurethane ether wall.
Wall thickness approx. 1.0 mm
STANDARD PACKAGE 10 meters other dimensions and lengths available on request

diameter
internal

mm
Overpressure
DIN 26057

Cafe
Empty
DIN 26057
Cafe
Radius of
curvature

mm
Weight


Kg/m
32 2,715 0.680 23 0.20
38 2,290 0.470 27 0.26
40 2,155 0.440 28 0.28
46 1,830 0.370 32 0.32
48 1,740 0.355 33 0.34
53 1,555 0.315 36 0.38
58 1,405 0.285 39 0.41
63 1,280 0.235 42 0.45
68 1,175 0.220 45 0.49
73 1,090 0.150 48 0.53
79 1.010 0.140 52 0.59
84 0.945 0.130 55 0.64
89 0.890 0.115 58 0.68
99 0.790 0.110 64 0.75
109 0.715 0.100 70 0.97
119 0.650 0.095 76 1.06
124 0.620 0.090 79 1.11
129 0.595 0.090 82 1.16
134 0.575 0.085 85 1.20
139 0.550 0.080 88 1.25
149 0.510 0.065 94 1.34
159 0.480 0.065 100 1.52
169 0.450 0.060 106 1.61
179 0.425 0.060 110 1.71
184 0.410 0.055 115 1.76
189 0.400 0.050 118 1.81
209 0.360 0.040 130 2.00
234 0.320 0.035 145 2.16
259 0.290 0.035 160 2.39
284 0.260 0.030 175 2.63
289 0.260 0.030 178 2.67
309 0.240 0.030 190 2.86
324 0.230 0.030 199 3.00
334 0.220 0.030 205 3.10
359 0.205 0.025 220 3.33
384 0.195 0.025 237 3.90
409 0.180 0.025 250 4.27
459 0.160 0.020 283 4.80
509 0.145 0.020 315 5.33
