ANTISTATIC LIQUID/PU FOOD HOSE



Download sheet in pdf format

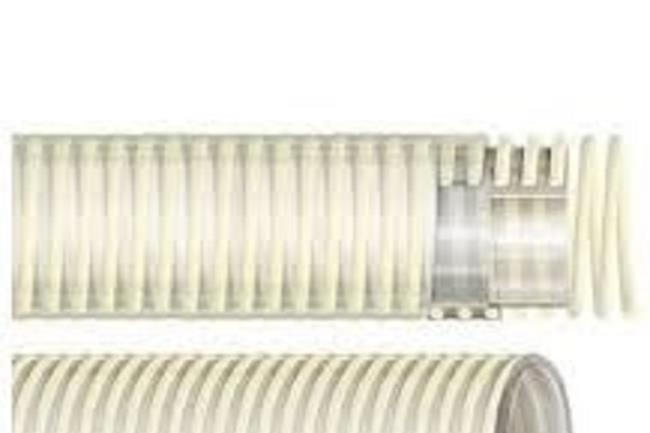

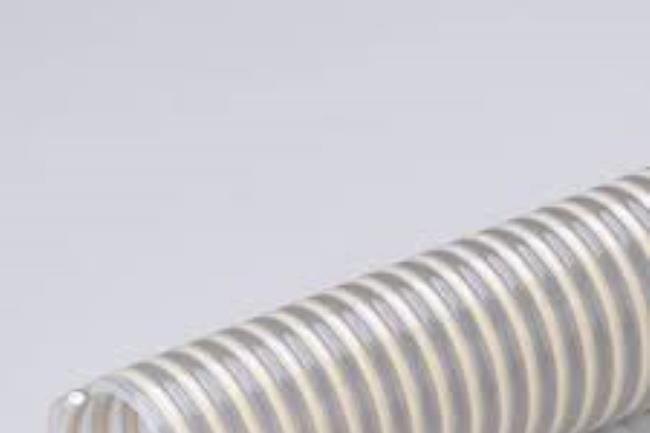

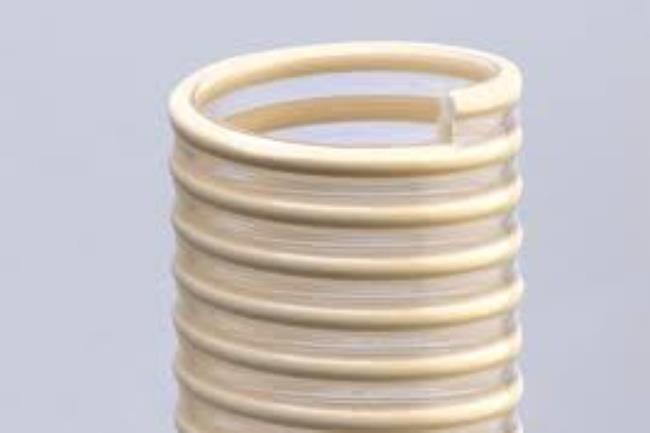

Transparent PVC hose. Smooth inner and outer surface.
Underlayer in FOOD GRADE POLYURETHANE based on ETHER with reinforcement spiral in rigid shock-proof IVORY-coloured PVC.
Tube with built-in conductive copper cord AVAILABLE ON REQUEST.
Ideal for the pneumatic transport of plastic granulate, especially neutral-coloured ones, and all dry abrasive products.
Tube compliant with European Regulation EU 10/2011 (CLASSES A, B, C, D2 and dry foods).
specifically designed for the suction and delivery of abrasive food products such as: powders and flours, freeze-dried foods, grains, food liquids, drinks with an alcohol concentration of up to 20%. Suitable for the passage of vegetable oil and fatty foods.
Operating temperature -10°C +60°C

PACKAGED AND SOLD EXCLUSIVELY IN 30 METER ROLL.





























 item
 Diameter
internal
OR
mm
 Thickness
maximum
wall OR
mm
 Weight
g/m
 Pressure
of work
bar
 Pressure
of explosion
bar
 Empty
m_H2O
 ray
curvature
mm
08SPBPUA0025 25.0 3.4 310 5 15 7 125
08SPBPUA0030 30.0 3.5 380 5 15 7 150
08SPBPUA0032 31.8 3.6 420 5 15 7 155
08SPBPUA0035 35.0 3.7 470 5 15 7 170
08SPBPUA0038 38.0 3.9 530 5 15 7 185
08SPBPUA0040 40.0 4.0 560 5 15 7 195
08SPBPUA0045 45.0 4.3 660 5 15 7 215
08SPBPUA0050 50.0 4.7 790 5 15 7 235
08SPBPUA0052 51.0 4.7 800 5 15 7 235
08SPBPUA0055 55.0 4.8 890 5 15 7 255
08SPBPUA0057 57.0 4.8 930 5 15 7 265
08SPBPUA0060 60.0 4.8 970 5 15 7 275
08SPBPUA0063 63.5 4.8 1040 5 15 7 290
08SPBPUA0065 65.0 4.8 1060 5 15 7 290
08SPBPUA0070 70.0 5.1 1180 5 15 7 320
08SPBPUA0076 76.2 5.4 1380 5 15 7 340
08SPBPUA0080 80.0 5.7 1510 4 12 7 365
08SPBPUA0090 90.0 6.0 1830 4 12 7 420
08SPBPUA00100 100 6.5 2170 4 12 7 470
08SPBPUA0102 102 6.5 2210 4 12 7 470
08SPBPUA0110 110 7.0 2590 4 12 6 520
