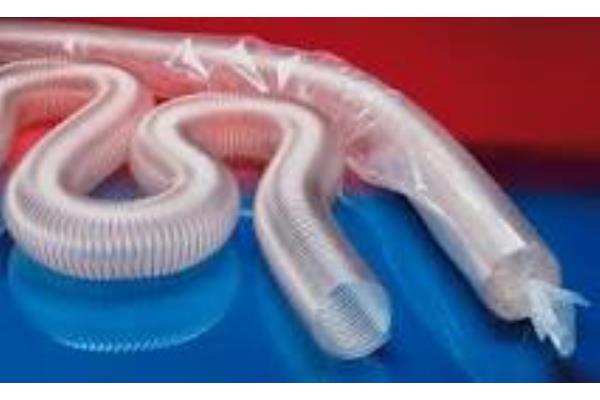

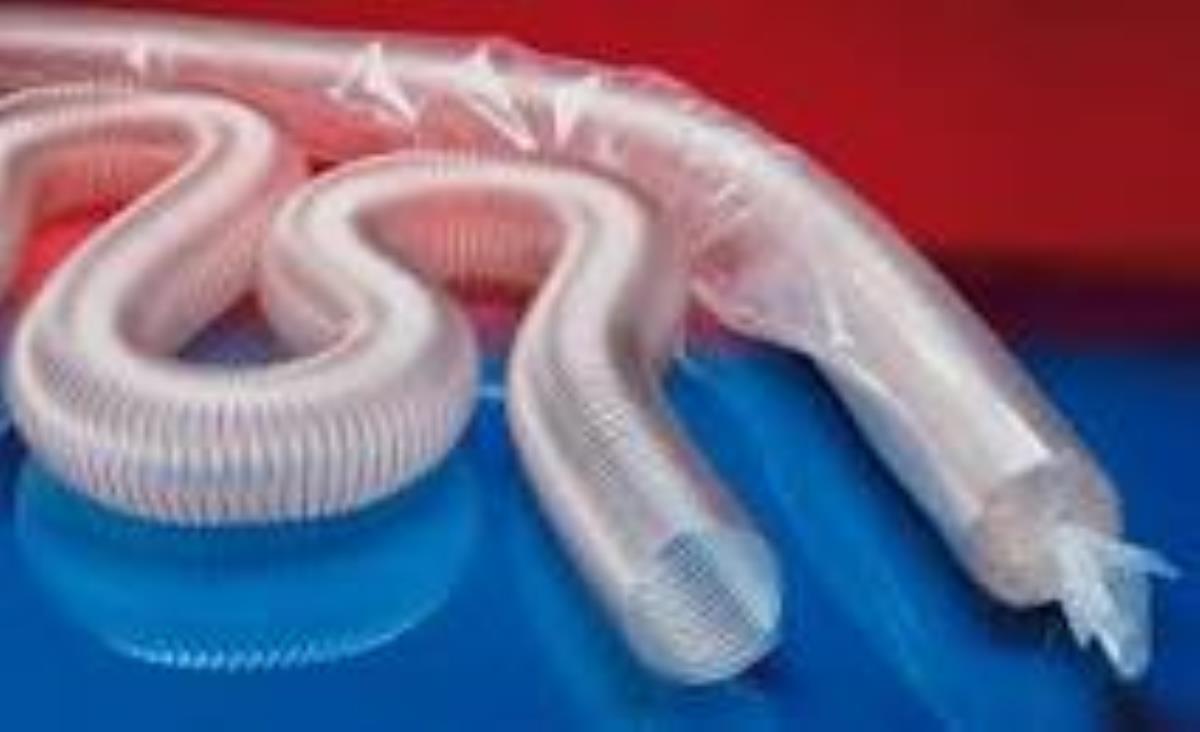

LIGHTWEIGHT FOOD GRADE POLYURETHANE HOSE (PU/L) - S:0.40
Code: PUL - AL
Hose for gas and abrasive dust, textile fibers, food industry, pharmaceutical industry, rice, dry food, cereal products, sugar, milk powder, coffee powder, tea, flour, mixed frozen foods. Dust collection systems, filtering systems, oil mist extraction.
Super light construction, highly flexible and compressible up to 3:1. Abrasion resistant
Suitable according to:
- FDA 21 CFR 177.2600 E178.2010
- EU 10/10/2011 EC 1935/2004 and subsequent EU 2015/174 (food simulants A,B,C or E and D2)
- Resistant to microbes and hydrolysis

Resistant to microbes and hydrolysis, odorless and tasteless, good resistance to chemicals, industrial oils and hydrocarbons
RoHS REACH compliant according to -> Technical information / technical / REACH
Temperature range -40°C to 90°C - briefly up to 125°C
Construction:
ETHER polyurethane film tube armed with harmonic steel wire embedded in the wall
Wall thickness approx. 0.4 mm
Delivery variants Further dimensions and lengths available on request transparent (standard)
Øi
mm | Pressure of exercise bar | Depression
bar | Radius of curvature mm | weight
g/m |
---|
51 | 0.86 | 0.49 | 30 | 225 |
60 | 0.71 | 0.41 | 36 | 300 |
70 | 0.61 | 0.35 | 42 | 360 |
76 | 0.57 | 0.33 | 45 | 380 |
80 | 0.54 | 0.30 | 48 | 410 |
90 | 0.48 | 0.27 | 53 | 440 |
102 | 0.43 | 0.25 | 60 | 460 |
110 | 0.39 | 0.22 | 66 | 500 |
120 | 0.36 | 0.21 | 72 | 540 |
125 | 0.34 | 0.20 | 75 | 590 |
130 | 0.33 | 0.19 | 78 | 640 |
140 | 0.31 | 0.18 | 84 | 670 |
152 | 0.29 | 0.16 | 90 | 710 |
160 | 0.27 | 0.15 | 96 | 760 |
180 | 0.24 | 0.14 | 107 | 810 |
200 | 0.21 | 0.12 | 120 | 950 |
225 | 0.19 | 0.11 | 135 | 1040 |
250 | 0.17 | 0.10 | 150 | 1130 |
300 | 0.14 | 0.08 | 180 | 1550 |
350 | 0.12 | 0.07 | 210 | 1820 |
400 | 0.10 | 0.06 | 248 | 2100 |
450 | 0.09 | 0.05 | 270 | 2410 |
500 | 0.06 | 0.03 | 300 | 2500 |
