FLEX HOSE 300 Self-extinguishing
ONLINE CATALOGUE › HOSES › Gas and hot fume suction pipes
Download sheet in pdf format
Flexible hose made of fiberglass fabric coated with SELF-EXTINGUISHING silicone, reinforced by an internal spiral of harmonic steel wire, external sewing cord in fiberglass. Very flexible, light and with great axial compressibility of approximately 30%

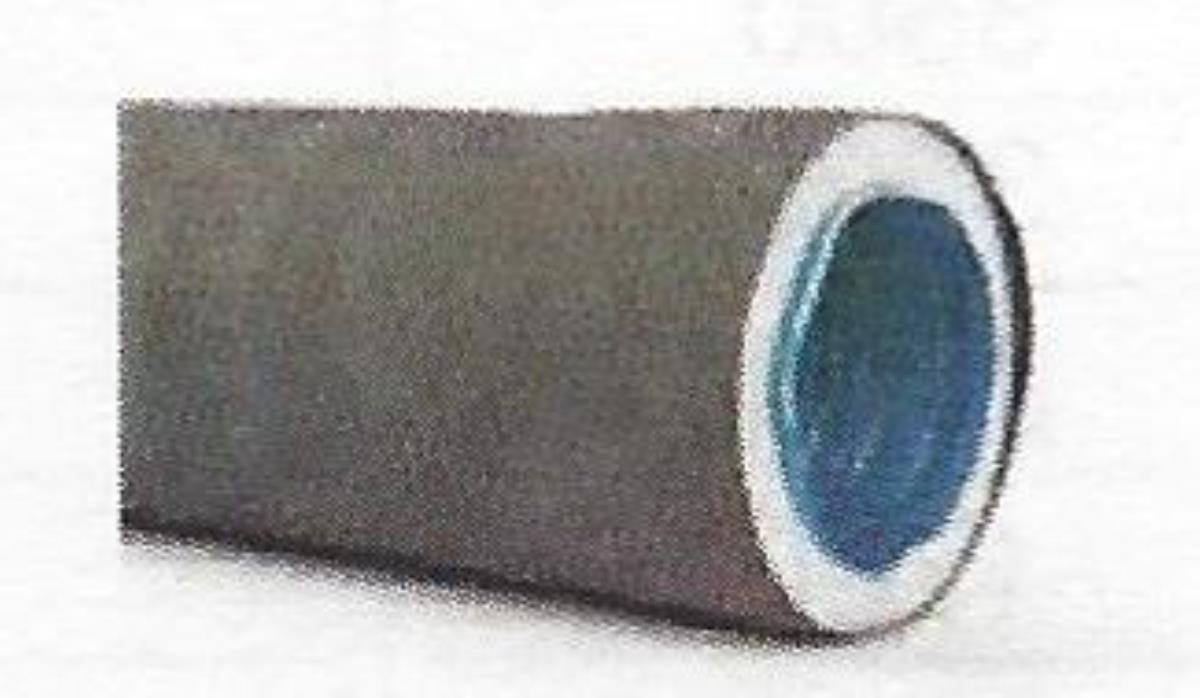

Color LIGHT BLUE (the insulated version is shown)
Suitable for joining high temperature gas passage ducts, engine fume extraction, electronic unit cooling, welding systems, vehicle cabin heating systems.
Operating temperature: -60° (-73°F) +270° (+520°F)
can tolerate up to 300° (572°F) for short periods of time
Maximum pressure: approximately 3 times the operating pressure
Standard length 4 meters
REACTION TO FIRE: EN 4545-2:2013 - UNI CEI 11170 - 3/2005
On request: terminal sleeves, insulation with expanded MELAMINE and vapor barrier in black NEOPRENE rubber
Data referred to T=20° C, room temperature. Control pressure equal to operating pressure for 1.5 Maximum pressure equal to operating pressure for 3
Color LIGHT BLUE (the insulated version is shown)
Suitable for joining high temperature gas passage ducts, engine fume extraction, electronic unit cooling, welding systems, vehicle cabin heating systems.
Operating temperature: -60° (-73°F) +270° (+520°F)
can tolerate up to 300° (572°F) for short periods of time
Maximum pressure: approximately 3 times the operating pressure
Standard length 4 meters
REACTION TO FIRE: EN 4545-2:2013 - UNI CEI 11170 - 3/2005
On request: terminal sleeves, insulation with expanded MELAMINE and vapor barrier in black NEOPRENE rubber
| Code item | Dimensions Ø mm | Operating pressure bar | Vacuum bar | Curvature radius m | Weight gr/m |
|---|---|---|---|---|---|
| 11SV300ATS00025 | 25 | 1.6 | 5100 | 8 | 120 |
| 11SV300ATS00038 | 38 | 1.3 | 5000 | 12 | 168 |
| 11SV300ATS00051 | 51 | 1,2 | 4300 | 16 | 250 |
| 11SV300ATS00063 | 63 | 1.1 | 4000 | 20 | 300 |
| 11SV300ATS00076 | 76 | 1.1 | 3400 | 25 | 410 |
| 11SV300ATS00089 | 89 | 1.0 | 3000 | 29 | 490 |
| 11SV300ATS00095 | 95 | 0.9 | 2800 | 33 | 550 |
| 11SV300ATS00102 | 102 | 0.9 | 2600 | 35 | 650 |
| 11SV300ATS00114 | 114 | 0.9 | 2200 | 40 | 720 |
| 11SV300ATS00127 | 127 | 0.8 | 1700 | 46 | 800 |
| 11SV300ATS00152 | 152 | 0.7 | 1400 | 50 | 980 |
| 11SV300ATS00180 | 178 | 0.6 | 1100 | 60 | 1190 |
| 11SV300ATS00203 | 203 | 0.5 | 700 | 68 | 1330 |
| 11SV300ATS00254 | 254 | 0.4 | 450 | 100 | 1650 |
| 11SV300ATS00305 | 305 | 0.1 | 300 | 116 | 2000 |
