Rubber VACUUM CLEANER HOSE
ONLINE CATALOGUE › HOSES › Flexible rubber hoses for passage of industrial abrasives
Download sheet in pdf format

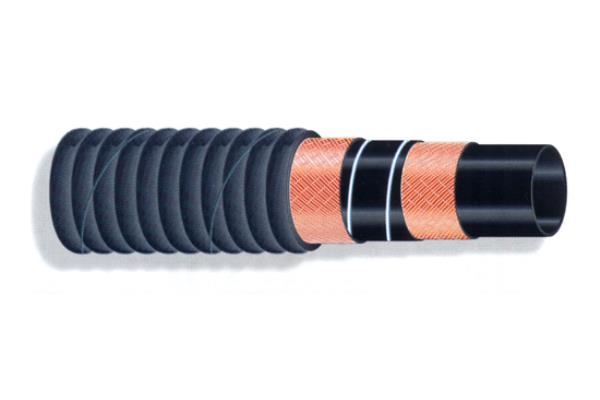

Lightweight rubber hose, abrasion-resistant smooth black lightweight rubber tube, with built-in steel spiral and textile inserts.
Wavy anti-abrasive black cover with canvas impression.
On request in corrugated form with square external corrugation for greater flexibility. Sleeves at the ends. Size of use.
Use:
Hose for suction-light delivery of air mixed with dust and welding fumes
Operating temperature: -40° +80°C
Maximum operating pressure 1 bar, safety coefficient 3.
Wavy anti-abrasive black cover with canvas impression.
On request in corrugated form with square external corrugation for greater flexibility. Sleeves at the ends. Size of use.
Use:
Hose for suction-light delivery of air mixed with dust and welding fumes
Operating temperature: -40° +80°C
Maximum operating pressure 1 bar, safety coefficient 3.
| Code | Diameter mm | Curvature radius mm | Aspiration Cafe | Weight Kg/m | packages m |
|---|---|---|---|---|---|
| 11GVASPIR0025 | 25 | 100 | 0.50 | 0.35 | 40 |
| 11GVASPIR0030 | 32 | 120 | 0.50 | 0.40 | 40 |
| 11GVASPIR0035 | 35 | 140 | 0.50 | 0.46 | 40 |
| 11GVASPIR0040 | 40 | 160 | 0.50 | 0.52 | 40 |
| 11GVASPIR0045 | 45 | 180 | 0.50 | 0.58 | 40 |
| 11GVASPIR0050 | 50 | 200 | 0.40 | 0.64 | 40 |
| 11GVASPIR0060 | 60 | 300 | 0.40 | 0.85 | 40 |
| 11GVASPIR0070 | 70 | 350 | 0.40 | 0.99 | 40 |
| 11GVASPIR0075 | 75 | 375 | 0.30 | 1.06 | 40 |
| 11GVASPIR0080 | 80 | 400 | 0.30 | 1.15 | 40 |
| 11GVASPIR0090 | 90 | 450 | 0.30 | 1.30 | 40 |
| 11GVASPIR0100 | 100 | 500 | 0.30 | 1.45 | 40 |
| 11GVASPIR0110 | 110 | 550 | 0.20 | 1.67 | 40 |
| 11GVASPIR0120 | 120 | 600 | 0.20 | 2.70 | 40 |
| 11GVASPIR0125 | 125 | 625 | 0.20 | 2.80 | 40 |
| 11GVASPIR0152 | 152 | 830 | 0.20 | 3.40 | 20 |
| 11GVASPIR0203 | 203 | 1200 | 0.10 | 4.50 | 12 |
| 11GVASPIR0254 | 254 | 1500 | 0.10 | 5.50 | 12 |
