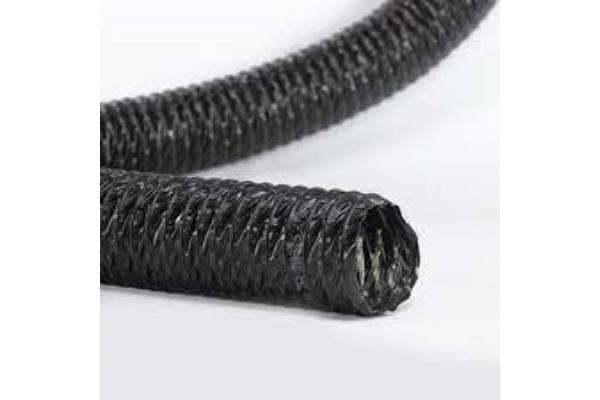

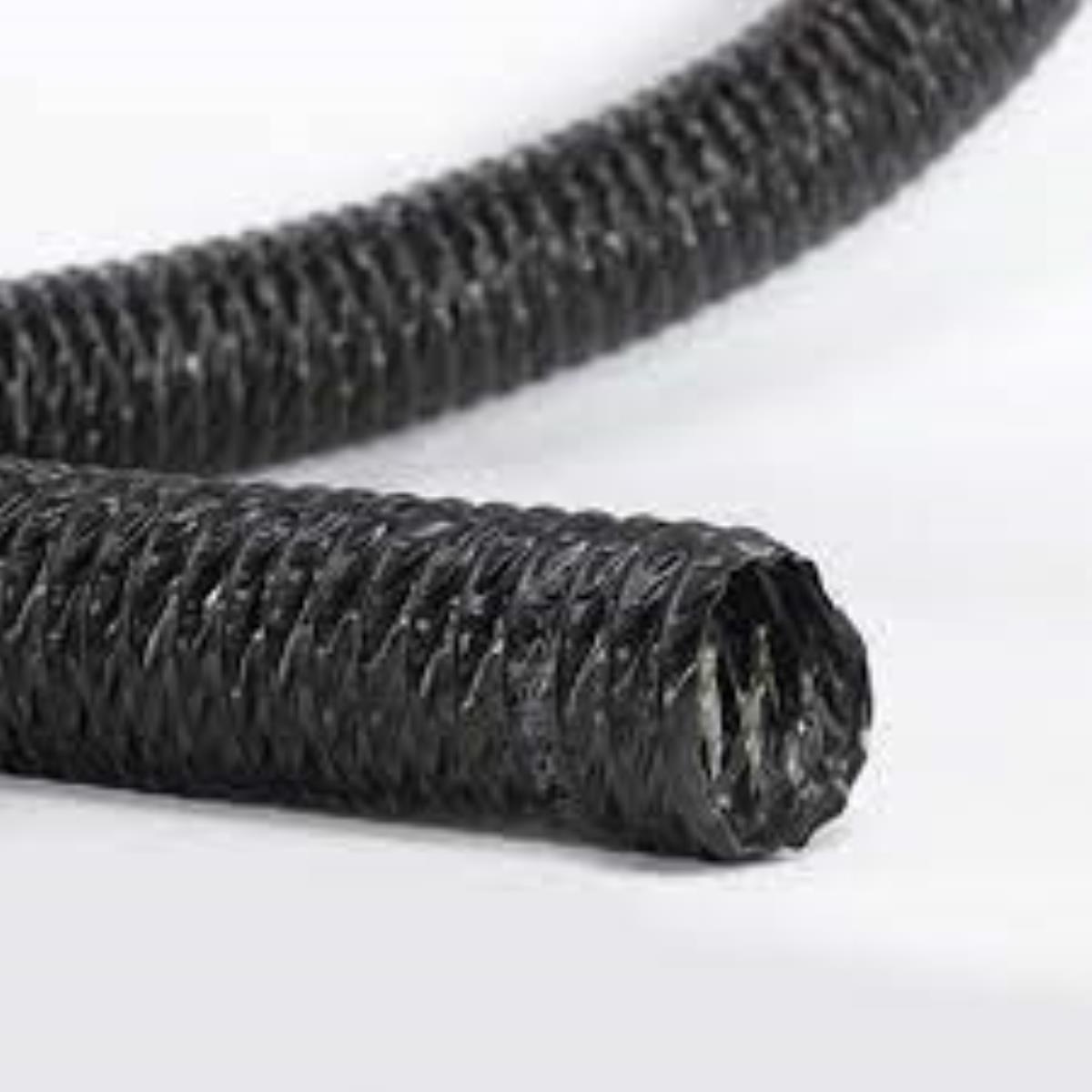

V100 FV black in fiberglass

ONLINE CATALOGUE › HOSES › Flexible pipes for ventilation or cold air intakes

Flexible hose made of glass fiber fabric coated with PVC on both sides and spiral incorporated in harmonic wire. The special design allows use in all air suction and ventilation installations even with moving parts.

CHARACTERISTICS

COLOR : Black
SIZES : 10 m. standard (up to 20 m. on request)
REACTION TO FIRE : Class M1 (NF P92 503), class 1 (DM 26/06/84) + (DM 03/01/01)
TEMPERATURES FOR USE : -20°C +90°C (+120°C peaks)
BENDING RADIUS : R = 0.7 x Ø
AXIAL COMPRESSIBILITY : 8:1

Contributes to obtaining credits from the major international building sustainability rating systems

DIAMETER mm	PRESSURE OF EXERCISE bar	DEPRESSION OF EXERCISE bar	RADIUS OF CURVATURE mm	WEIGHT g/m
40	0.90	0.24	25	120
51	0.80	0.20	35	145
60	0.80	0.16	42	170
70	0.70	0.14	49	198
80	0.60	0.10	56	227
100	0.50	0.09	70	285
120	0.50	0.08	85	342
130	0.40	0.08	92	370
150	0.25	0.06	105	427
160	0.20	0.06	110	527
180	0.20	0.06	130	590
200	0.20	0.05	140	660
250	0.10	0.04	175	825
300	0.06	0.03	210	990
350	0.05	0.02	245	1155
400	0.04	0.01	280	1320
450	0.03	0.01	315	1485
500	0.02	0.01	350	1650
550	0.02	0.01	385	1820
600	0.01	0.01	420	1980
