ANTISTATIC AGILITY HOSE
ONLINE CATALOGUE › HOSES › Flexible pipes for ventilation or cold air intakes
Download sheet in pdf format
Product description

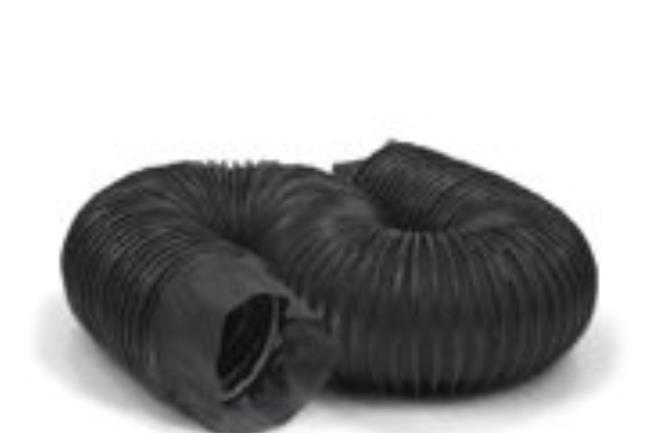

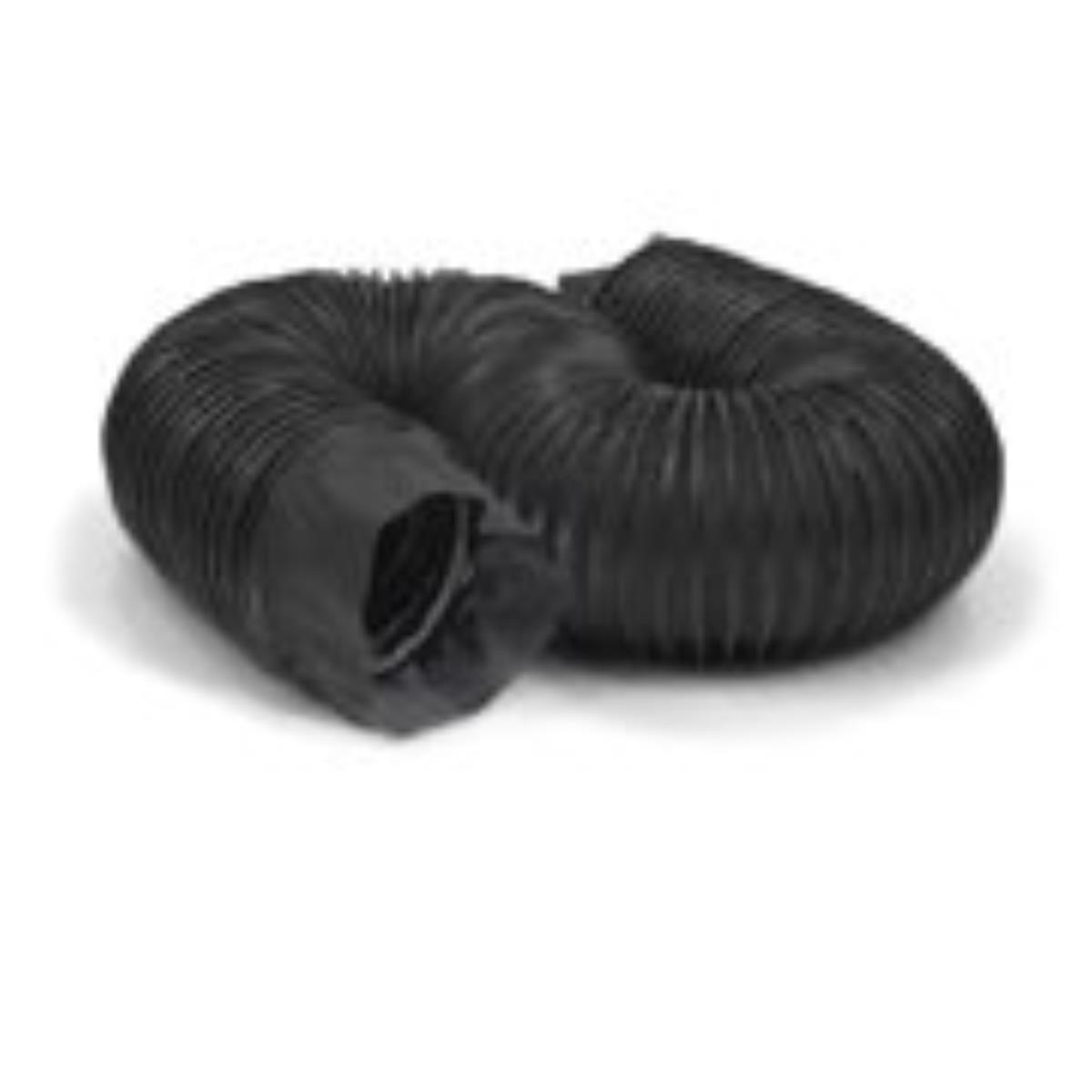

Flexible hose made of colored PVC-coated polyester fabric
Heat-welded BLACK, with external metal spiral covered with a black ribbon. Ends with smooth sleeves with reinforced wall without metal spiral. Interior perfectly smooth when stretched. High tensile strength for seam construction.
Self-extinguishing according to DIN 75200 standards.
The Antistatic Surface with low Resistivity<100 M Oxm makes it suitable for use even in environments subject to ATEX regulations
Characteristics:
Self-extinguishing according to DIN 75200 standards
Operating temperature: – 20° +80° C.
Curvature radius 7 times the diameter.
Compressibility ratio 7:1
Production diameters from 150 to 1000.
Standard lengths: 5 - 7.5 – 10 metres, others on request.
Accessories on request:
Reduced wheelbase

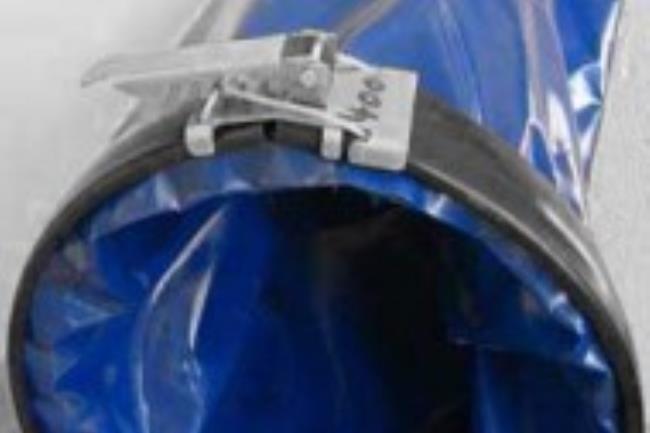

Ends reinforced by inserted rigid rings
Sewn metal eyelets for passage to the ground

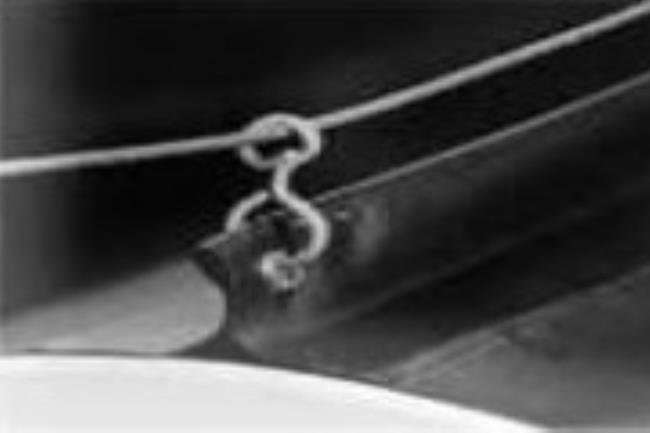

Cables suspended via hooks and rings.
Ideal for the conduction of air at high speed, in an ATEX environment, suction of toxic gases such as solvents and flammable vapors from underground tanks or tanks. In training long-haired dogs.
Flexible hose made of colored PVC-coated polyester fabric
Heat-welded BLACK, with external metal spiral covered with a black ribbon. Ends with smooth sleeves with reinforced wall without metal spiral. Interior perfectly smooth when stretched. High tensile strength for seam construction.
Self-extinguishing according to DIN 75200 standards.
The Antistatic Surface with low Resistivity<100 M Oxm makes it suitable for use even in environments subject to ATEX regulations
Characteristics:
Self-extinguishing according to DIN 75200 standards
Operating temperature: – 20° +80° C.
Curvature radius 7 times the diameter.
Compressibility ratio 7:1
Production diameters from 150 to 1000.
Standard lengths: 5 - 7.5 – 10 metres, others on request.
Accessories on request:
Reduced wheelbase
Ends reinforced by inserted rigid rings
Sewn metal eyelets for passage to the ground
Cables suspended via hooks and rings.
Ideal for the conduction of air at high speed, in an ATEX environment, suction of toxic gases such as solvents and flammable vapors from underground tanks or tanks. In training long-haired dogs.
| diameter nominal mm | Ø wire mm | Weight Kg/m | Depression Bar | Pressure maximum Bar |
|---|---|---|---|---|
| 200 | 2.5 | 1.20 | 0.55 | 0.05 |
| 300 | 2.5 | 1.44 | 0.35 | 0.03 |
| 400 | 4.0 | 2.05 | 0.25 | 0.03 |
| 500 | 5.0 | 3.30 | 0.20 | 0.03 |
| 600 | 5.0 | 4.50 | 0.17 | 0.02 |
| 700 | 6.0 | 5.60 | 0.15 | 0.02 |
| 800 | 6.0 | 6.80 | 0.13 | 0.01 |
| 900 | 6.0 | 8.40 | 0.11 | 0.01 |
| 1000 | 6.0 | 10.0 | 0.10 | 0.01 |
